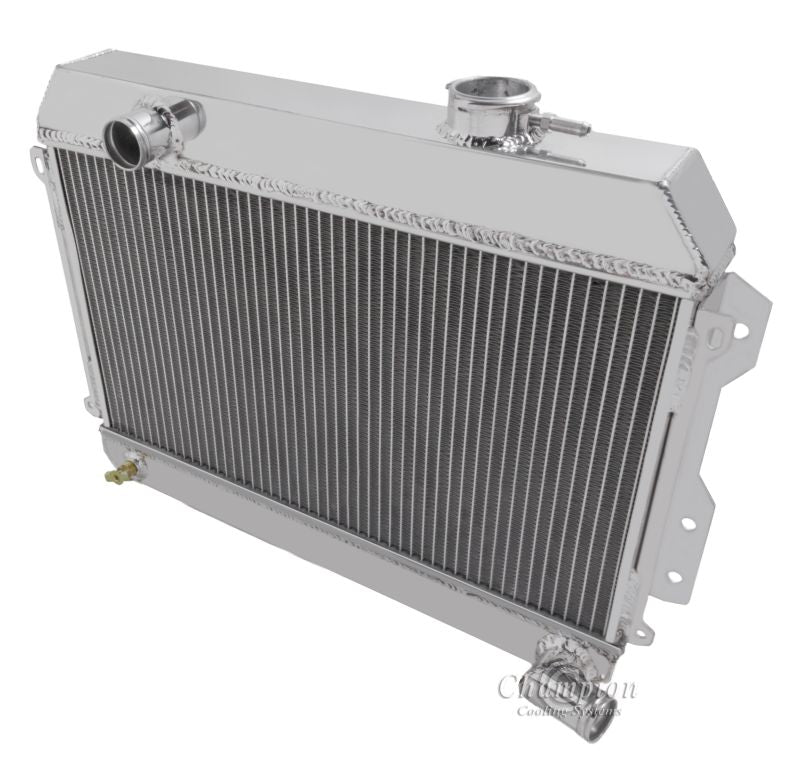

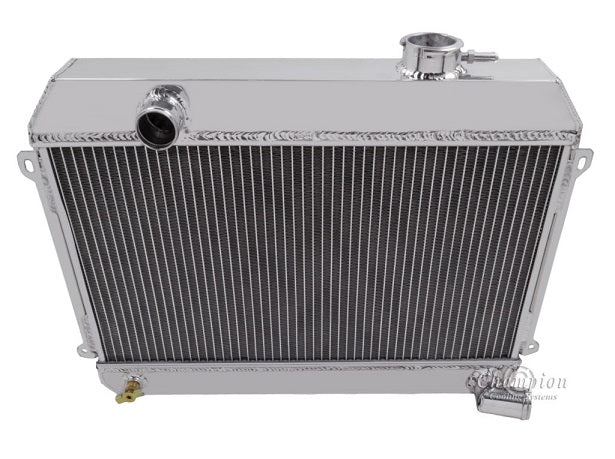

MC487 4 Row

Champion All Aluminum Radiator
4-Row Core | Cools up to 500hp
THIS RADIATOR IS TOO THICK
FOR STOCK APLICATIONS

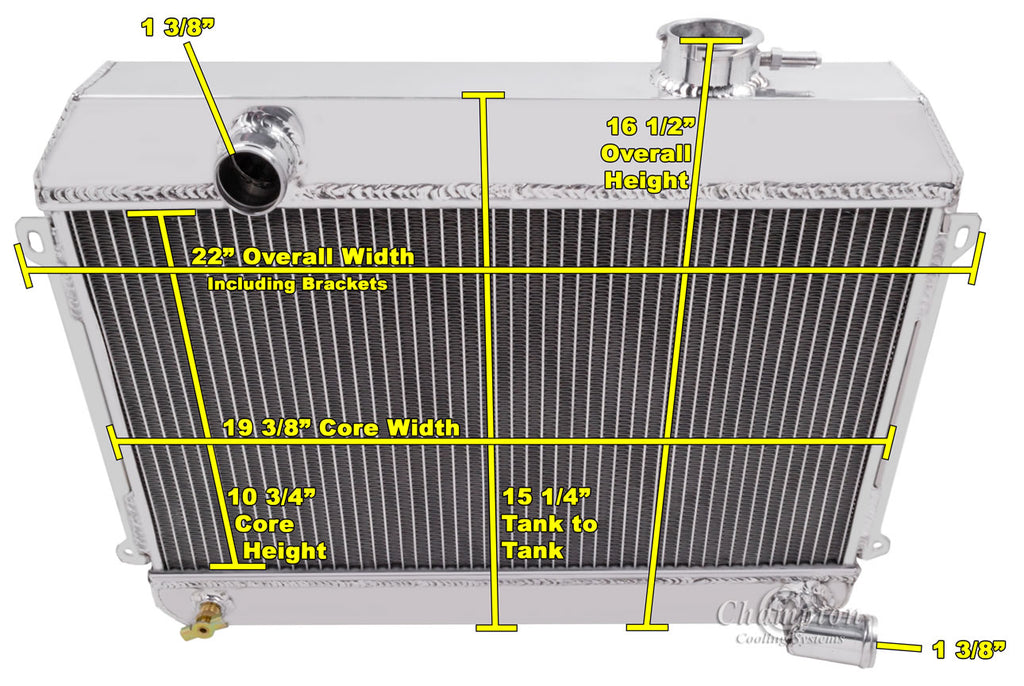

MC487 Radiator Dimensions:
Total: 16.5" tall (w/ cap) x 22" wide (incl brackets) x 3.2" thick
Core: 10.63" tall x 19.36" wide x 2.75" thick
Inlet: 1.38" driver side
Outlet: 1.38" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler NOT included
