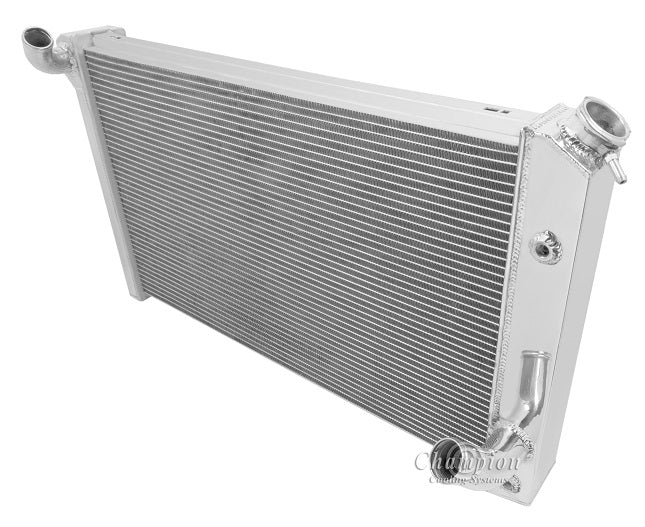

MC478-478FS12FSP 4 Row Combo

Champion All Aluminum Radiator Plus

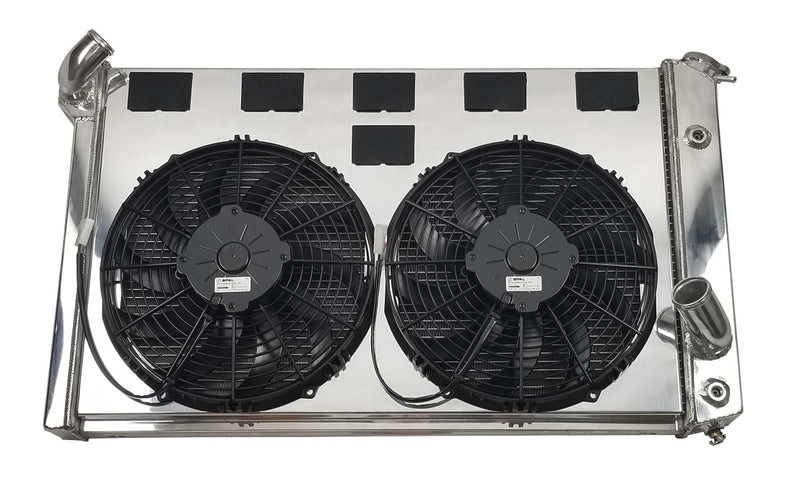

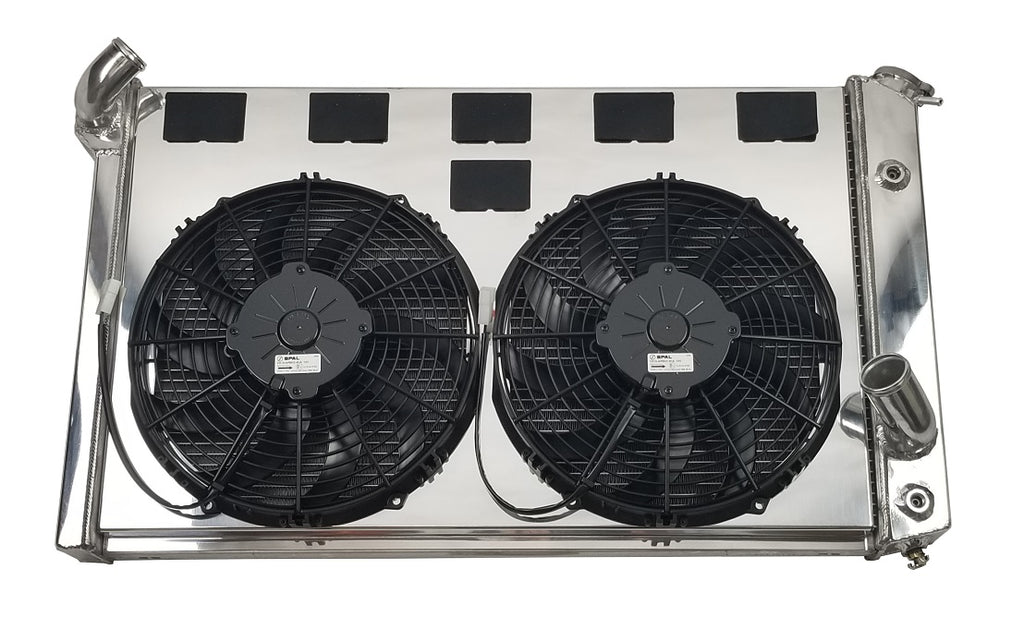

Ledfoot Racing Shroud & 2-12" SPAL 1522 Fans
4-Row Core | Cools 800hp

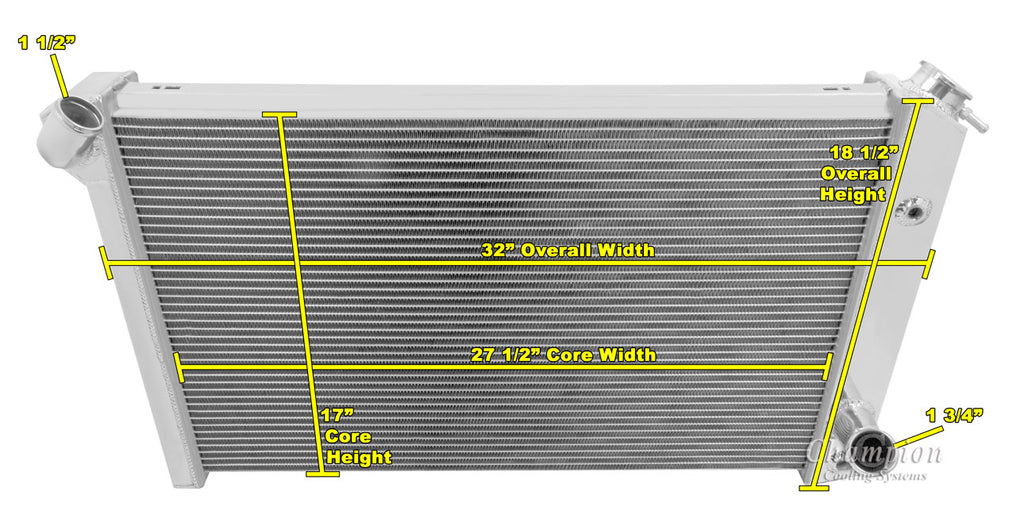

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 32.5" wide (top) 31.5"(bottom)
Core: 16.5" tall x 27.5" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.18" thick
Tubes: 0.63" thick

Saddle Mounted

Shroud includes (6) Rubber Flaps for Better High Speed Cooling
Transmission Cooler included (1/2- 20 STRAIGHT THREAD)
13 lb. Radiator Cap included
