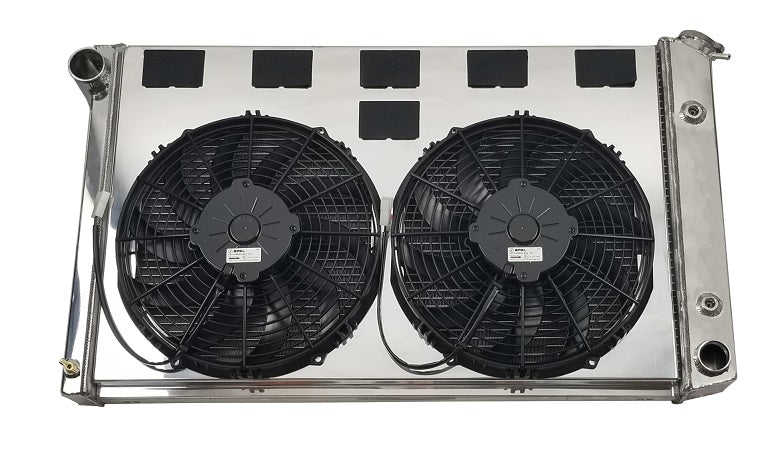

MC477-477FS12FSP 4 Row Combo

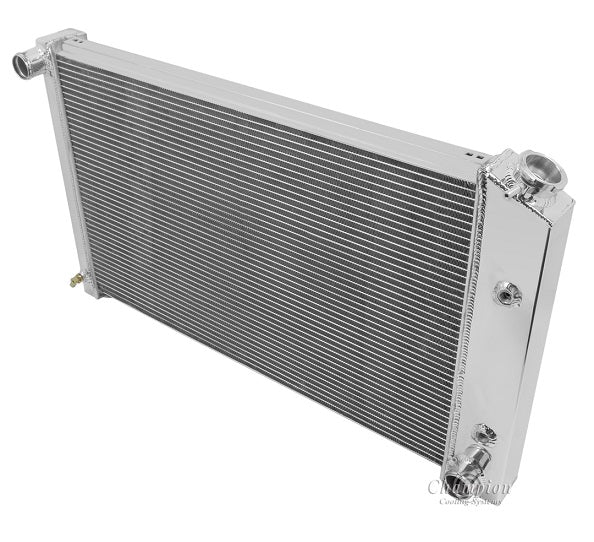

Champion All Aluminum Radiator PLUS
Ledfoot Racing Shroud & 2-12" SPAL-1522 Fans
4-Row Core: Polished Tanks | 850hp Rating
NOTE: this shroud is not part of the radiator mounting system.
Installation modifications may be necessary.

Radiator Dimensions:
Total: 19.5" tall x 32" wide
Core: 17" tall x 27.5" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick
Total Thickness: 6" (5" between fan motors)

Saddle Mounted

(6) Rubber Flaps for High Speed Air FLow Included
13 lb. Radiator Cap included
Transmission Cooler Included (1/2- 20 STRAIGHT THREAD)
