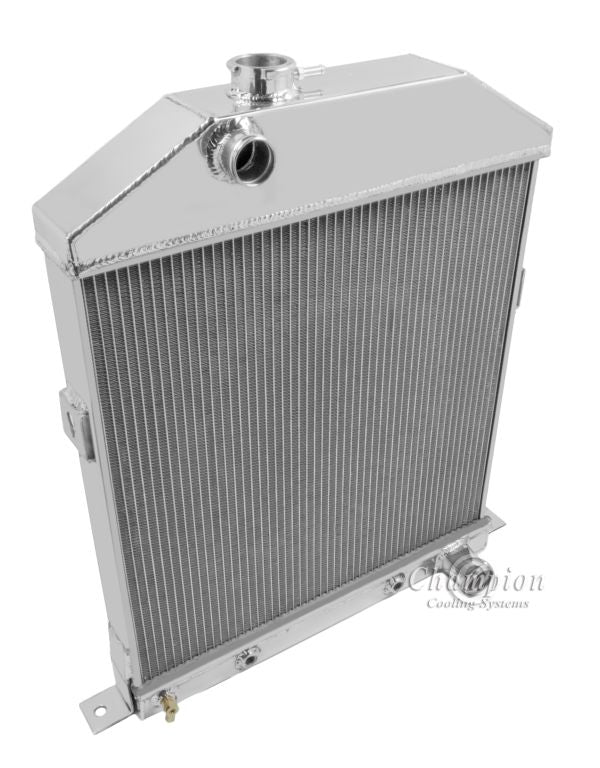

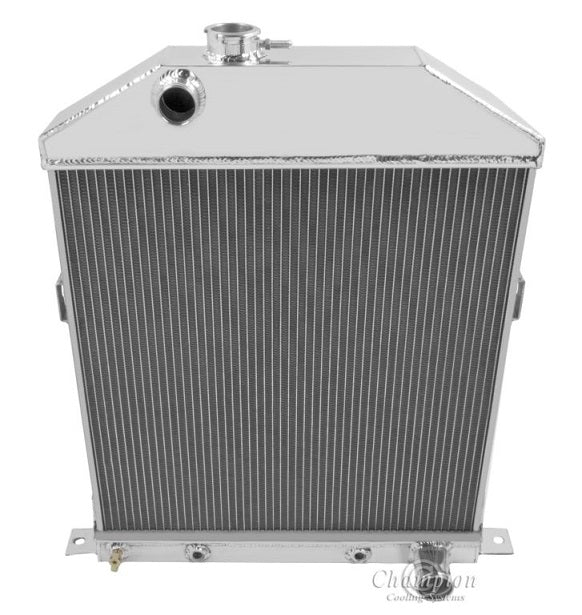

MC46CH 4 Row

All Aluminum Champion Radiator
4-Row Core | Cools up to 650hp
For Chevy Engines

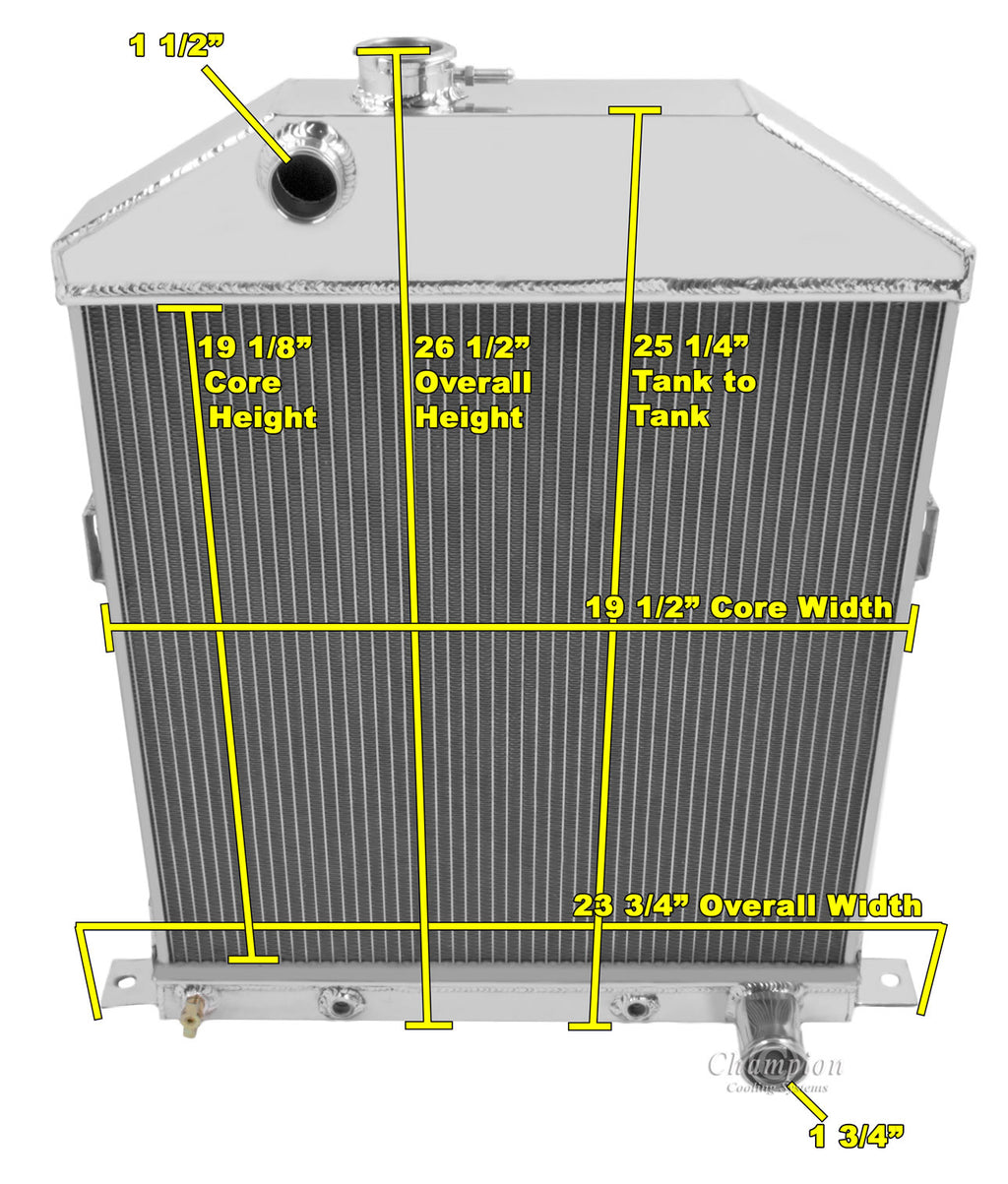

Radiator Dimensions:
Total: 26.5" tall x 23.75" wide (lower bracket)
Core: 19.88" tall x 19.75" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.75" thick

Flange Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)

When using electric fans:
One 16" fan recommended for this core size
