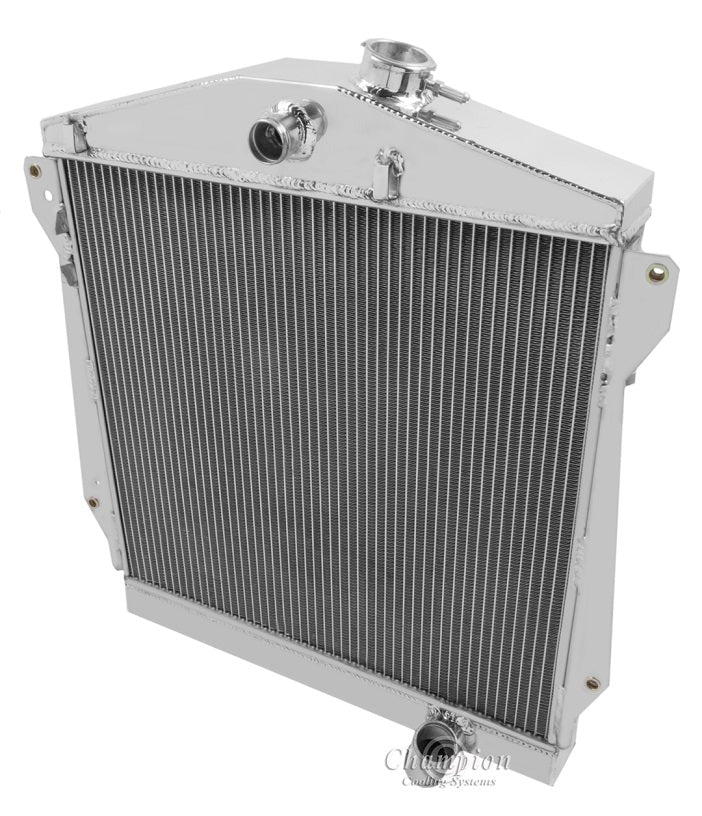

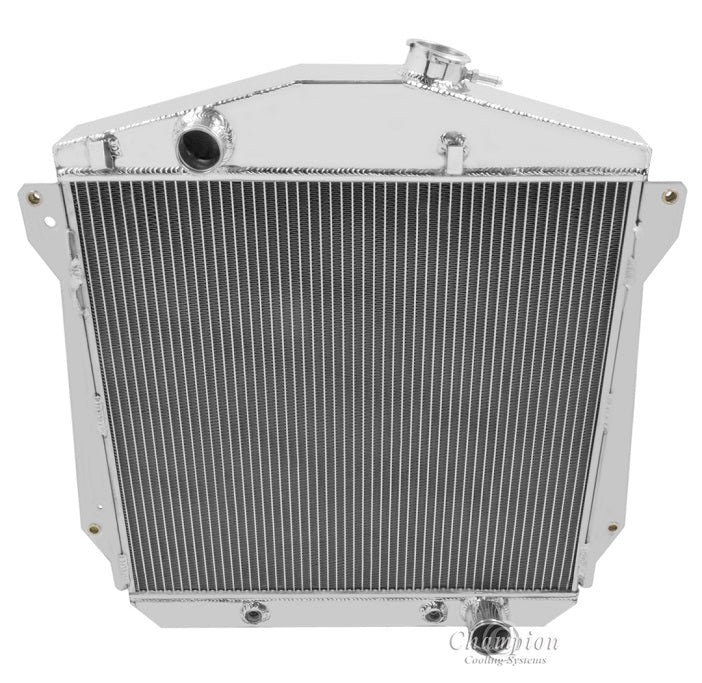

MC4348CH 4 Row V8's

Champion All Aluminum Radiator
This is the V8 conversion radiator
4-Row Core | Cools up to 650hp

Radiator Dimensions:
Total: 25" tall x 23" wide
Core: 18.63" tall x 19.75" wide x 2.75" thick
Inlet: 1.5" Driver side
Outlet: 1.75" Passenger side
Tanks: 3.13" thick
Tubes: 0.63"

Brackets on engine face of radiator

13lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 straight thread)

note: Petcock on back side
