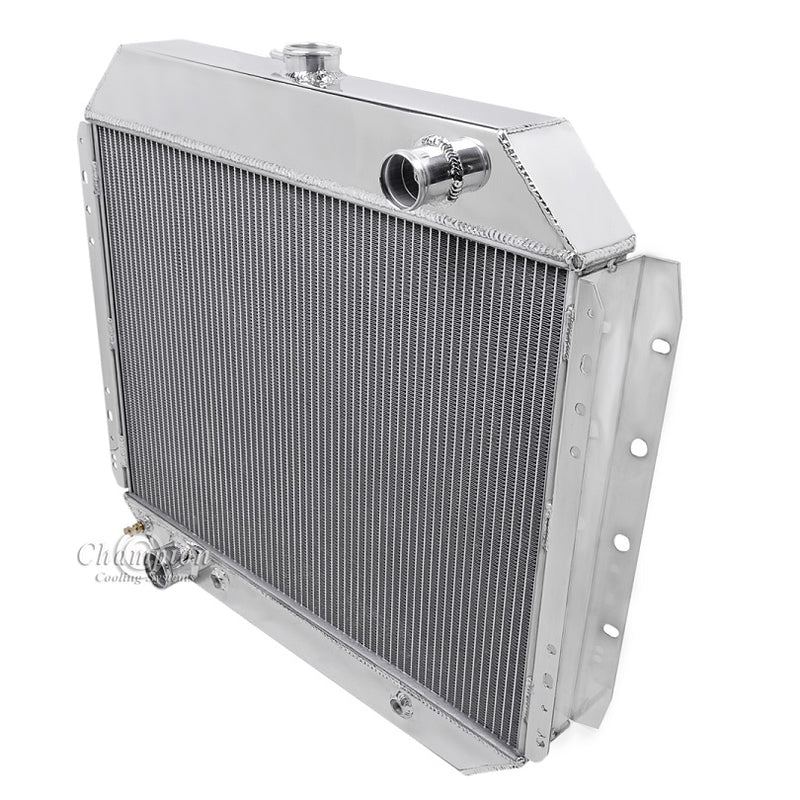

MC433 4 Row

Champion All Aluminum Radiator
4-Row Core Polished Tanks | Cools up to 800hp
Note: Uses Grill Side Mounting Brackets
Engine Side Brackets available with part # CC444

Radiator Dimensions:
Total: 26.5" tall (with cap)x 29.5" wide (including brackets)
Core: 19.25" tall x 26.375" wide x 2.75" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 3.25" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Aluminum Shroud is also available (sold separetely)

When using electric fans:
Two 12" SPAL Electric fans recommended for this core size (sold separetely)
