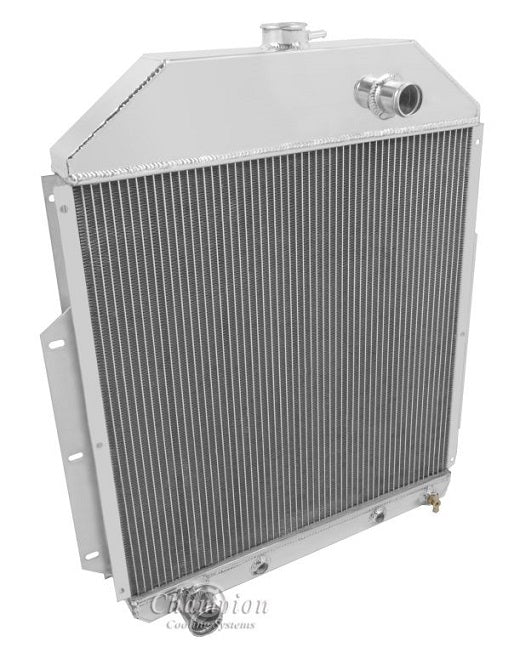

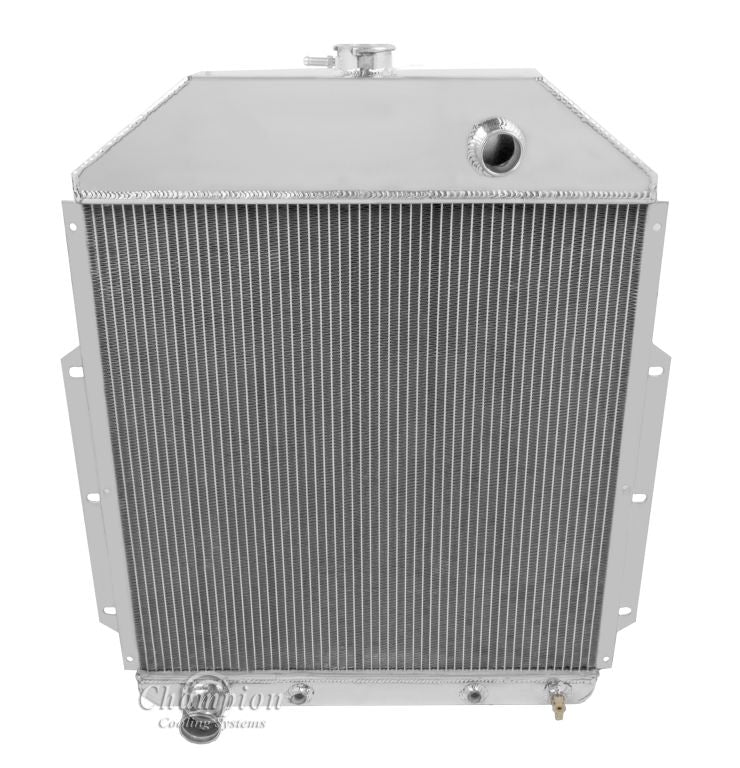

MC4252FD 4 Row Ford V8

Champion All Aluminum Radiator
4-Row Core | Cools up to 800hp

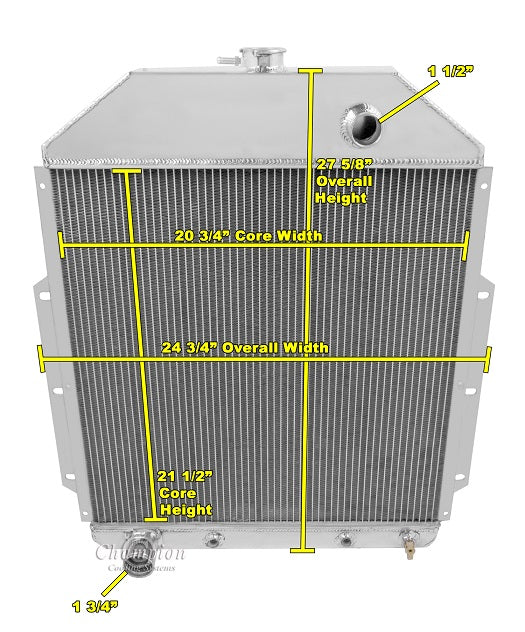

Radiator Dimensions:
Total: 28.5" tall (with cap) x 25" wide (including brackets)
Core: 21.5" tall x 20.88" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

E-Bracket Mounted
From mounting bracket to
engine face of core is 1.38" thick

13 lb. Radiator Cap included
Transmission Cooler Included: (1/8" -27 NPT)

Aluminum Fan Shroud is also available (sold separately)

Recommended Fans (sold separately):
One 16" Electric Fan
