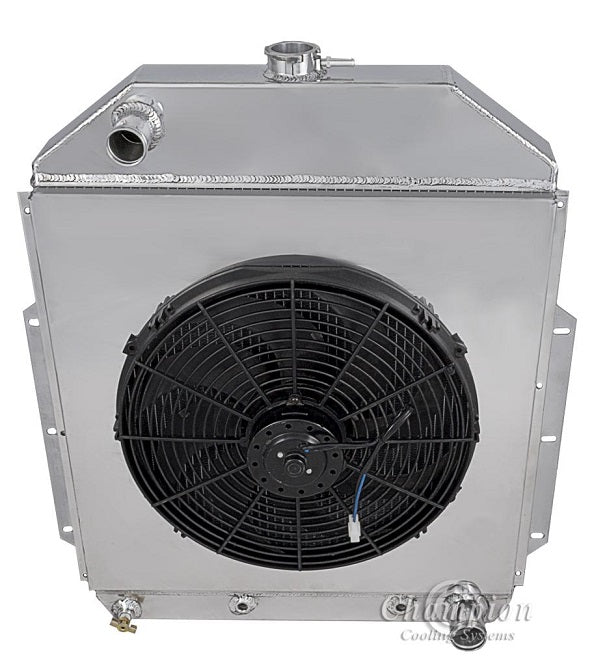

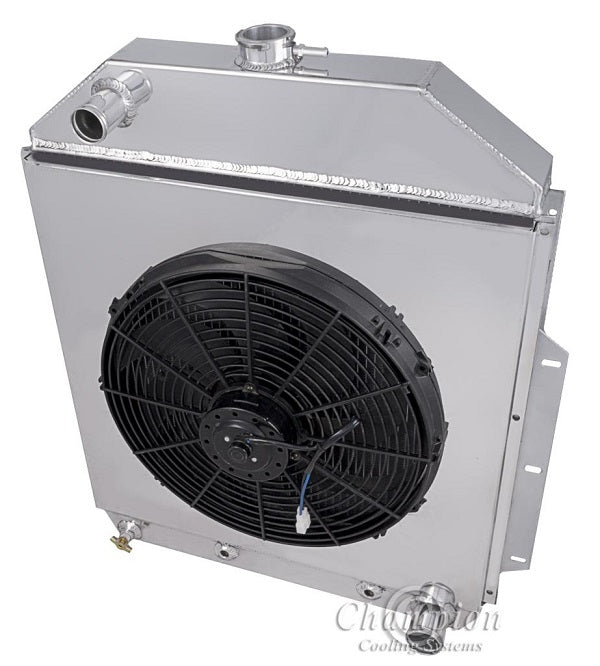

MC4252CH-4252FS16 4 Row

Champion All Aluminum Radiator Plus
Ledfoot Racing Aluminum Shroud & Pro-Series Fan
Verify clearance for electric fan
Total thickness: 7.75" to fan motor
3-Row Core | Cools up to 650hp | Chevy Conversion

Radiator Dimensions:
Total: 28.5" tall (with cap) x 25" wide (including brackets)
Core: 21.5" tall x 20.88" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

E-Bracket Mounted
From mounting bracket to
engine face of core is 1.38" thick

Radiator Cap Included
Transmission Cooler Included: 1/2" -20 Straight Thread
