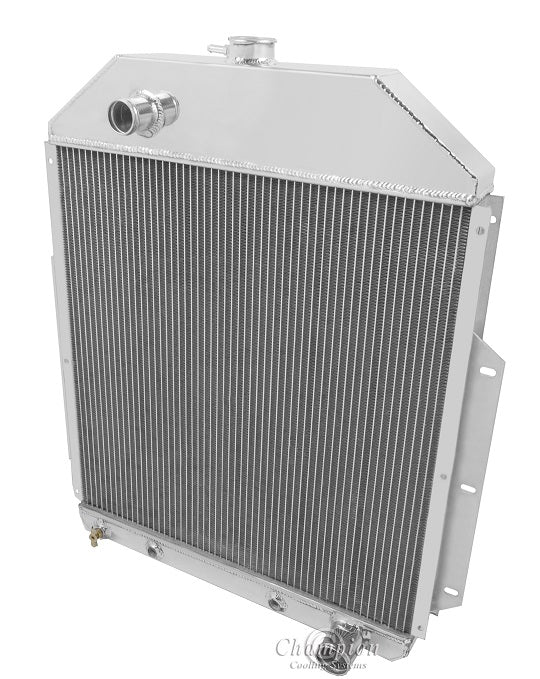

MC4252CH 4 Row Chevy V8

Champion All Aluminum Radiator
4-Row Core | Cools up to 800hp

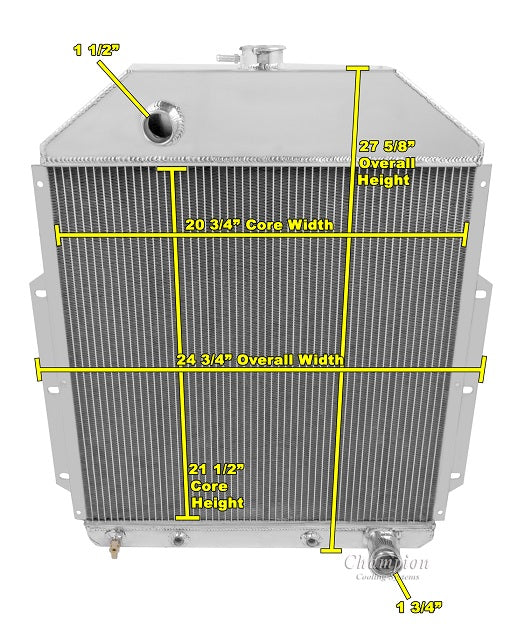

Radiator Dimensions:
Total: 28.5" tall (with cap) x 25" wide (including brackets)
Core: 21.5" tall x 20.88" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

E-Bracket Mounted
From mounting bracket to
engine face of core is 1.38" thick

13 lb. Radiator Cap included
Transmission Cooler Included: 1/8" -27 NPT

Aluminum Fan Shroud is also available (sold separately)

Recommended Fans (sold separately):
One 16" Electric Fan
