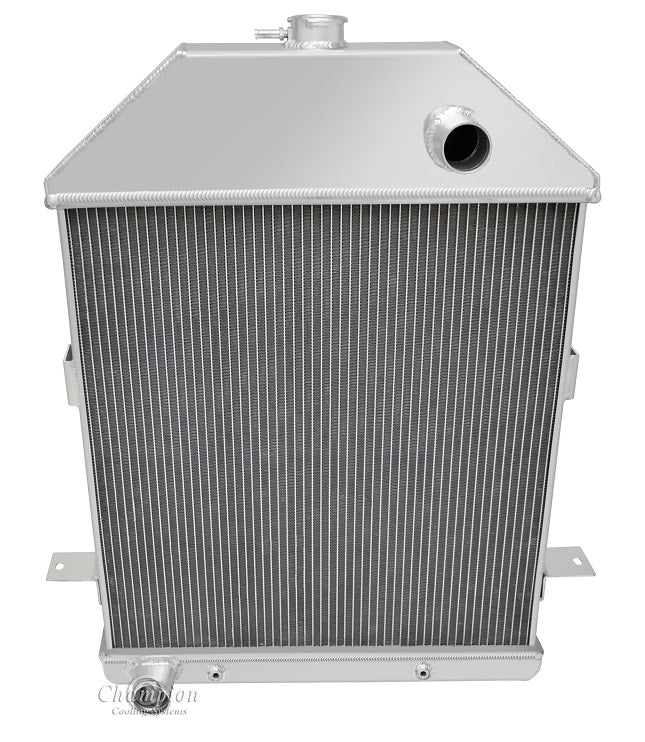

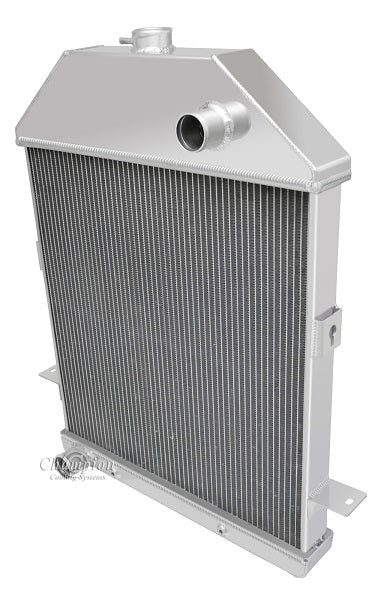

MC41FD 4 Row

All Aluminum Champion Radiator
4-Row Core | Cools up to 650hp

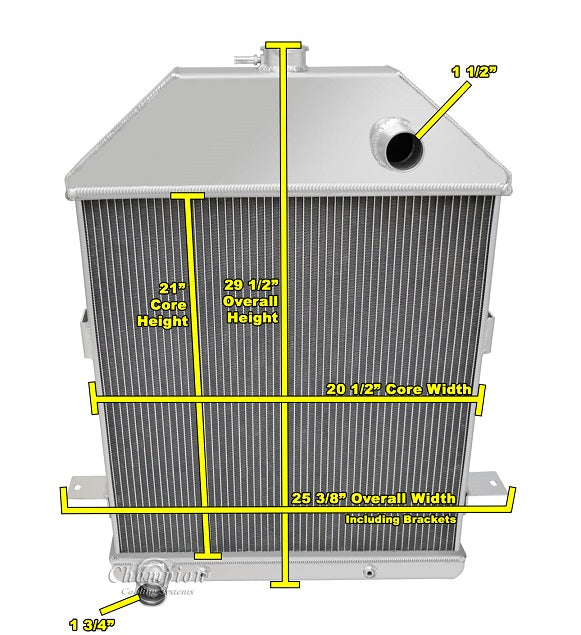

Radiator Dimensions:
Total: 29.5" tall x 25.38" wide (lower bracket)
Core: 21" tall x 20.5" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.13" thick
Tubes: 0.63" thick

Flange Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8" -27 NPT)

When using electric fans:
One 16" fan recommended for this core size
