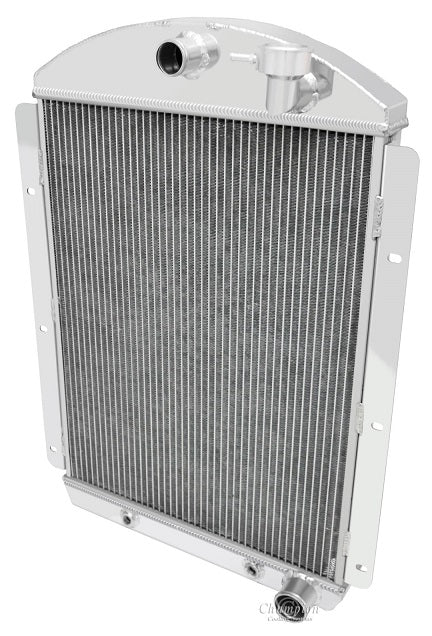

MC4146CH 4 Row For V8's

Champion All Aluminum Radiator
For Chevy V8 Engines
4-Row Core | Cools up to 800hp

Radiator Dimensions:
Total: 28.25 tall (with cap) x 20.75” wide (with brackets)
Core: 22.38" tall x 18" wide x 2.75" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted: located on engine face of radiator

Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Fan Shroud is also available (sold separately)

13 lb. Radiator Cap included
When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
