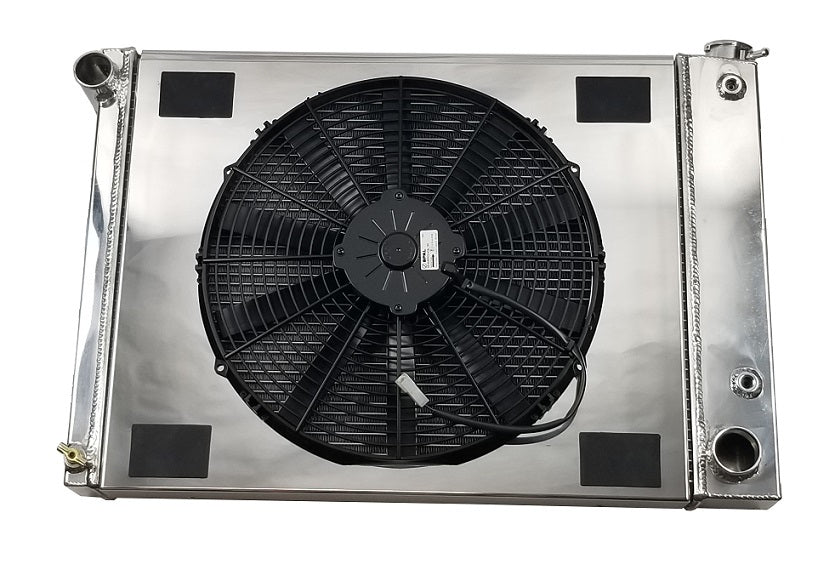

MC412-412MCFS16FSP 4 Row Combo

Champion All Aluminum Radiator Plus
Shroud & SPAL-1516 Medium Profile 16" Fan
Verify clearance for electric fan
Total thickness: 7.13" to fan motor
4-Row Core | Cools up to 550hp

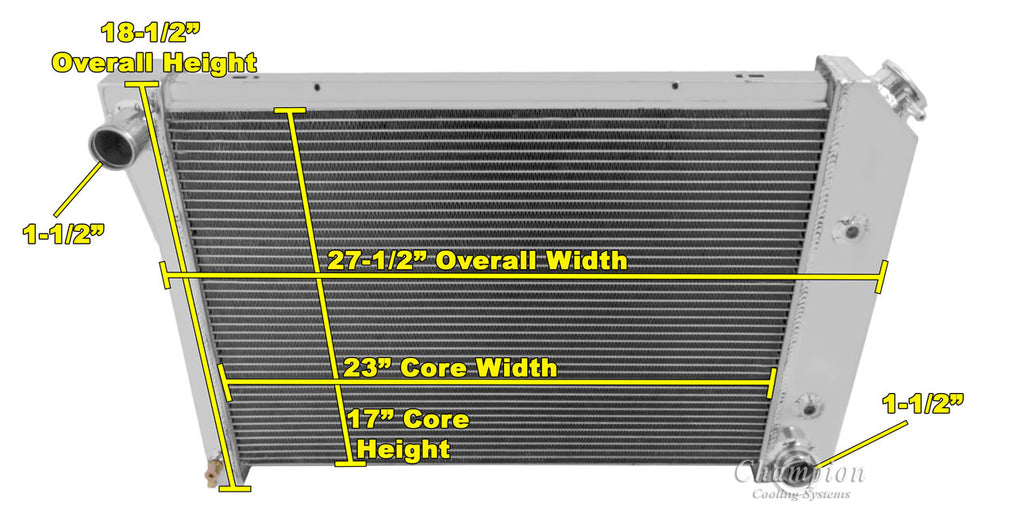

Radiator Dimensions:
Total: 18.75" tall (with cap) x 29" wide
Core: 17" tall x 23" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/2"-20 STRAIGHT THREAD)
