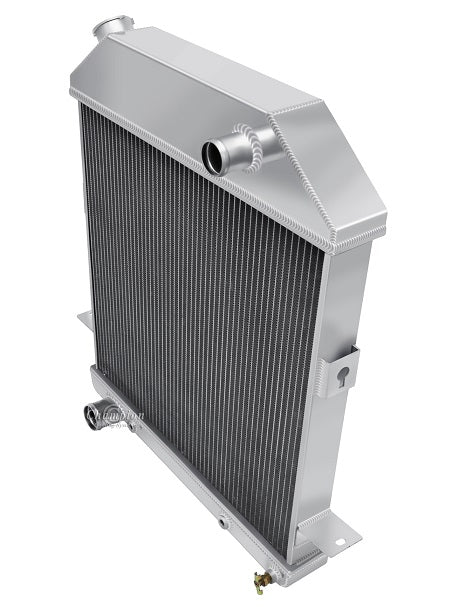

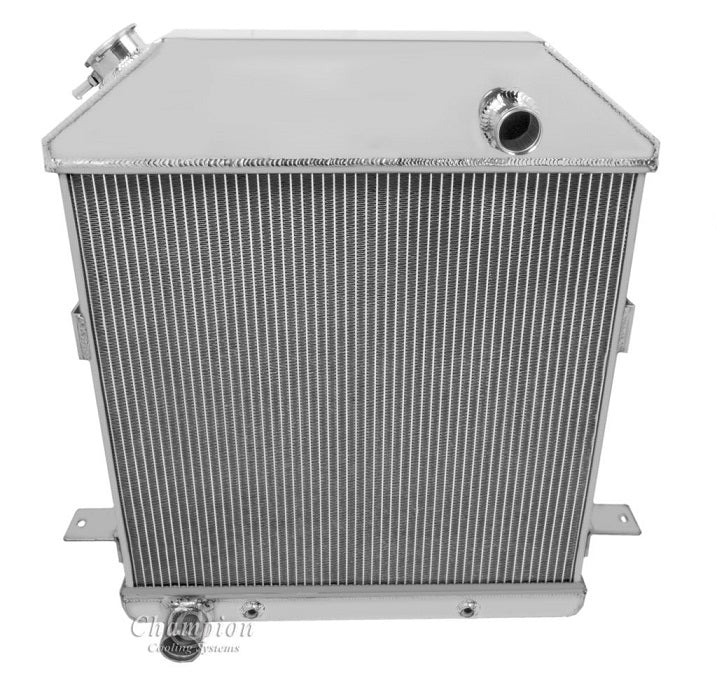

MC4001FD 4 Row Ford Motors

All Aluminum Champion Radiator
4-Row Core | Cools up to 700hp
(Ford Configuration)

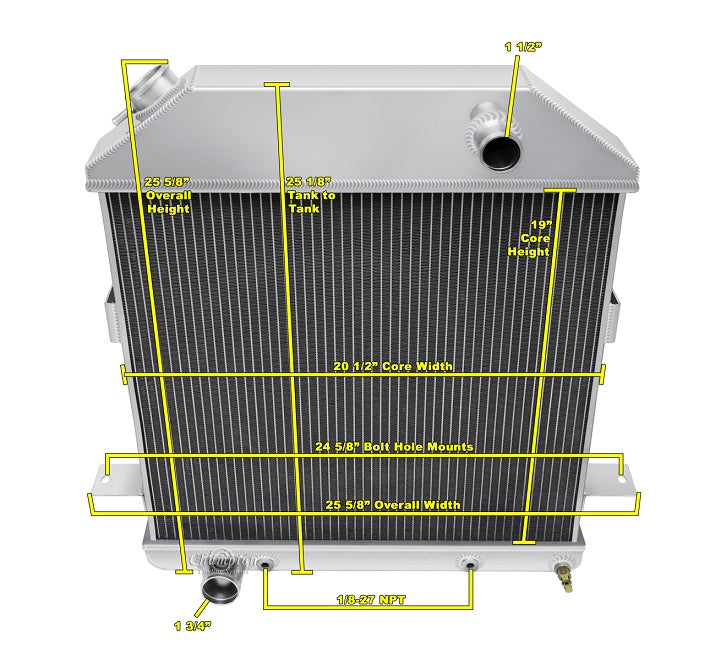

Radiator Dimensions:
Total: 25.13" tall x 25.5" wide
Core: 19" tall x 20.88" wide x 2.75" thick
Inlet: 1.5" Passenger side
Outlet: 1.75" Driver side
Tanks: 3.13" thick
Tubes: 0.63" thick

Flange Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)

When using electric fans:
One 16" fan recommended for this core size (sold separately)
