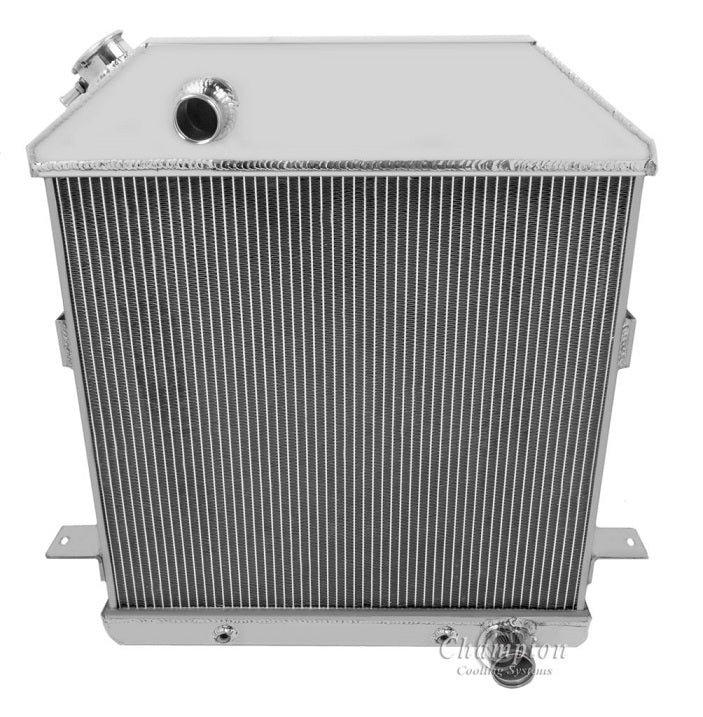

MC4001CH 4 Row Chevy Motors

All Aluminum Champion Radiator
4-Row Core | Cools up to 700hp
(Chevy Configuration)

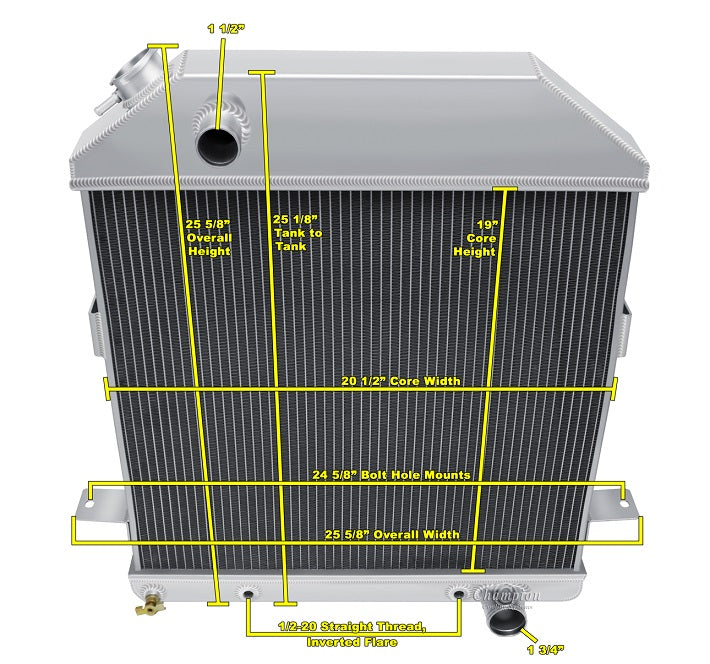

Radiator Dimensions:
Total: 25.13" tall x 25.5" wide
Core: 19" tall x 20.88" wide x 2.75" thick
Inlet: 1.5"
Outlet: 1.75"
Tanks: 2.88" thick
Tubes: 0.75" thick

Flange Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2"-20 STRAIGHT THREAD)

When using electric fans:
One 16" fan recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:
