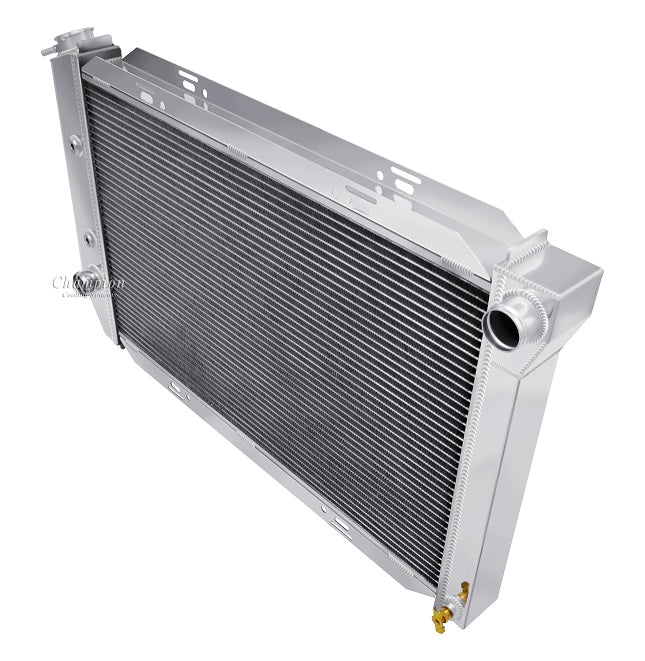

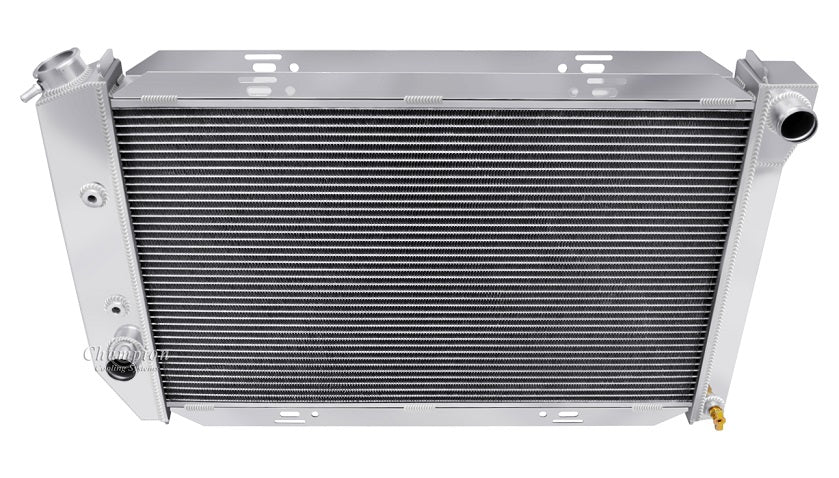

MC381 4 Row

All Aluminum Champion Radiator
4-Row Core | Cools up to 800hp

Radiator Dimensions:
Total: 20" tall (with cap) x 32" wide
Core: 17.5" tall x 26” wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 3.25" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also Available (sold separately)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
