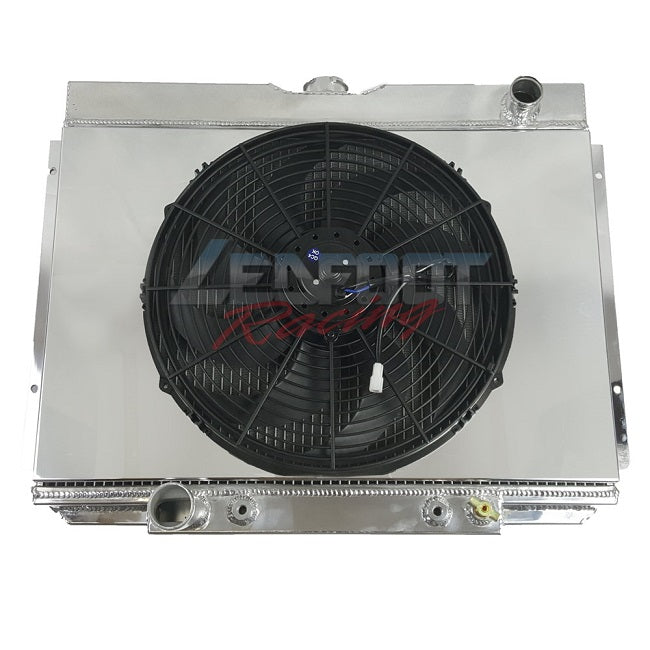

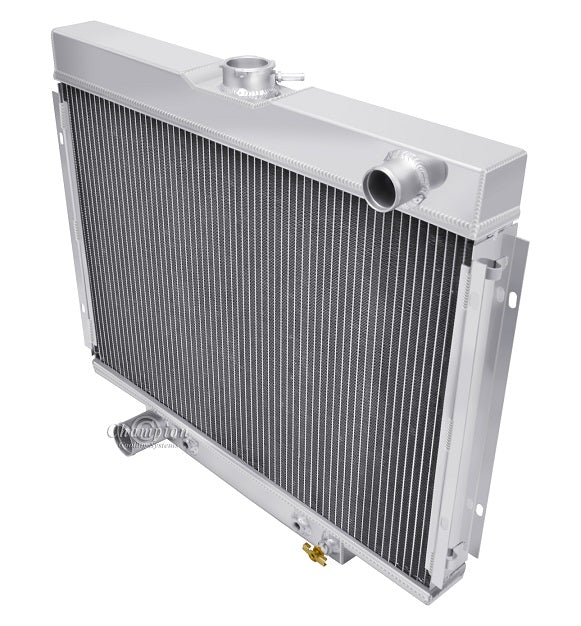

MC379-379FS16SP 4 Row Combo

Champion Aluminum Radiator Plus
Shroud and SPAL-1516 Medium Profile 16" Fan
The SPAL fan Unusally solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
4-Row Core | Cools 700hp | Usually For Big Blocks

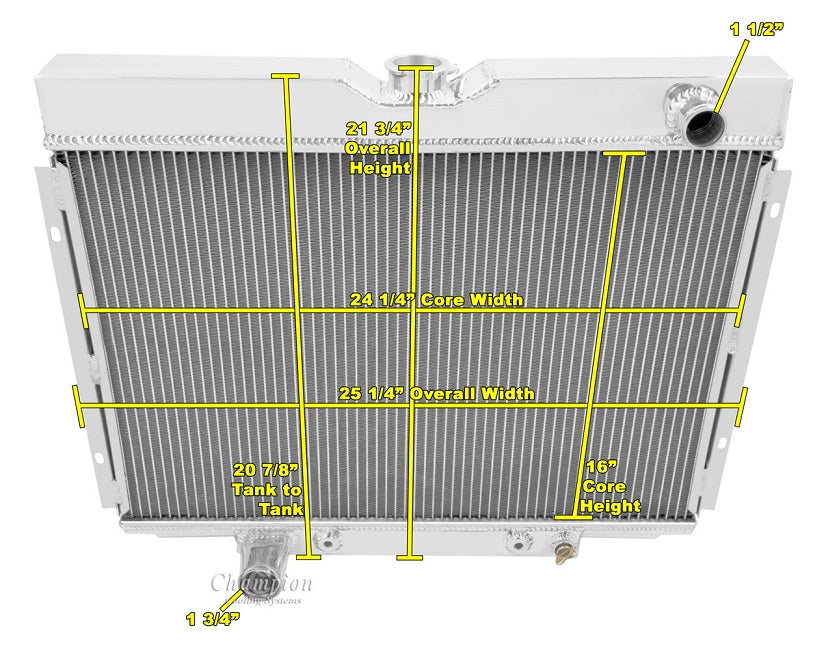

Radiator Dimensions:
Total: 20.88" tall (21.5" with cap) x 25.75" wide (including brackets)
Core: 16.5" tall x 24.25" wide x 2.75" thick
Inlet: 1.5" passenger
Outlet: 1.75" driver
Tanks: 3.25" thick
Tubes: 0.63" thick
Total Thickness: 6" thick

Typically Saddle mounted, Includes Bracket Mounts

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
