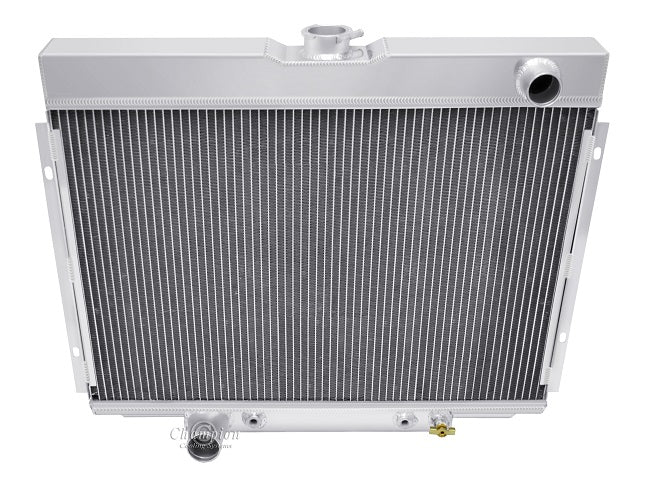

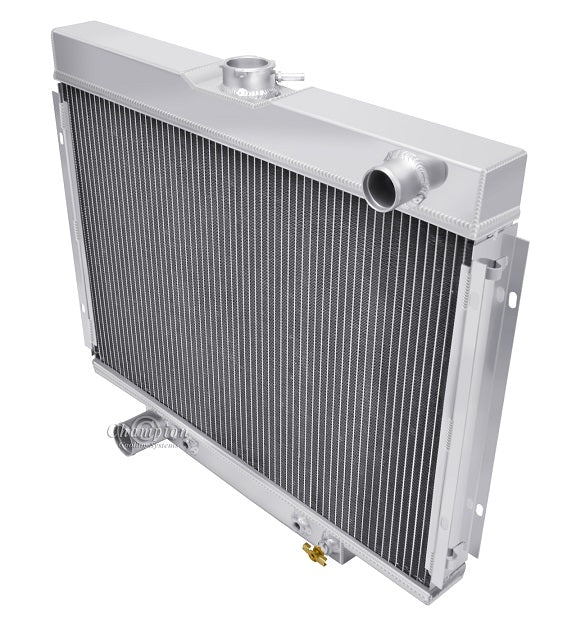

MC379 4 Row

Champion All Aluminum Radiator
4-Row Core | Cools up to 700hp | Polished Tanks
Usually For Big Blocks
Refer to the MC2379 for drivers side fill neck

MC379 Radiator Dimensions:
Total: 20.88" tall (21.5" with cap) x 25.25" wide (with brackets)
Core: 16" tall x 24.25" wide x 2.75 thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.13" Thick
Tubes: 0.63" thick

Saddle or Bracket Mount System

13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Aluminum Shroud is also Available (sold separately)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
