Description

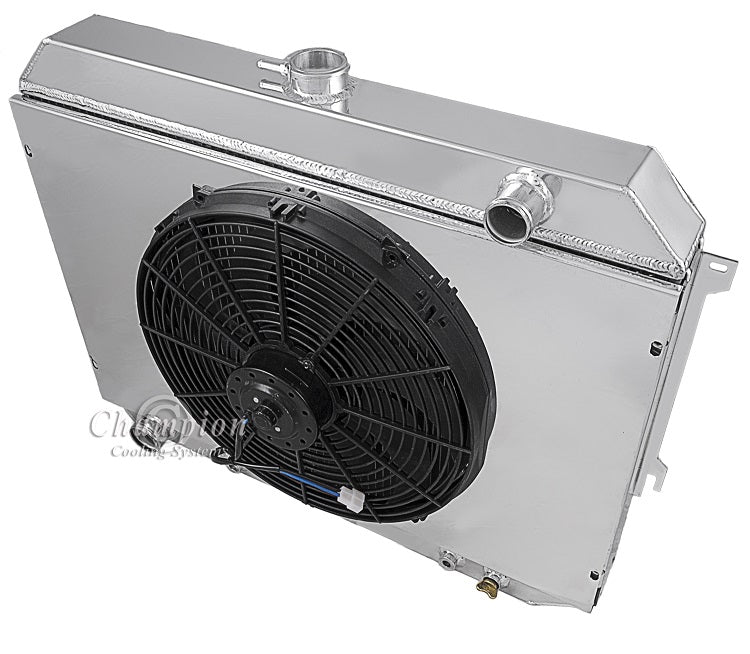

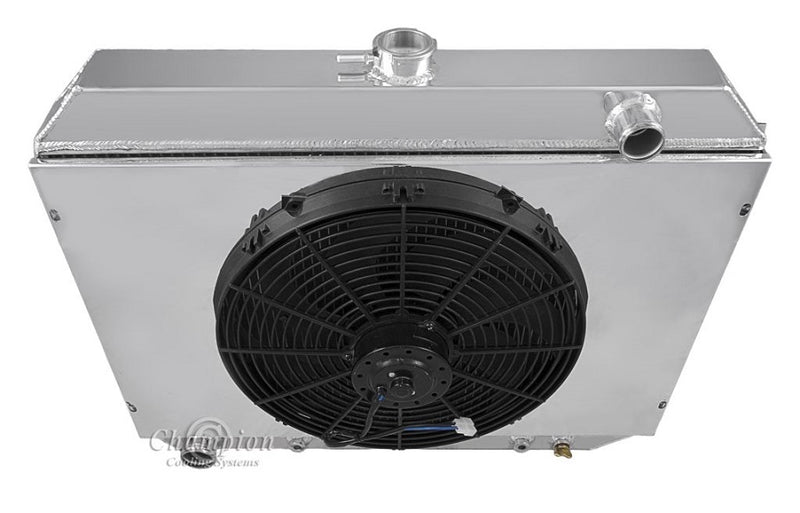

Champion All Aluminum Radiator PLUS
ALuminum Shroud & 16" SPAL-2049 High Performance Fan
(We no longer recommend the standard fan for this set up)
4-Row Core; Polished Tanks
Cools 800hp

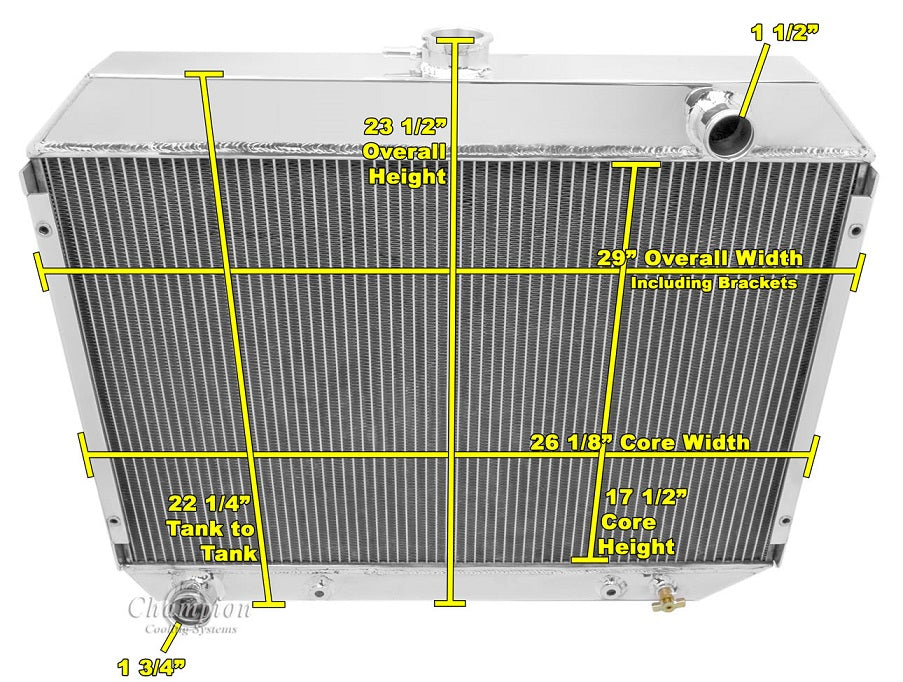

Radiator Dimensions:
Total: 29" wide (including brackets) x 22.25” tall (23.25” with cap)
Core: 26” wide x 17.5” tall x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.2" thick
Tubes: 0.63" thick
Total Thickness: 7" to back of fan
Bracket mounted
No OEM Shroud support
13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
ALuminum Shroud & 16" SPAL-2049 High Performance Fan
(We no longer recommend the standard fan for this set up)
4-Row Core; Polished Tanks
Cools 800hp
Radiator Dimensions:
Total: 29" wide (including brackets) x 22.25” tall (23.25” with cap)
Core: 26” wide x 17.5” tall x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.2" thick
Tubes: 0.63" thick
Total Thickness: 7" to back of fan
Bracket mounted
No OEM Shroud support
13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
LIFETIME WARRANTY
PRICE MATCH GUARANTEE
