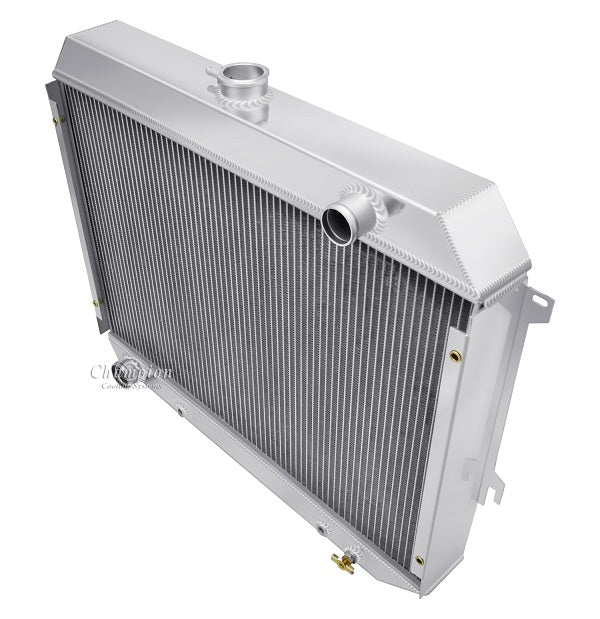

MC375 4 Row

Champion All Aluminum Radiator
4-Row Core Polished Tanks | Cools up to 800hp

Radiator Dimensions:
Total: 29" wide (including brackets) x 22.25” tall (23.25” with cap)
Core: 26” wide x 17.5” tall x 2.75 deep
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.2" thick
Tubes: 0.63" thick

Bracket mounted
Check OEM Shroud Brackets for Shroud support

13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)

When using electric fans:
Two 12" SPAL Electric fans recommended for this core size (sold separately)
