MC374 4 Row

Champion All Aluminum Radiator
4-Row Core; Polished Tanks | Cools up to 750hp

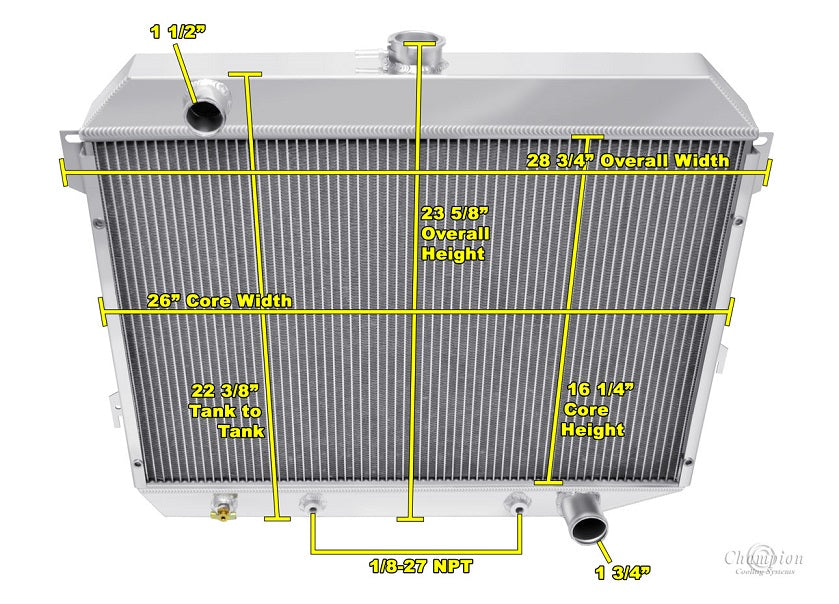

MC374 Radiator Dimensions:
Total: 22.5" tall (23.5" w/ Cap) x 29" wide (including brackets)
Core: 16.25" tall x 26" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted
Check OEM Shroud Brackets for Shroud support

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also Available (sold separately)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
