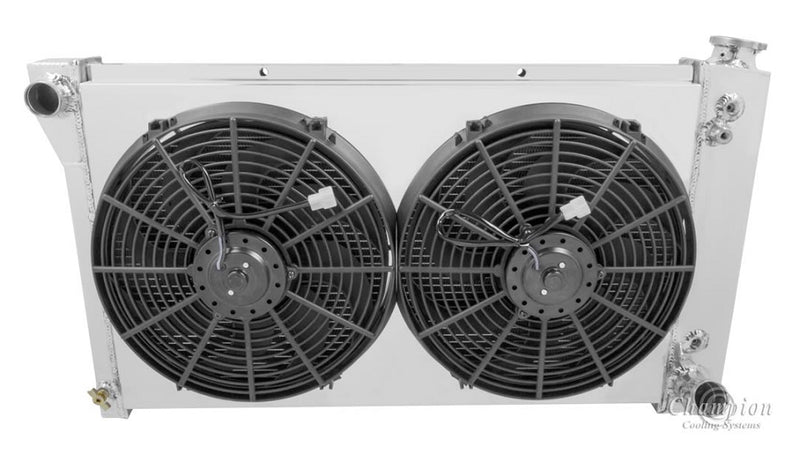

MC369-369FS14 4 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 2-14" Fans
Verify clearance for electric fan
Total thickness: 6.5" to fan motor, 4.5" between fans
4 Row Core: Polished Tanks
Cools 1000hp

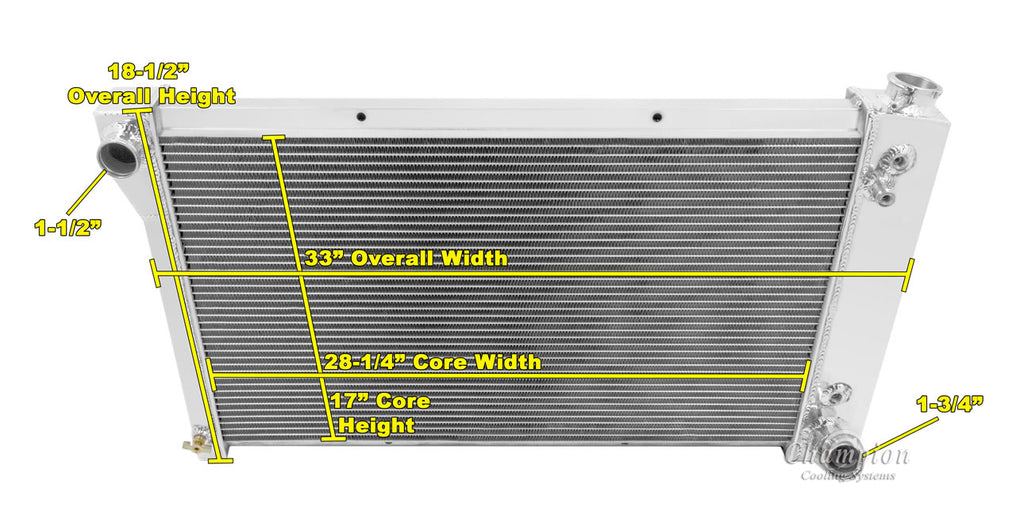

Radiator Dimensions:
Total: 19.25" tall x 33.88" wide
Core: 16" tall x 28.25" core x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
