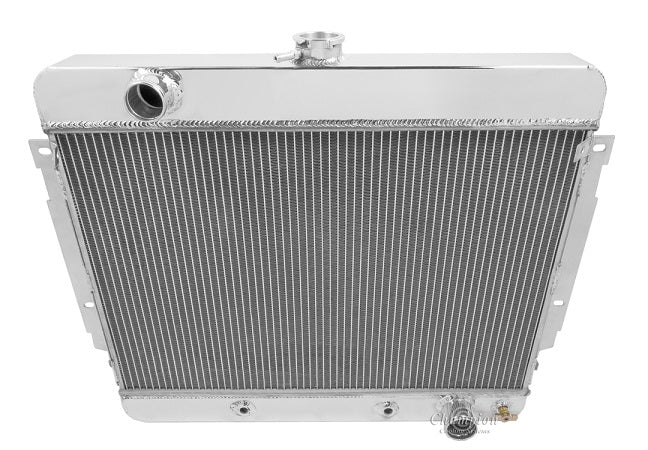

MC345 4 Row

All Aluminum Champion Radiator
4-Row Core: Cools 600hp
Note: This replaces the factory 15.5" tall core w/o AC

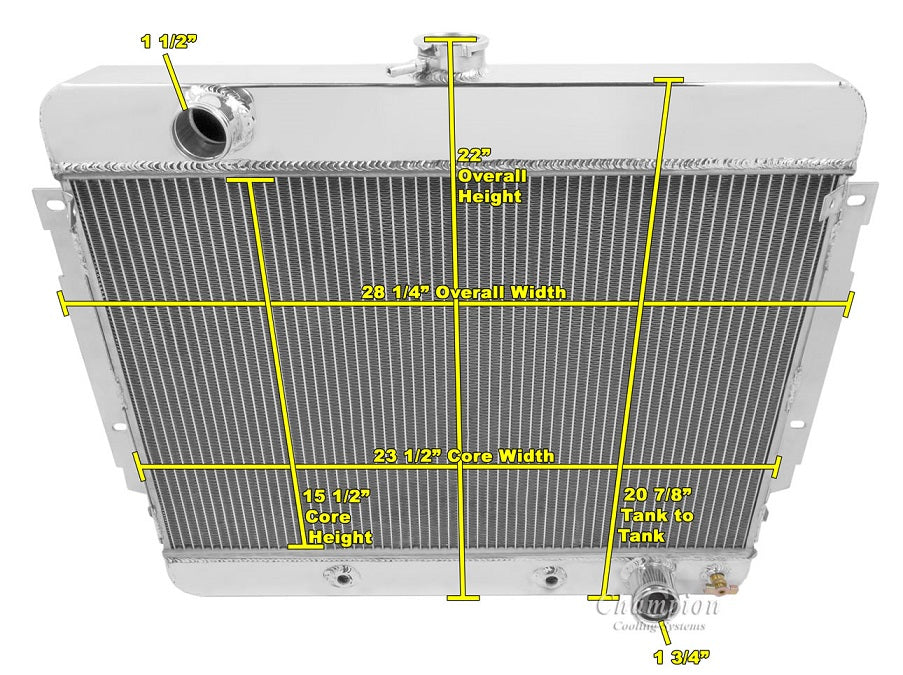

Radiator Dimensions:
Total: 22" tall x 28.25" wide (with brackets)
Core: 15.5" tall x 23.38" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75” passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)

Recommended Fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:
