MC340-340FS16SP 4 Row Combo

Champion All Aluminum Radiator Plus
Ledfoot Racing Shroud & 16" SPAL Medium Profile Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
4-Row Core | Cools 650hp

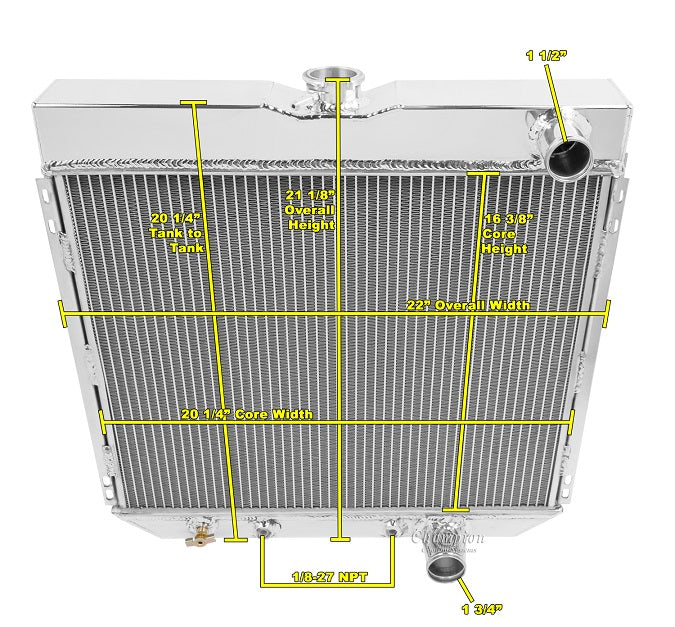

MC340 Radiator Dimensions:
Total: 20.63" (21.25" with cap) x 22" wide (including brackets)
Core: 16.25" tall x 19.75" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick
Total Thickness: 6" to back of fan

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27npt)
