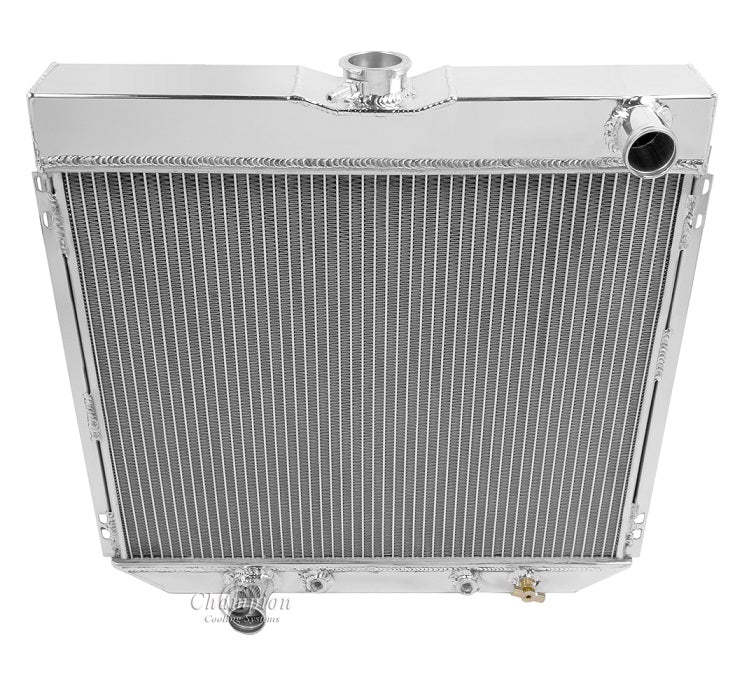

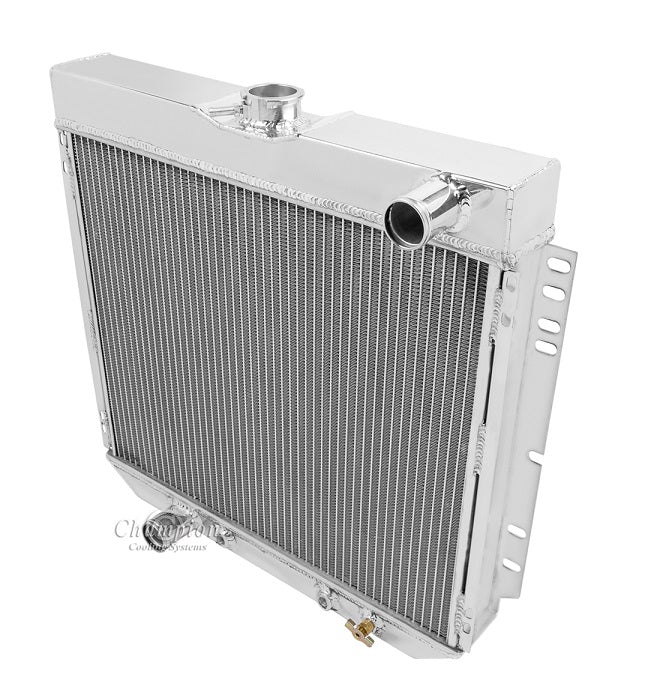

MC339 4 Row

Champion All Aluminum Radiator
4-Row Core | Cools up to 650hp

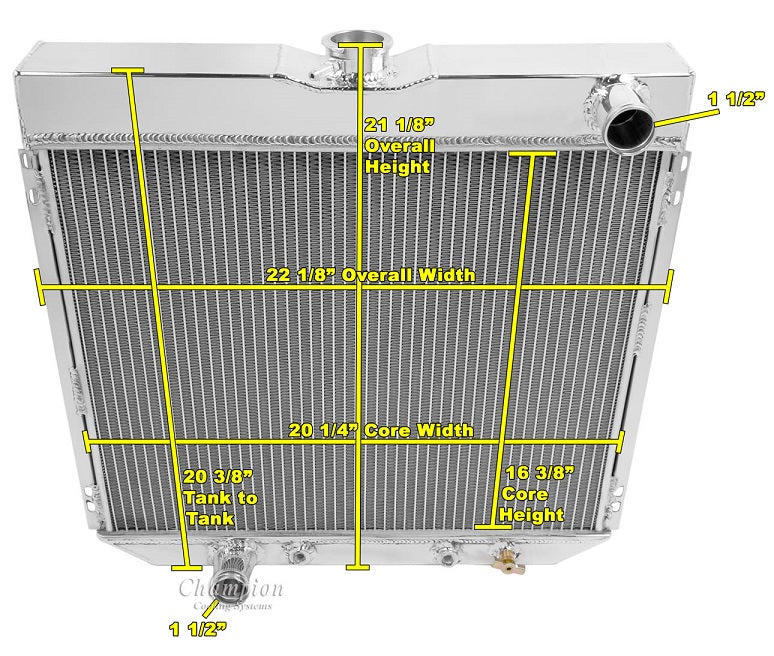

Radiator Dimensions:
Total: 20.38" tall (21" with cap) x 22.13" wide (including brackets)
Core: 16.38" tall x 20.25" wide x 2.75" thick
Inlet: 1.5 passenger
Outlet: 1.5" driver
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Aluminum Shroud is also Available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
