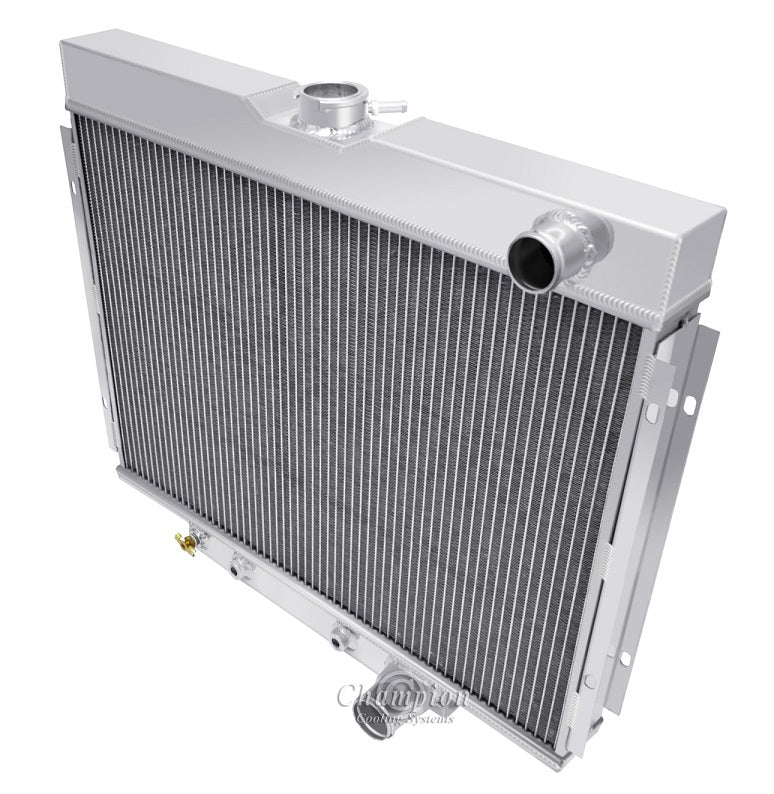

MC338-338FS16SP 4 Row Combo

Champion All Aluminum Radiator Plus

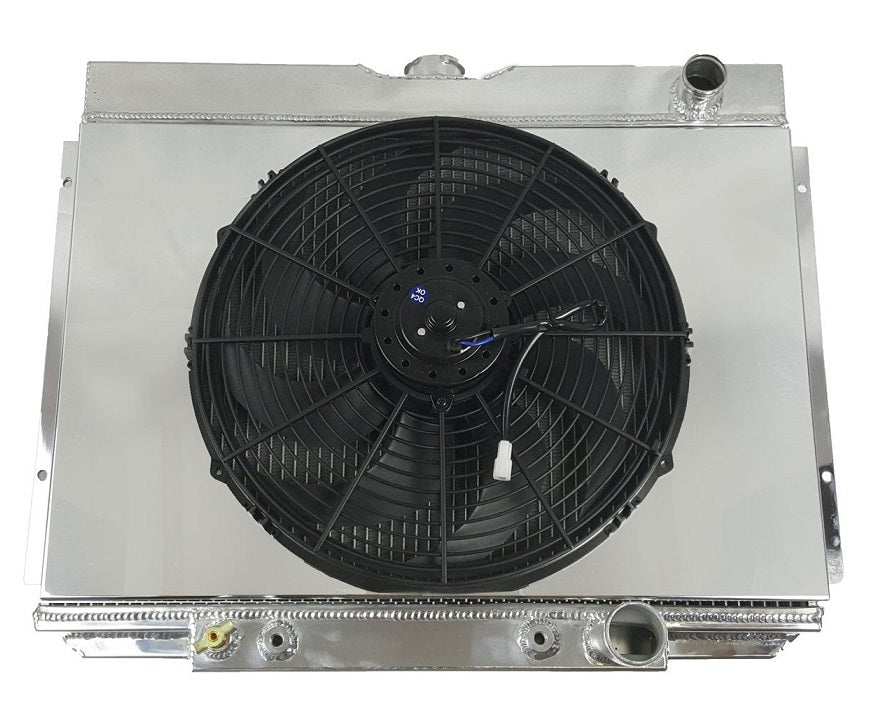

Ledfoot Racing Shroud & 16" SPAL Medium Profile Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
4-Row Core: Polished Tanks | Cools 700hp

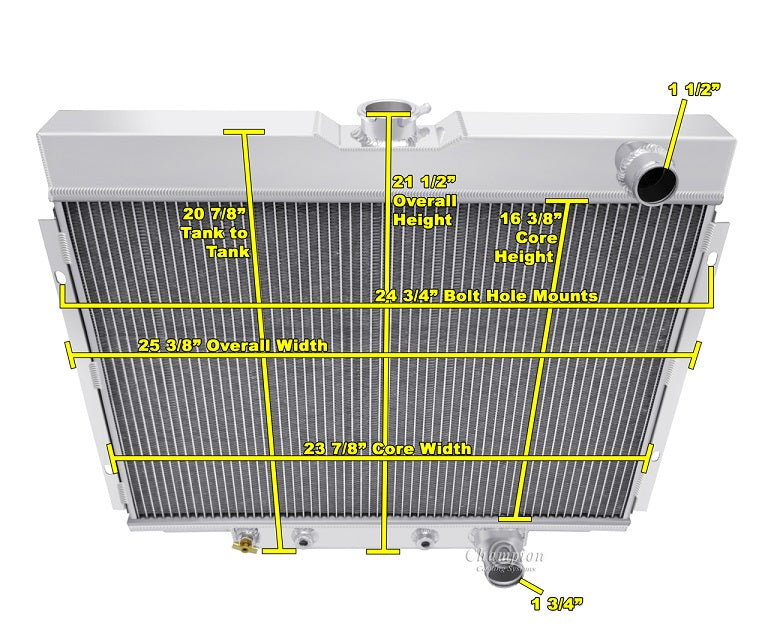

Radiator Dimensions:
Total: 21.75" tall (22" with cap) x 25.38" wide (including brackets)
Core: 16" tall x 24.25" wide x 2.75" thick
Inlet: 1.5” passenger side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick
Total Thickness: 6.13" to back of fan
Saddle Mounted or Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27npt)
