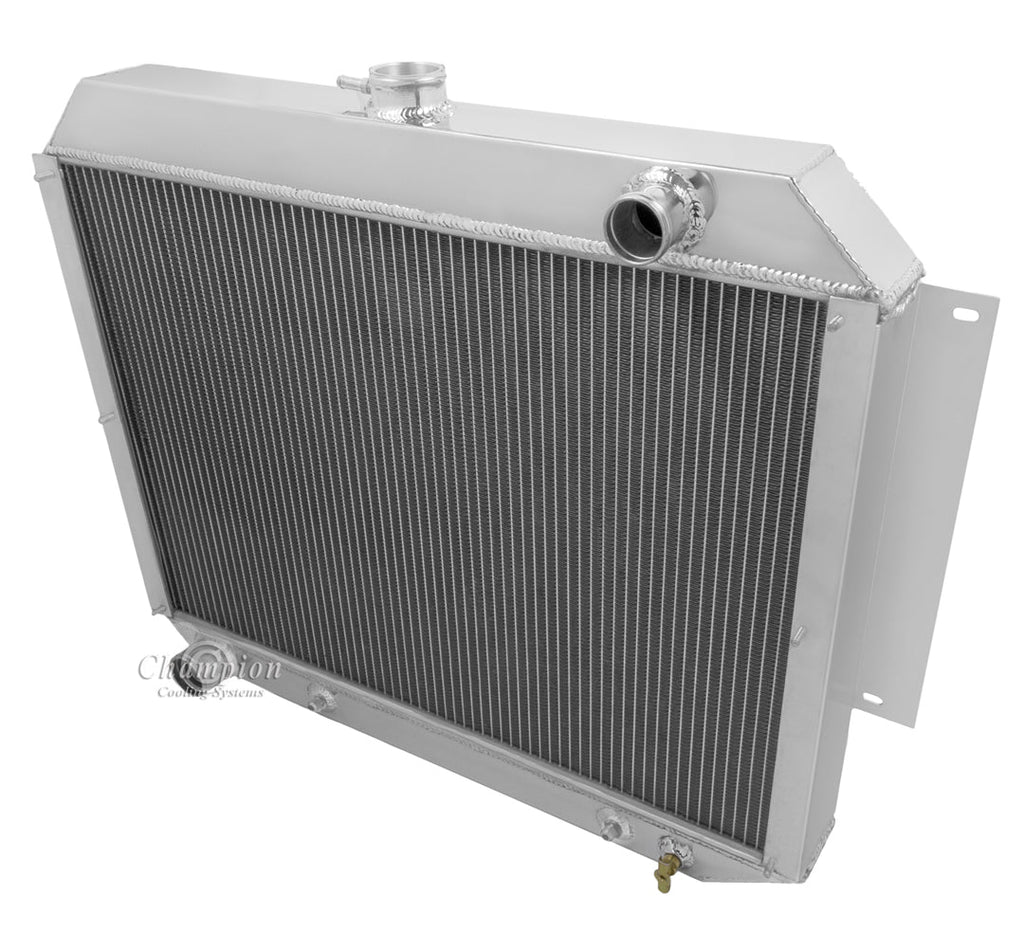

MC332-332FS12CSP 4 Row Combo

Champion All Aluminum Radiator PLUS

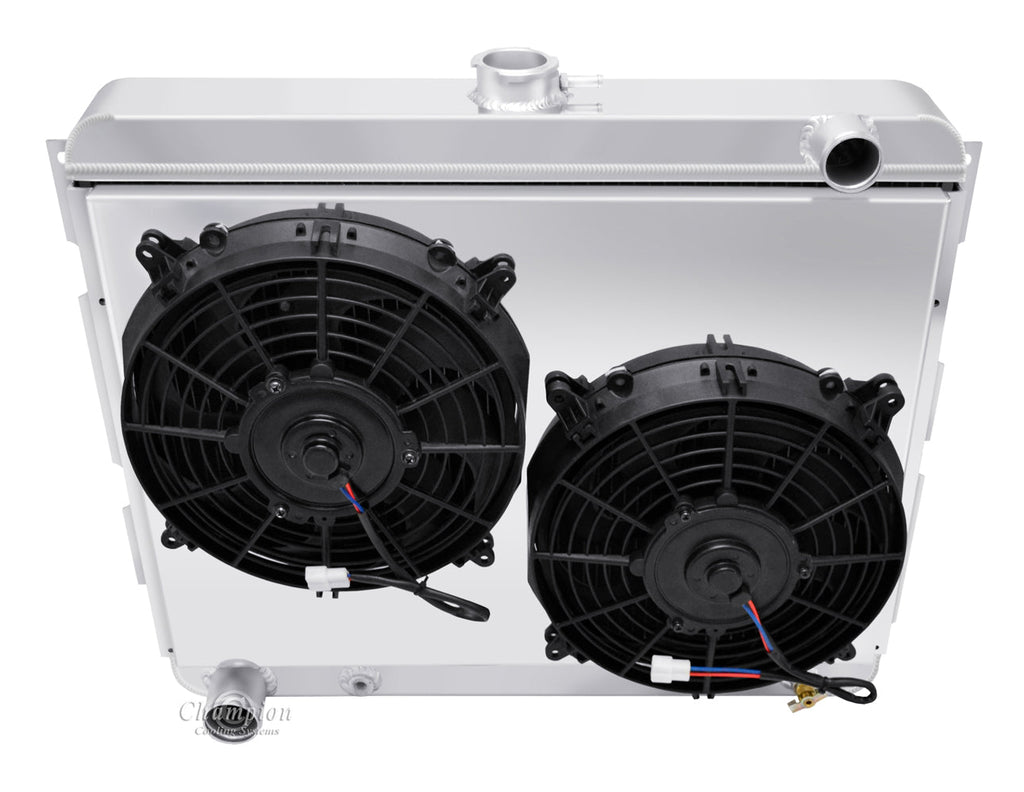

Aluminum Shroud and (2) 12" SPAL-1522 Fans
4-Row Core | Cools up to 800hp

Radiator Dimensions:
Total: 23.25" (with cap) x 29.5" (with brackets)
Core:17.5" tall x 26" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.13" thick
Tubes: 0.63" thick
Total Thickness: 6.38" , 5.13" between fan motors
Bracket Mounted

Radiator Cap included
Transmission Cooler included (1/8-27NPT)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
