MC3284-284FS16 4 Row Combo

Champion All Aluminum Radiator PLUS

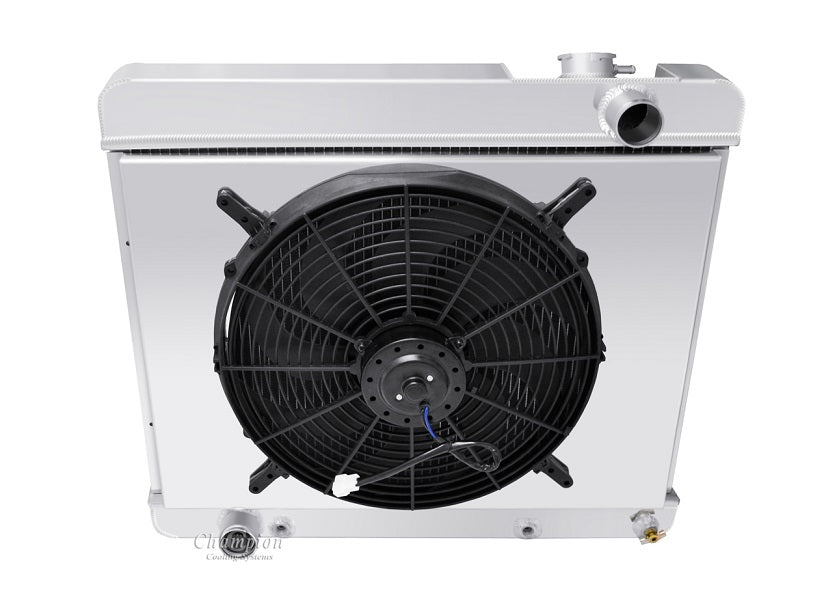

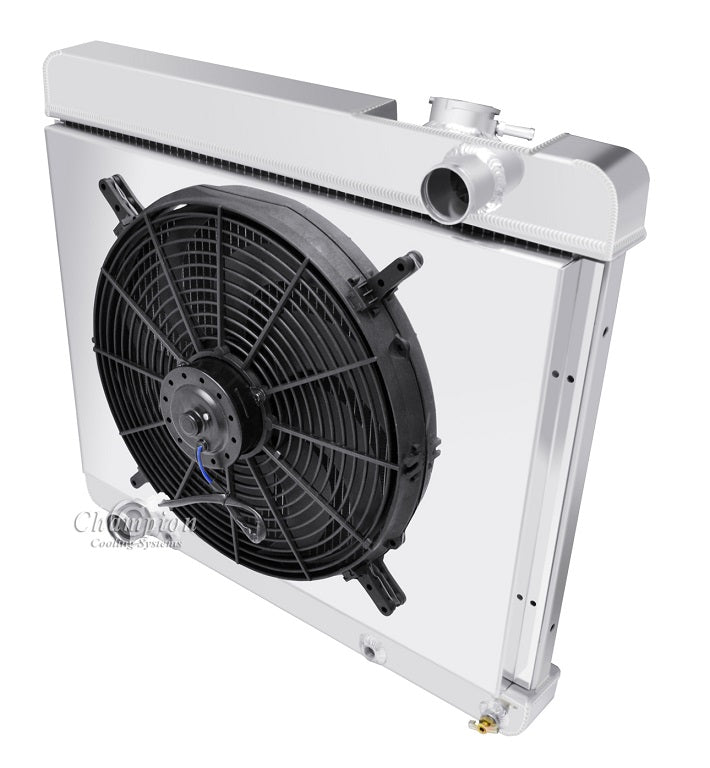

Ledfoot Racing Shroud & 16" Pro-Series Fan
Verify Core Height and clearance for electric fan
Total thickness: 6.63" to fan motor
4-Row Core | Cools up to 700hp

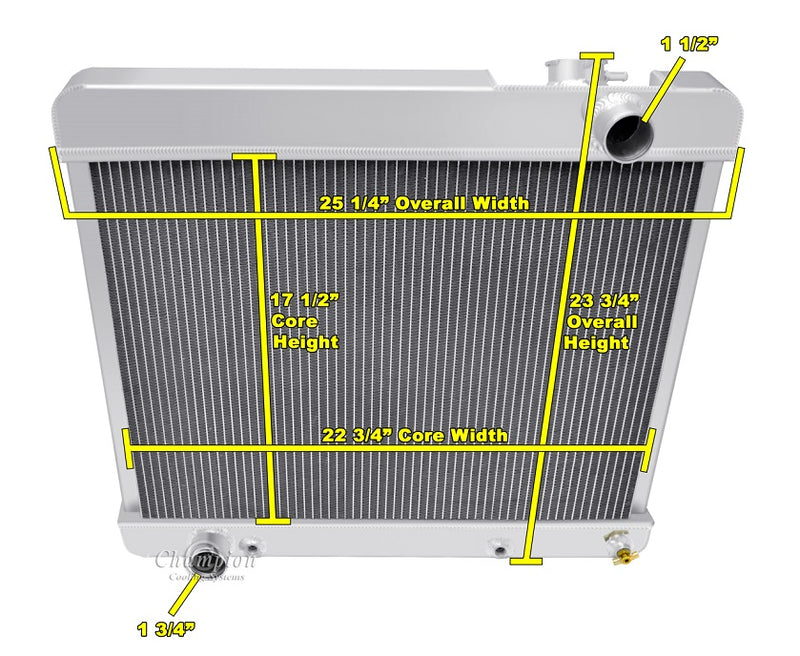

Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.38" tall x 22.75" wide x 2.75" thick
Inlet: 1.5" drivers side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Saddle Mounted

13lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare )
