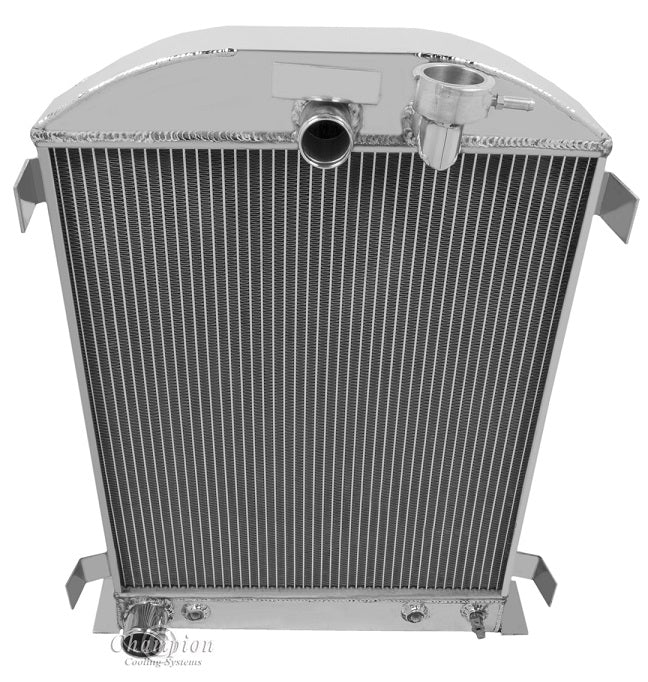

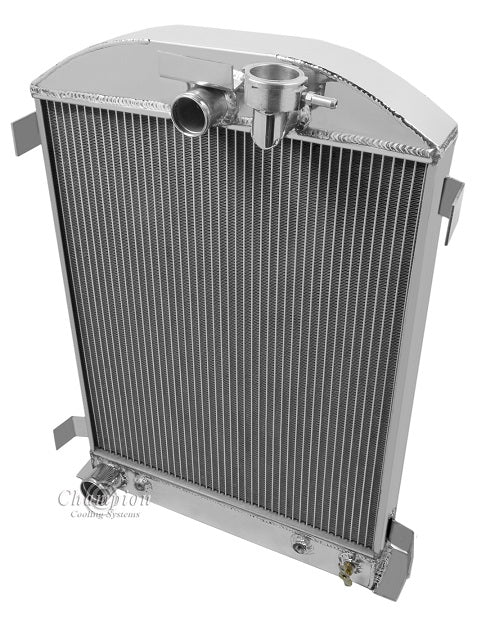

MC3032 4 Row

All Aluminum Champion Radiator
4-Row Core | Cools up to 850hp

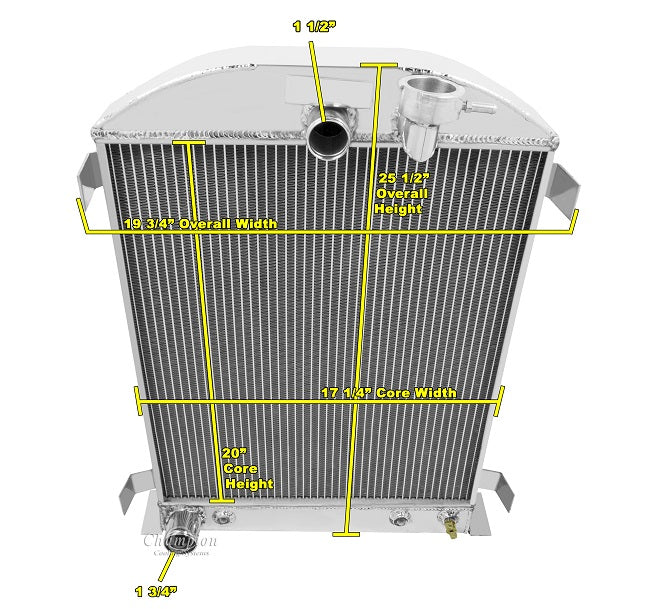

Radiator Dimensions:
Total: 19.75" wide (lower bracket) x 26.5" tall
Core: 17.25" wide x 20" tall x 2.75" thick
Inlet: 1.5" Center
Outlet: 1.75" Driver side
Tanks: 3" thick | 17.5" wide
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/8 27-NPT)

When using electric fans:
One 16" fan recommended for this core size (sold separately)
Fan shipping is FREE when purchased with a radiator
