Description

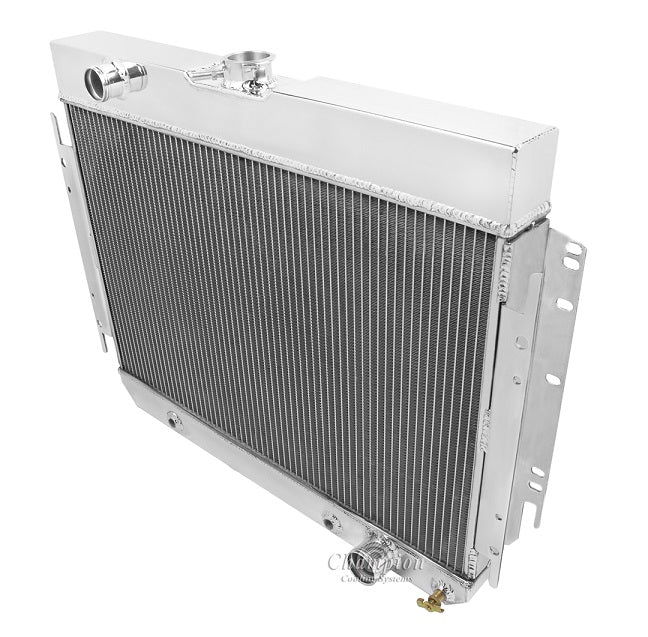

Champion All Aluminum Radiator

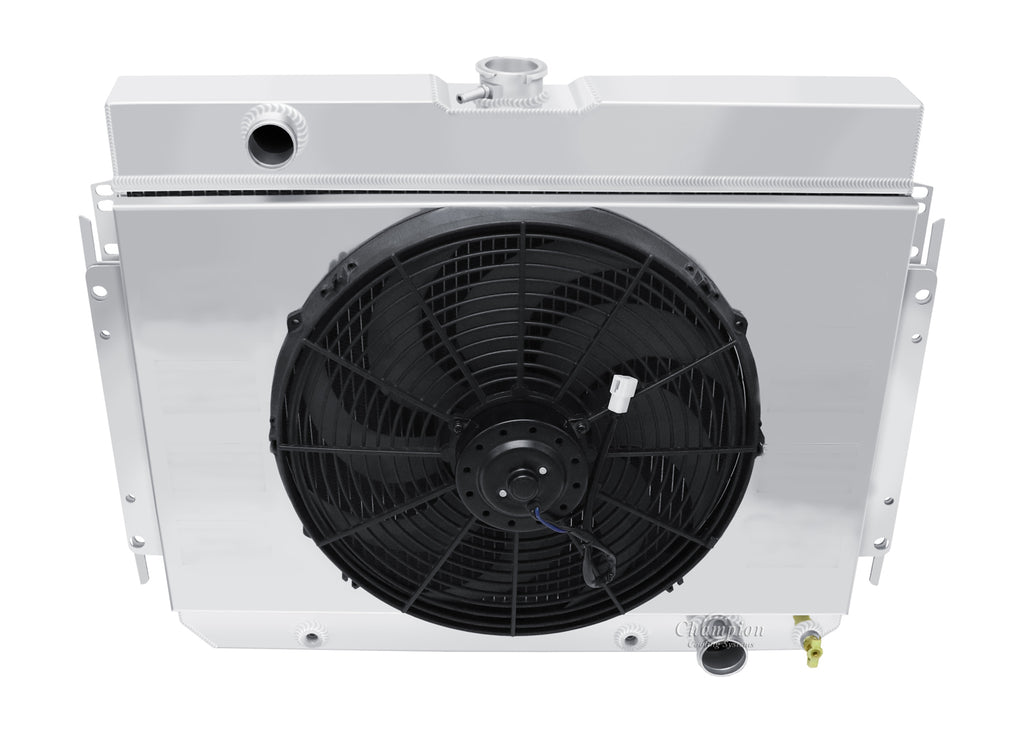

Plus Ledfoot Racing Aluminum Shroud & 16" Fans
Verify clearance for electric fan
Total thickness: 7" to fan motor
4-Row Core Polished Tanks | Cools up to 750hp

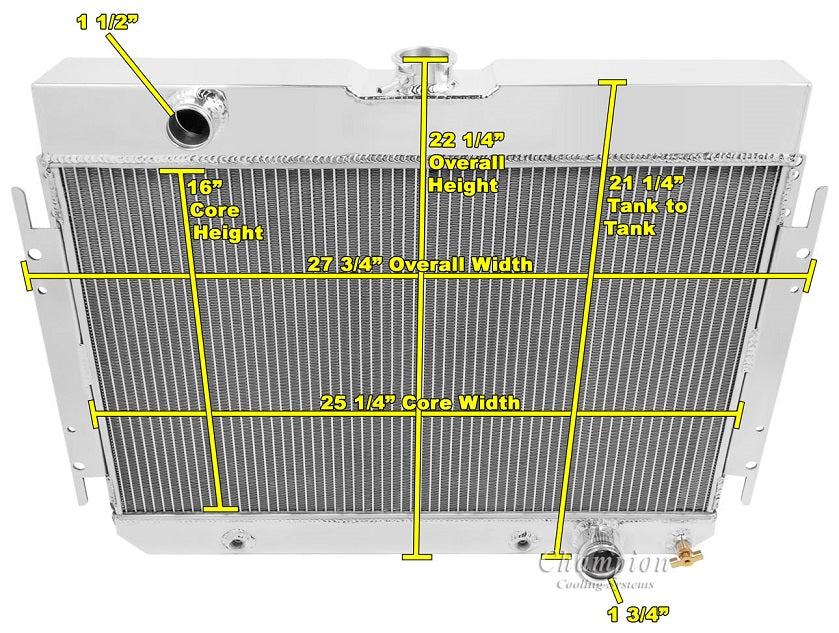

Radiator Dimensions:
Total: 21.75" tall x 28" wide (incl brackets)
Core: 16.13" tall x 25" wide x 2.8" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick
Total Thickness: 7.25", Thinner fans available
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Plus Ledfoot Racing Aluminum Shroud & 16" Fans
Verify clearance for electric fan
Total thickness: 7" to fan motor
4-Row Core Polished Tanks | Cools up to 750hp
Radiator Dimensions:
Total: 21.75" tall x 28" wide (incl brackets)
Core: 16.13" tall x 25" wide x 2.8" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick
Total Thickness: 7.25", Thinner fans available
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
LIFETIME WARRANTY
PRICE MATCH GUARANTEE
