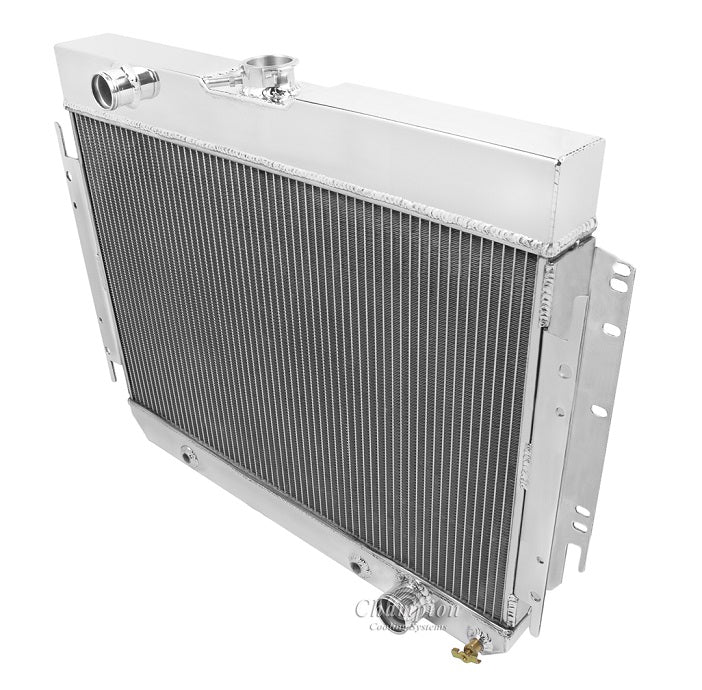

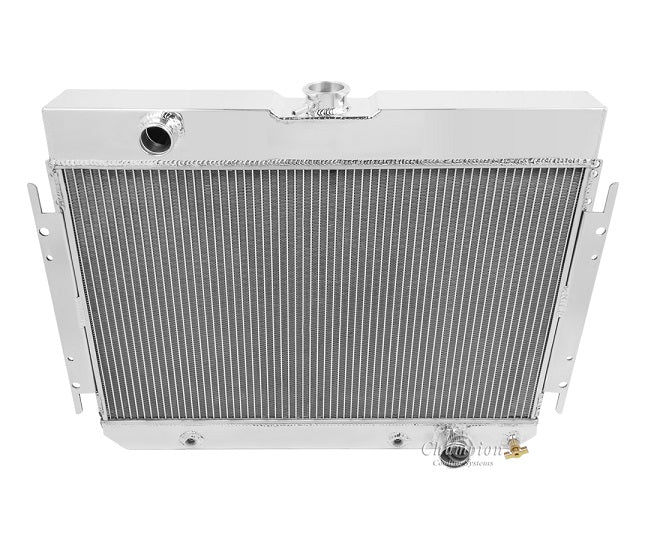

MC289 4 Row

Champion All Aluminum Radiator
4-Row Core Polished Tanks | Cools up to 750hp

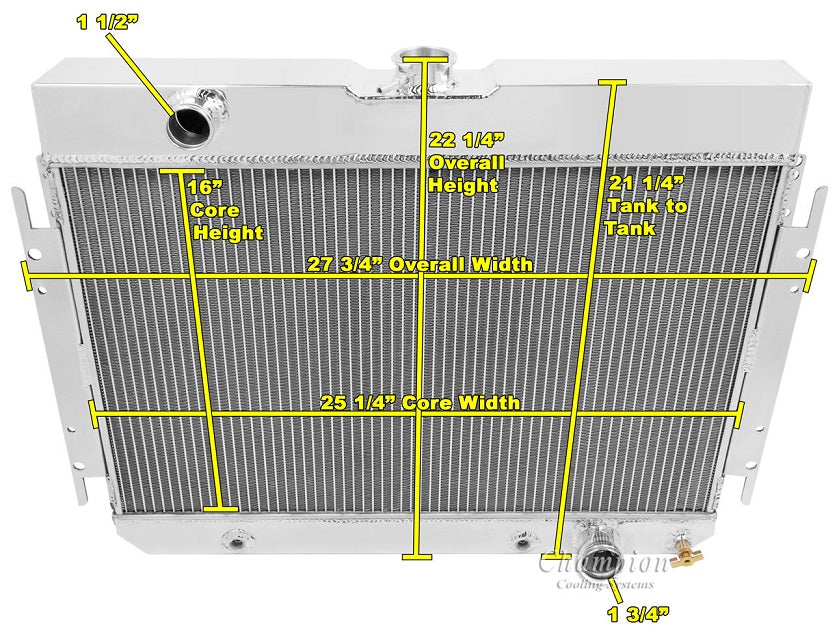

MC289 Radiator Dimensions:
Total: 21.75" tall x 27.75" wide (including brackets)
Core: 16" tall x 25.25" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Aluminum shroud available (sold separately)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
