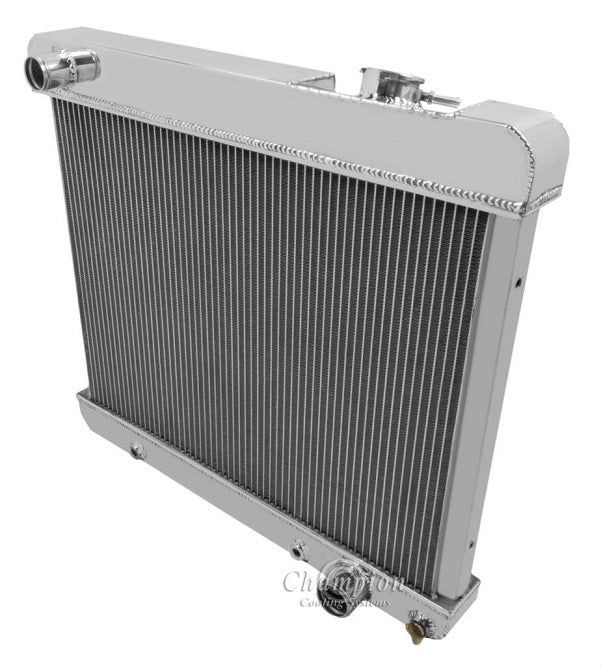

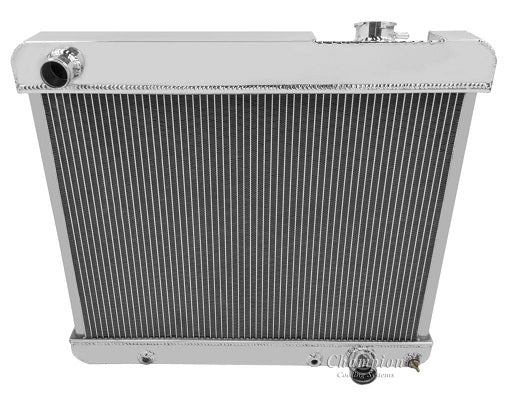

Champion All Aluminum Radiator
4-Row Core Polished Tanks | Cools up to 700hp
Due to the thickness of these tanks your saddles may not fit

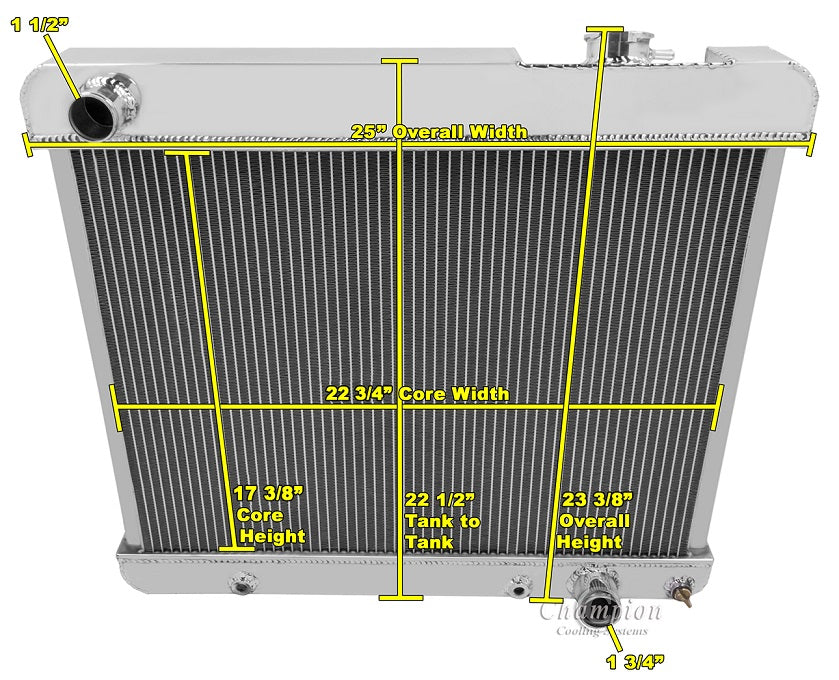

MC284 Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.5" tall x 22.75" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick
Saddle Mounted
13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare )
Custom Ledfoot Racing Aluminum Shroud available (sold separately)
When using electric fans:
Two 12" Electric fans or one 16" fan recommended for this core size (sold separately)
4-Row Core Polished Tanks | Cools up to 700hp
Due to the thickness of these tanks your saddles may not fit
MC284 Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.5" tall x 22.75" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick
Saddle Mounted
13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare )
Custom Ledfoot Racing Aluminum Shroud available (sold separately)
When using electric fans:
Two 12" Electric fans or one 16" fan recommended for this core size (sold separately)
