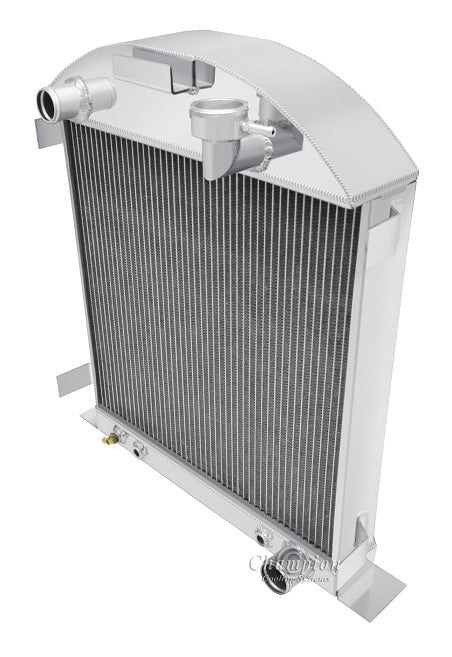

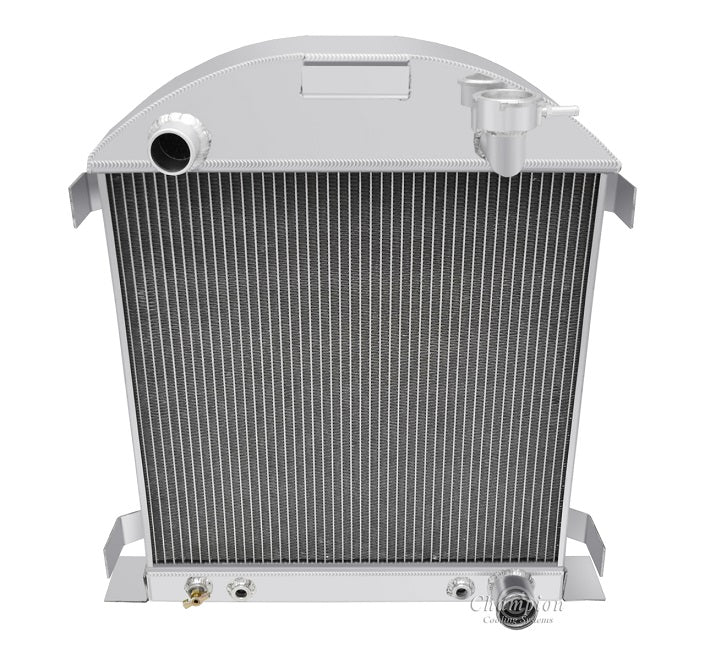

MC2829CH 4 Row

All Aluminum Champion Radiator
Chevy / Mopar Inlet and outlet set up
4 Row Core | Cools up to 900hp

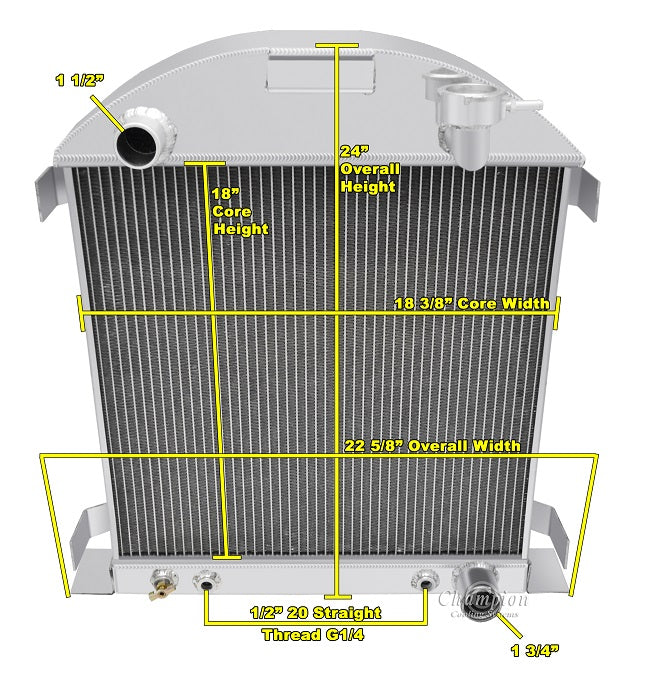

Radiator Dimensions:
Total: 23.75" tall x 22.5" wide (@ bottom brackets)
Core: 18" tall x 18.5" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 4.25" thick (top) / 3" thick (bottom)
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
When using electric fans:
One 16" fan recommended for this core size
