MC259 4 Row

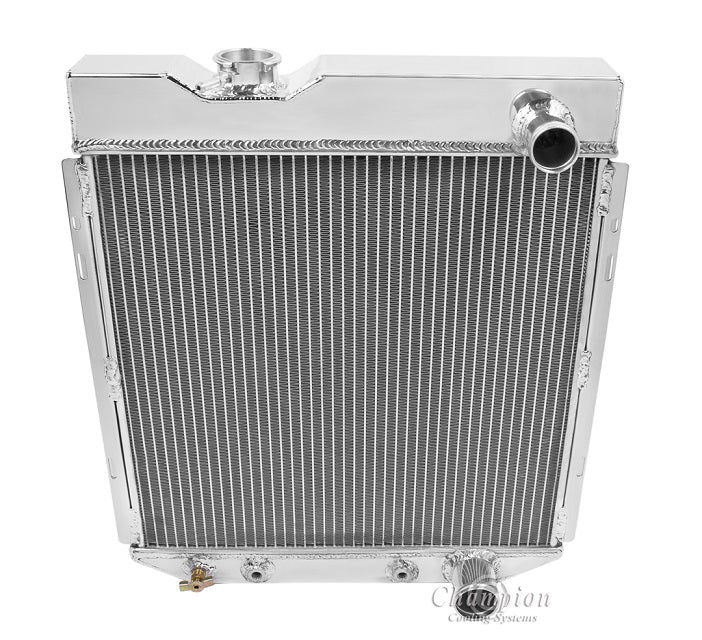

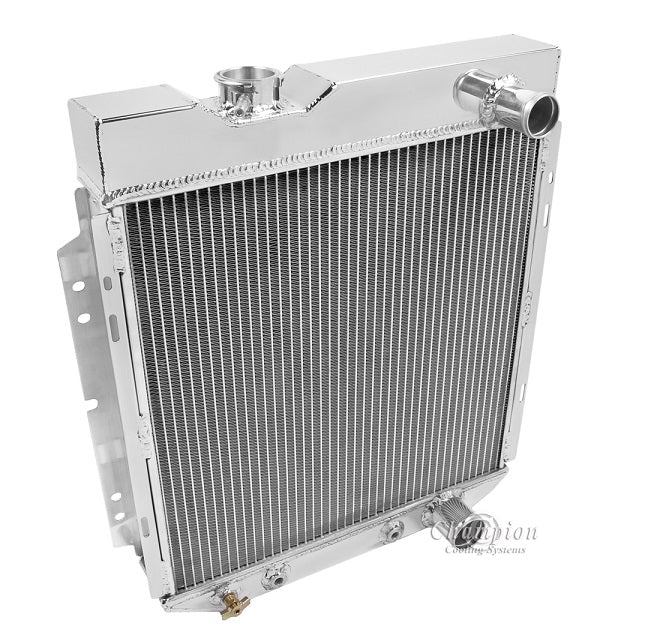

Champion All Aluminum Radiator
4-Row Core Polished Tanks | Cools 550hp

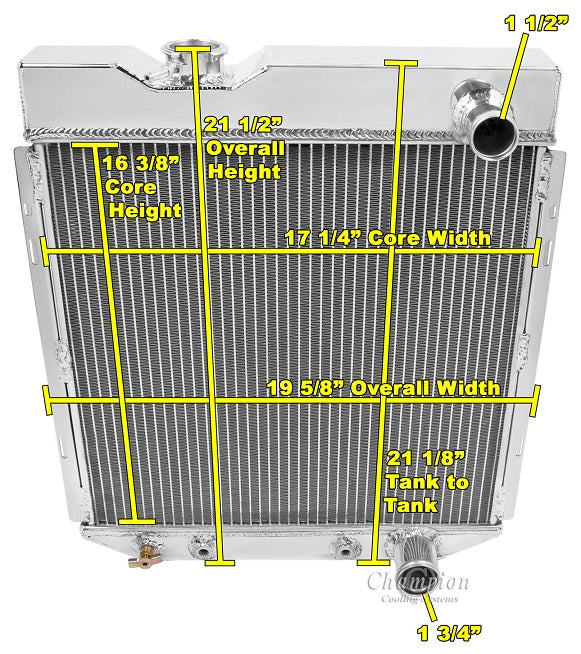

Radiator Dimension:
Total: 21.25" tall (including Brackets) x 19.63" wide
Core: 16.38" tall x 17.25" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Aluminum Fan Shroud for One 16" Electric Fan is also available (sold separately)

Recommended electric fans:
One 16" electric fan recommended for this core size. (sold separately)

Note: When buying our 16" fan, make sure there's room for the 3.5" Fan thickness
