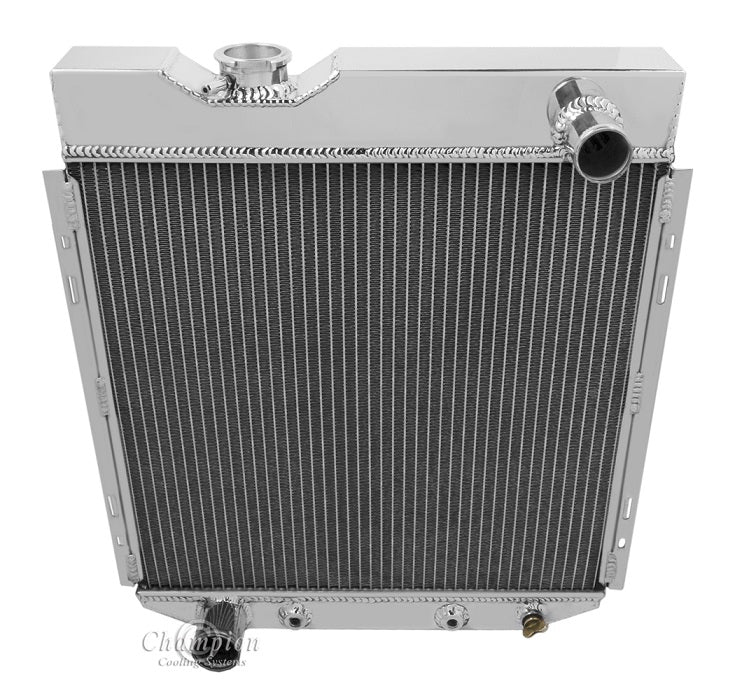

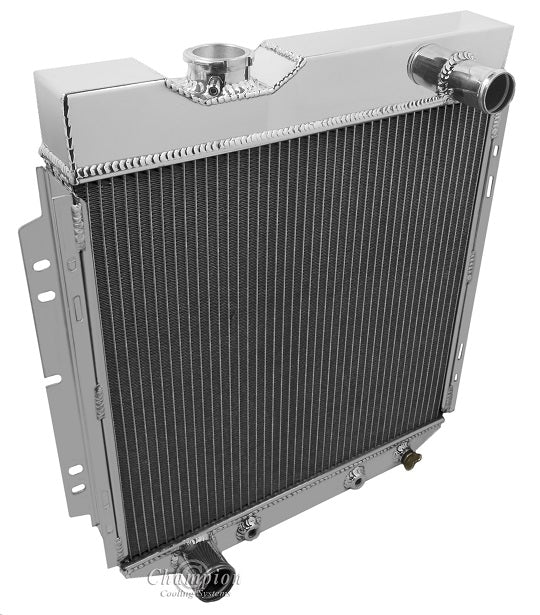

MC251 4 Row

Champion All Aluminum Radiator
4-Row Core Polished tanks | 550hp rating

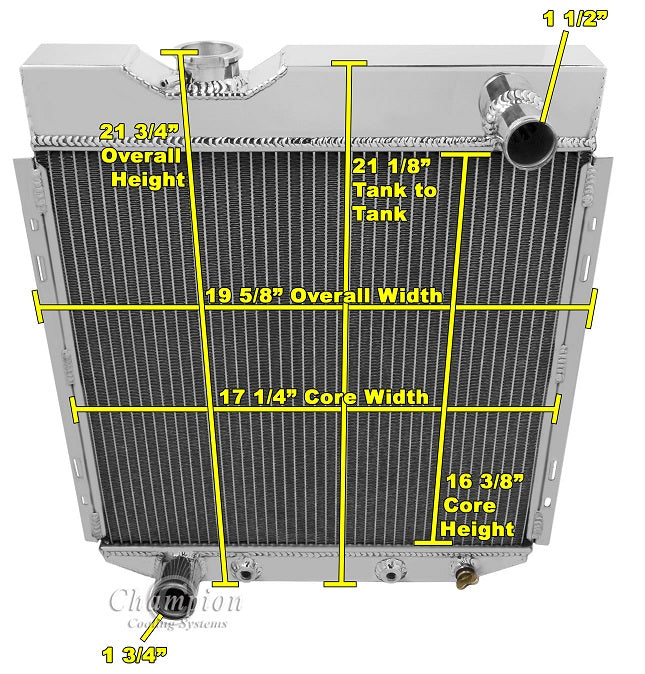

Radiator Dimensions:
Total: 21.75" tall x 19.63"wide (including brackets)
Core: 16.38" tall x 17.25" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Aluminum Fan Shroud for One 16" Electric fan is also available (sold separately)

Recommended Cooling Fans:
16" Electric Cooling Fan (sold separately)

Note: When buying 16" Electric Fans make sure there's room for the Fan thickness
