Description

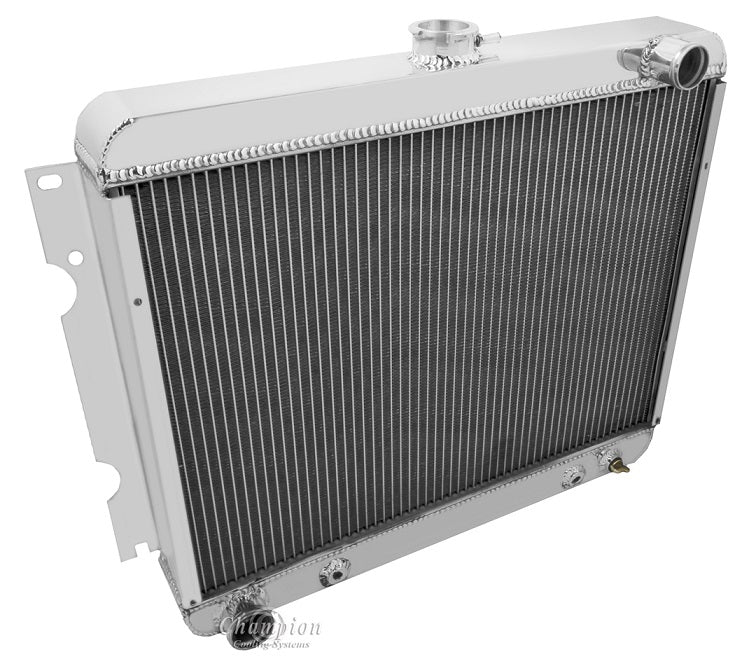

Champion All Aluminum Radiator Plus

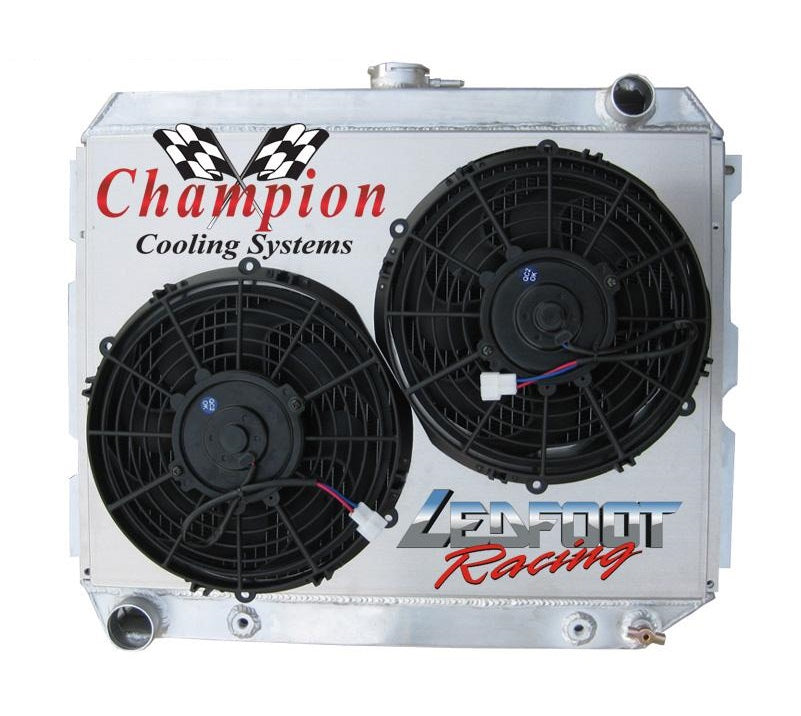

Ledfoot Racing Shroud & 2-10" SPAL Fans
Verify clearance for electric fan
Total thickness: 6.75" to fan motor
4-Row Core: Polished Tanks | 700hp Rating

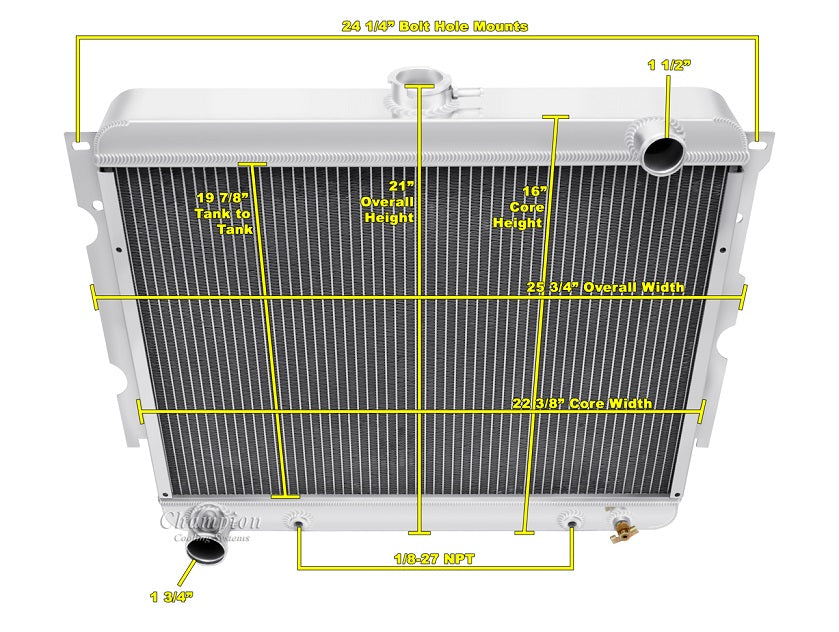

Radiator Dimensions:
Total: 21.25" tall x 25.75" wide (including brackets)
Core: 16.38" tall x 22.38" wide x 3.13" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.25" thick
Tubes: 0.63" thick
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Note: This radiator is shorter than OEM (To fit multiple mopar cars)
5.5" in the center of the fans
Ledfoot Racing Shroud & 2-10" SPAL Fans
Verify clearance for electric fan
Total thickness: 6.75" to fan motor
4-Row Core: Polished Tanks | 700hp Rating
Radiator Dimensions:
Total: 21.25" tall x 25.75" wide (including brackets)
Core: 16.38" tall x 22.38" wide x 3.13" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.25" thick
Tubes: 0.63" thick
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Note: This radiator is shorter than OEM (To fit multiple mopar cars)
5.5" in the center of the fans
