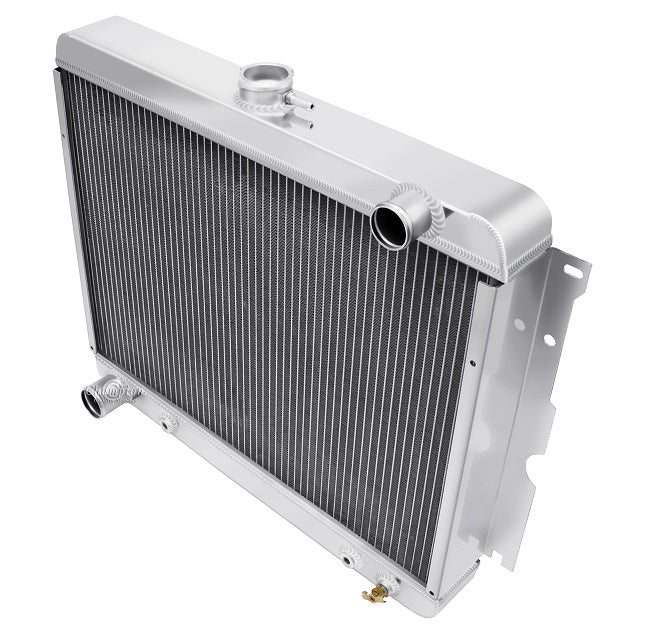

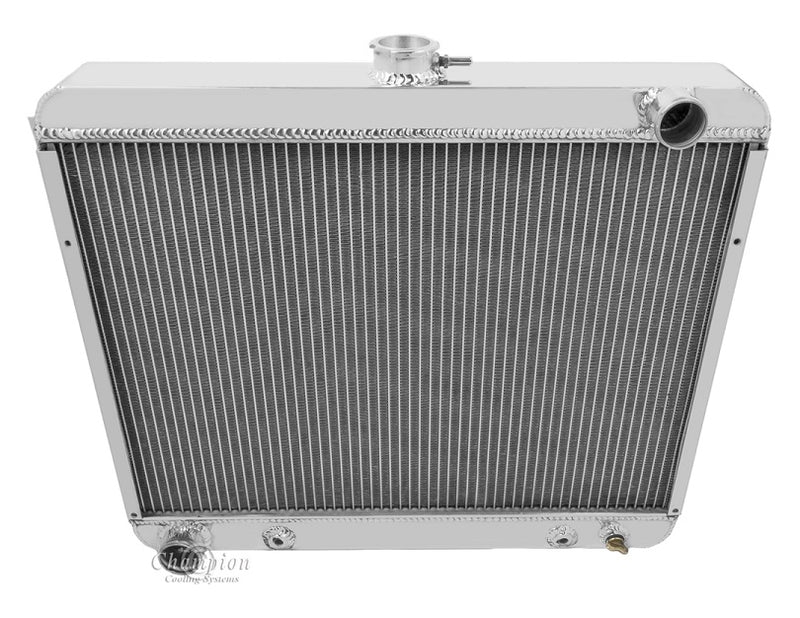

MC2375 4 Row

All Aluminum Champion Radiator
4-Row Core: Polished Tanks | Cools up to 700hp

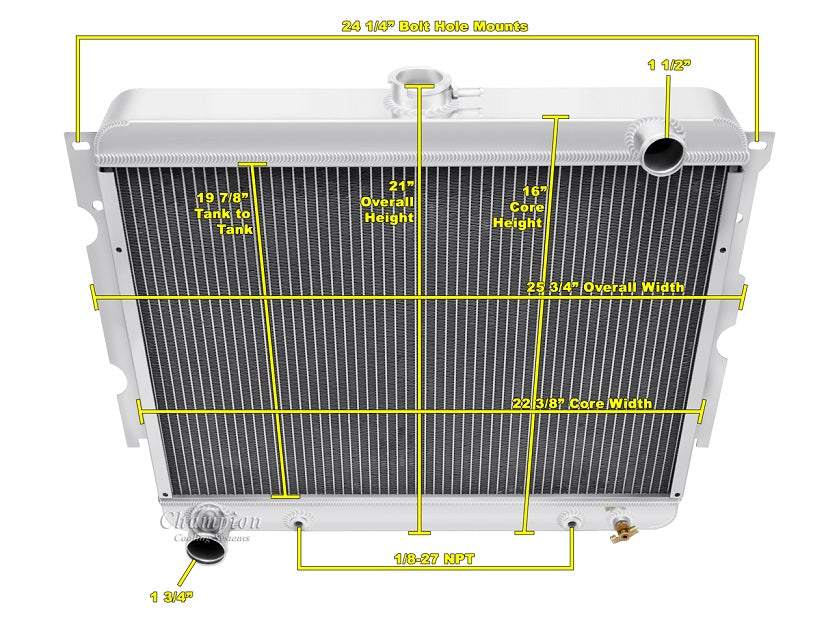

MC2375 Radiator Dimensions:
Total: 21.25" tall x 25.75" wide (including brackets)
Core: 16.38" tall x 22.38" wide x 3.13" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.25" thick
Tubes: 0.63" thick

Bracket Mounted
(No OEM Shroud support)

13 lb. Radiator Cap included
Transmission Cooler Included (1/8- 27NPT)
Aluminum Shroud available (sold separately)

Note: This radiator is shorter than OEM (To fit multiple mopar cars)

When using electric fans (sold separately):
Two 10" Electric fans recommended
