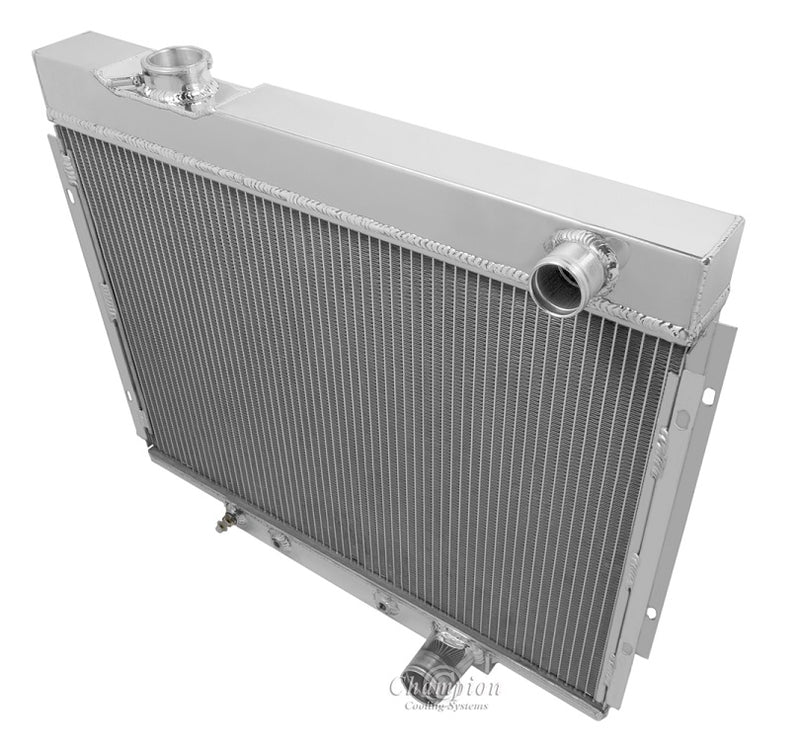

MC2338 4-Row 24" core

Champion All Aluminum Radiator
4-Row Core | Cools up to 650hp

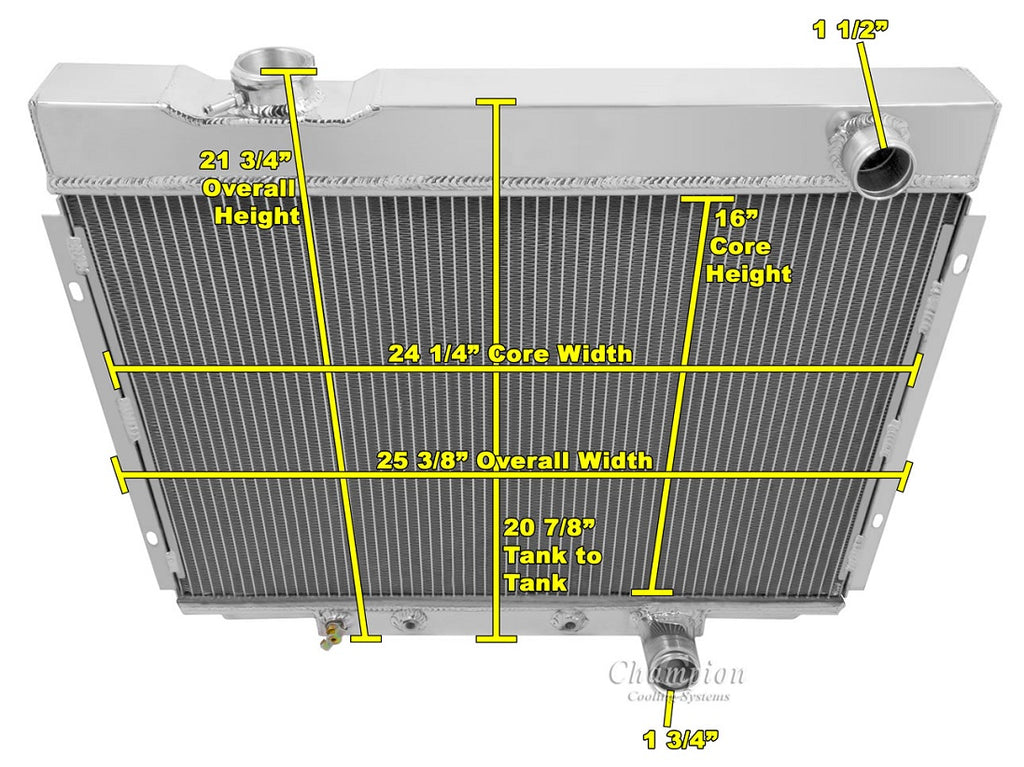

Radiator Dimensions:
Total: 21.75" tall (with cap)x 25.38" wide (with brackets)
Core: 16" tall x 24.25" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator cap included
Transmission Cooler included (1/8-27 NPT)
