MC2284 4 Row

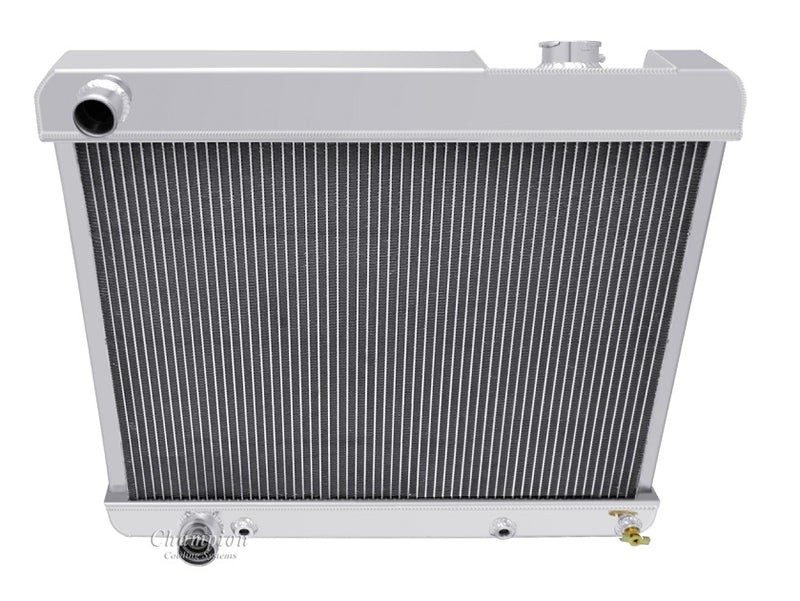

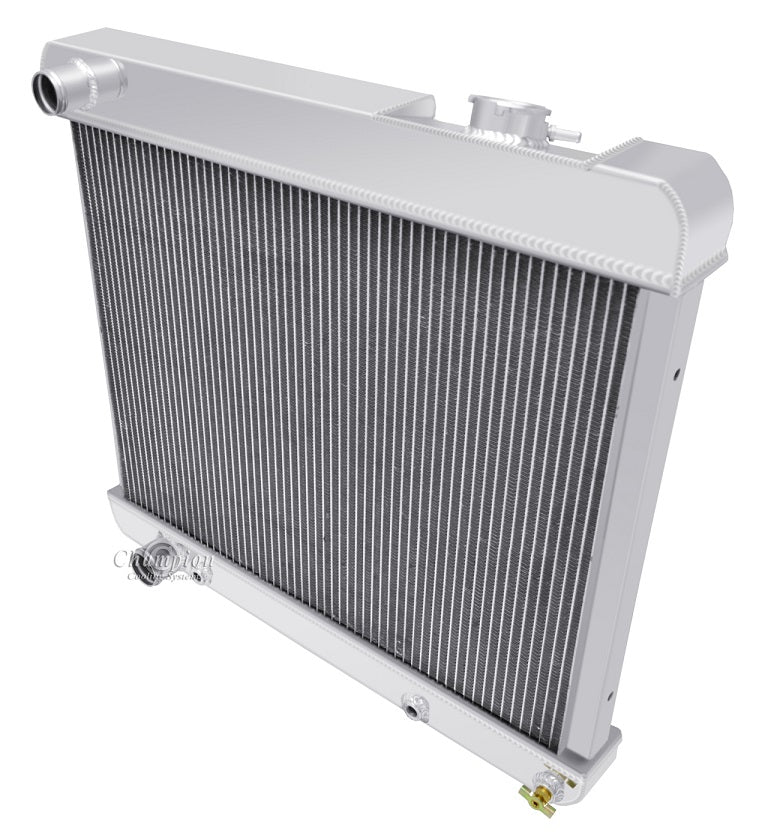

Champion All Aluminum Radiator
4-Row Core | Cools up to 700hp
Make sure these tanks are not too thick

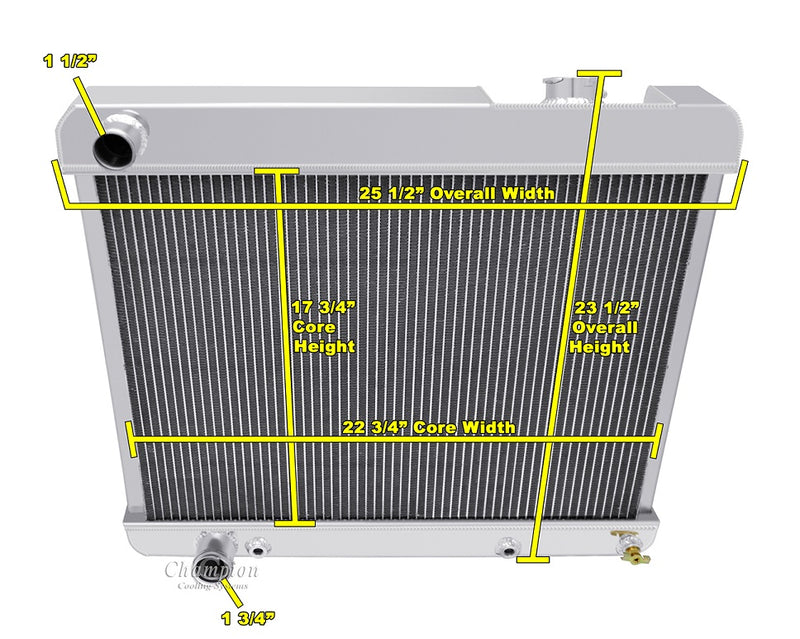

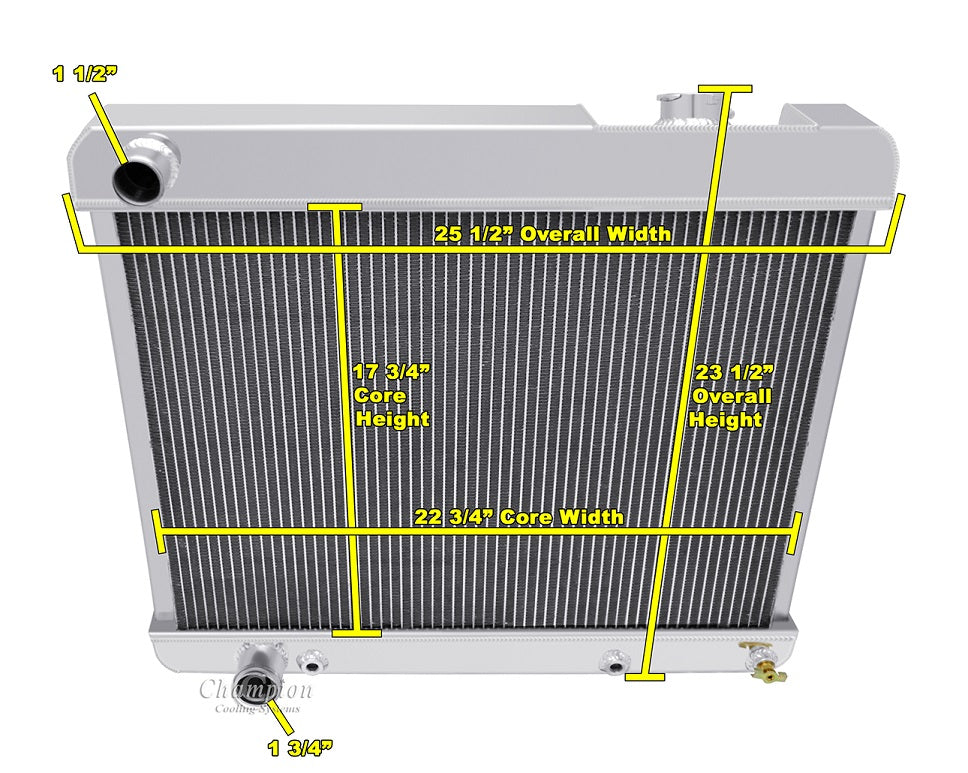

Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.38" tall x 22.75" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" driver side
Tanks: 3.13" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud available for 16" fan (sold separately)

When using electric fans:
One 16" fan two 12" Electric fans recommended for this core size (sold separately)
