Description

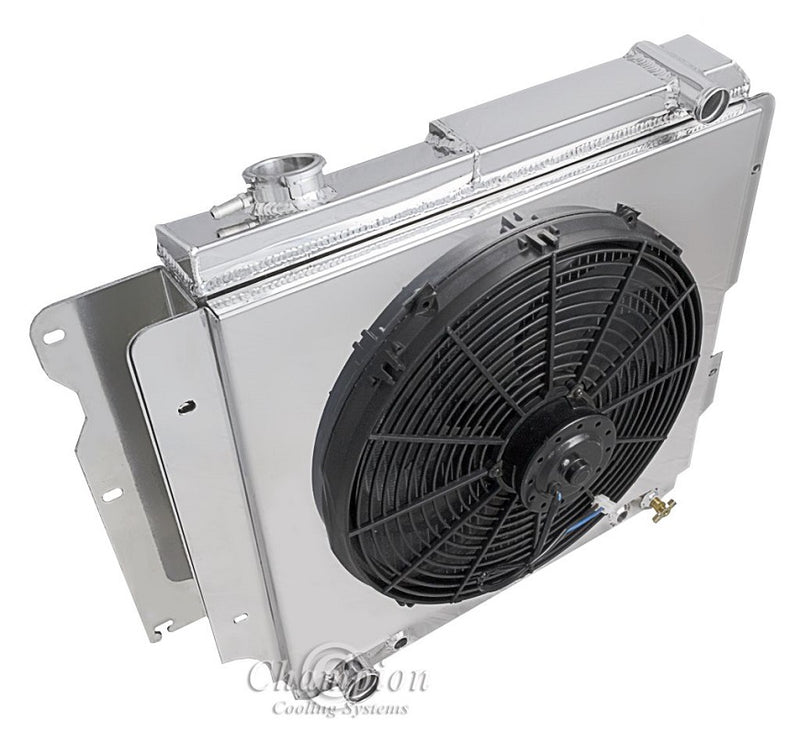

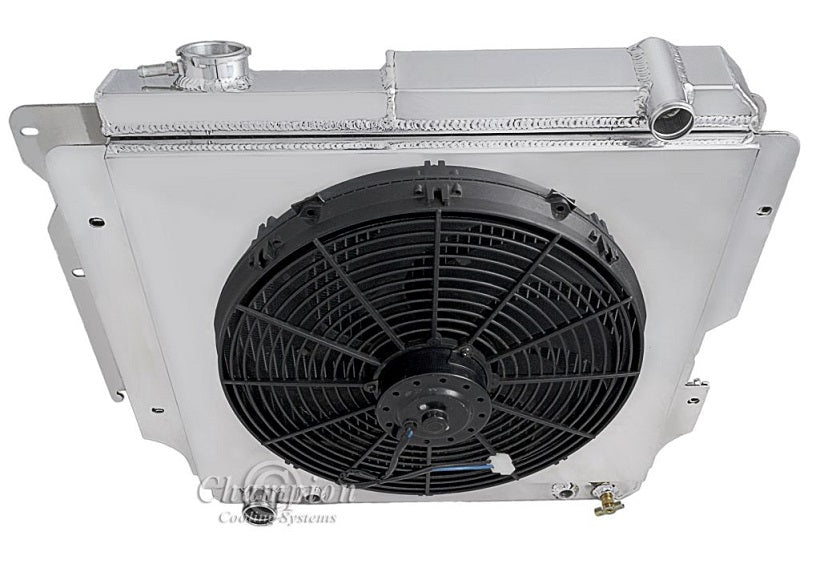

Champion All Aluminum Radiator Plus
Shroud and 16" SPAL-1516 Medium Profile Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
4-Row Core; Polished Tanks | Cools up to 650hp
Total thickness is 6" may not work with 6 cyl
Call with questions

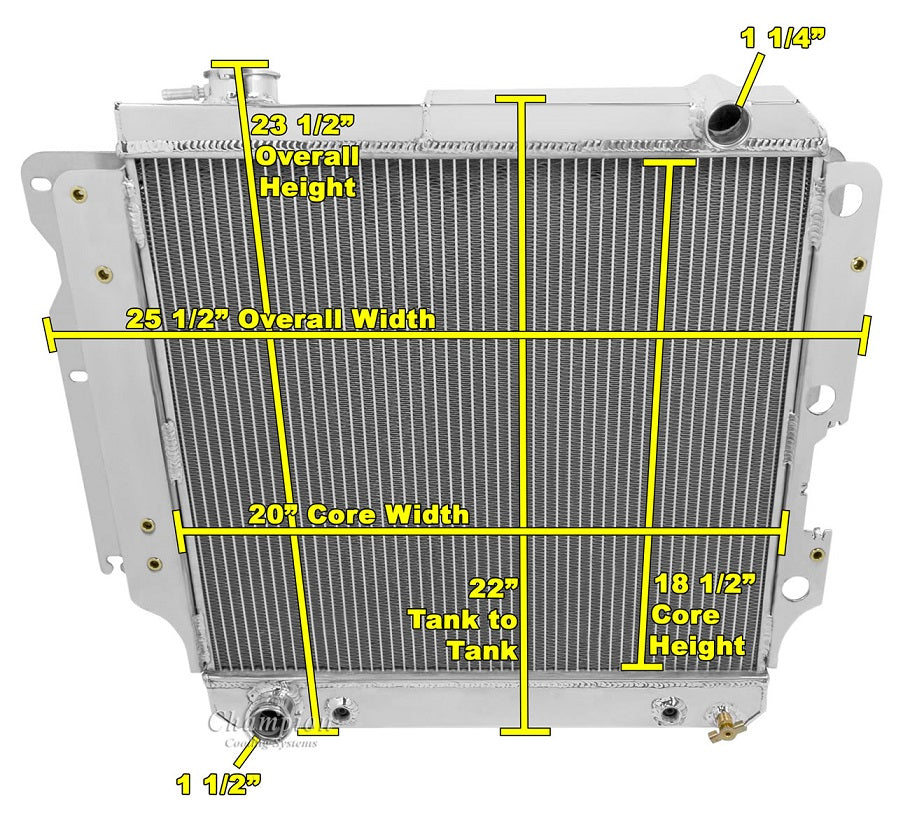

MC2101 Radiator Dimensions:
Total: 23.5" tall x 25.5" wide x 3.13" deep
Core: 18.5" tall x 20" wide x 2.75" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 3.13" thick
Tubes: 0.63" thick
Total Thickness: 6"
Bracket Mounted
Rivit Nuts in shroud bracket: size M6
13 lb. Radiator Cap included
Transmission Cooler Included (M16-1.5)
LIFETIME WARRANTY
PRICE MATCH GUARANTEE
