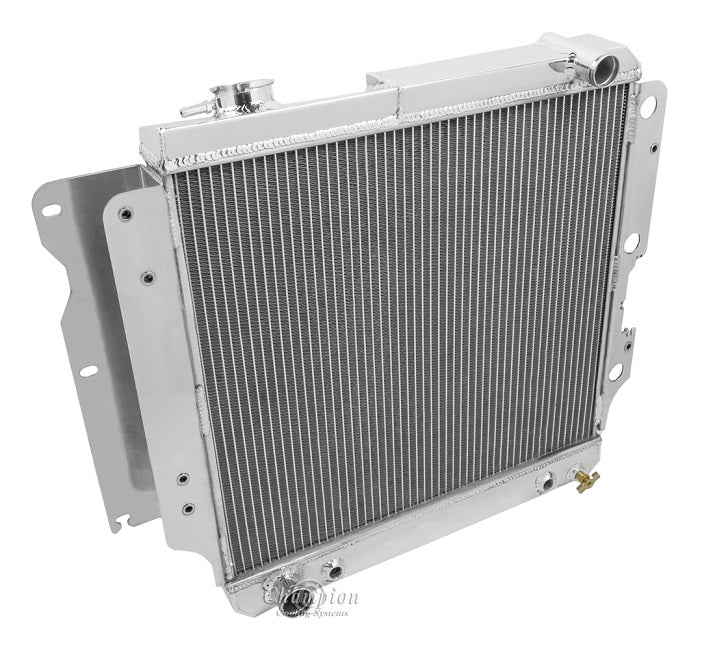

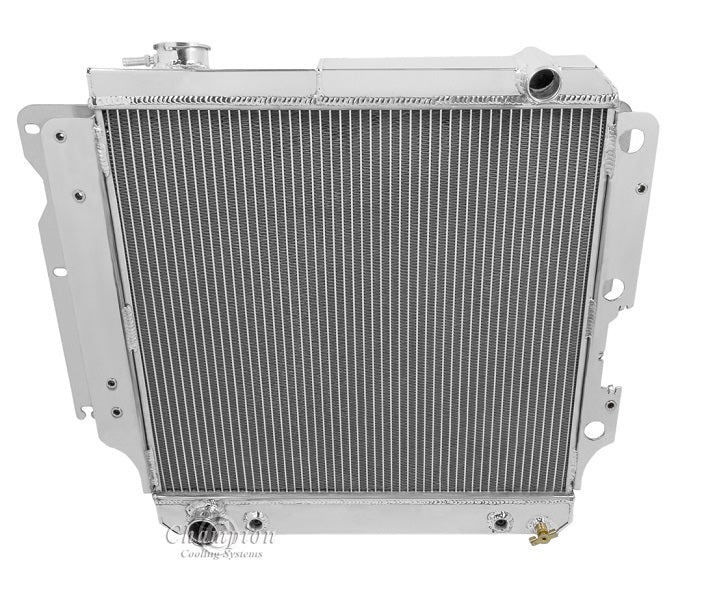

MC2101 4 Row

Champion All Aluminum Radiator
4-Row Core: Polished Tanks | Cools up to 650hp

3.25" thick check your available space
(does not fit well with Stock 6 cyl)

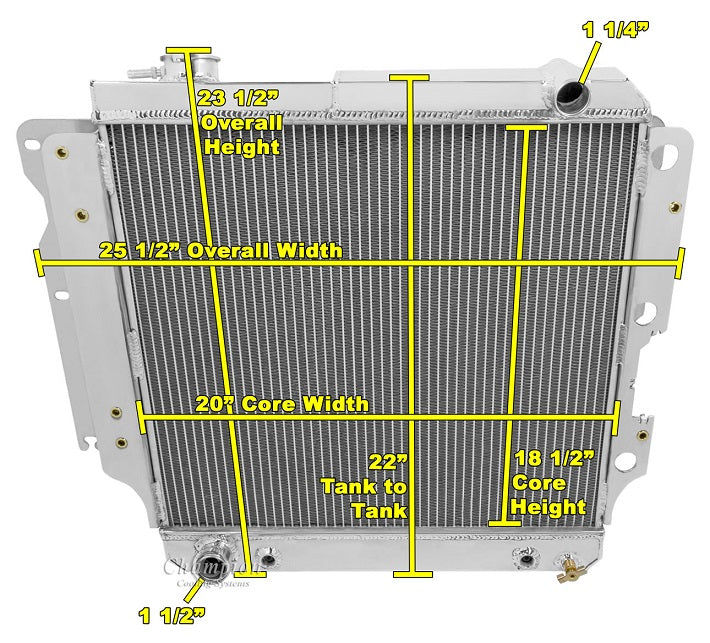

MC2101 Radiator Dimensions:
Total: 23.5" tall x 25.5" wide x 3.13" deep
Core: 18.5" tall x 20" wide x 2.75" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted
Rivit Nuts in shroud bracket: size M6

13 lb. Radiator Cap included
Transmission Cooler Included (5/8-18 NPT)
Aluminum shroud is also available (sold separately)

When using electric fans (sold separately):
One 16" Electric fan recommended for this core size
