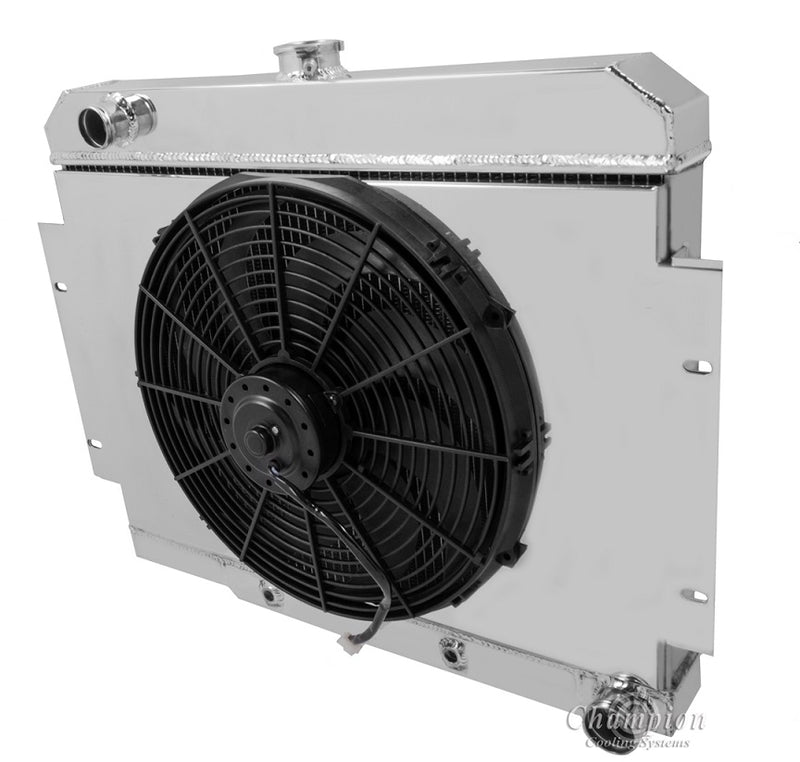

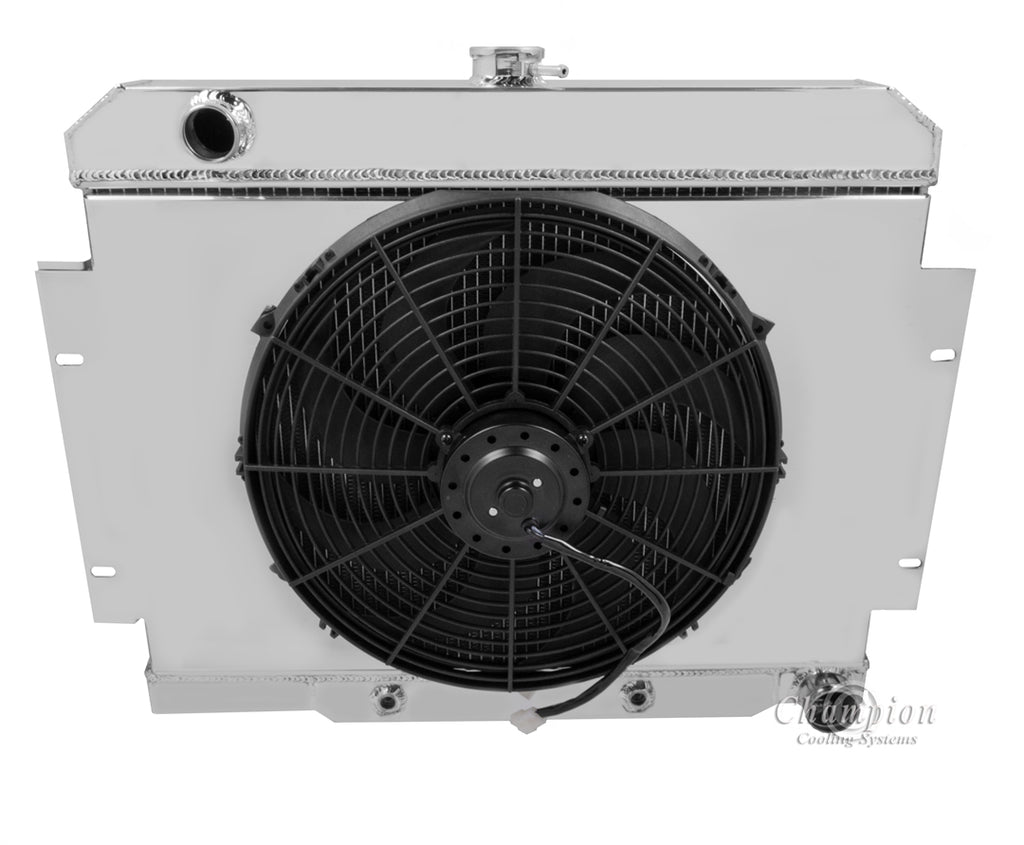

MC1919-1919FS16 4 Row Combo

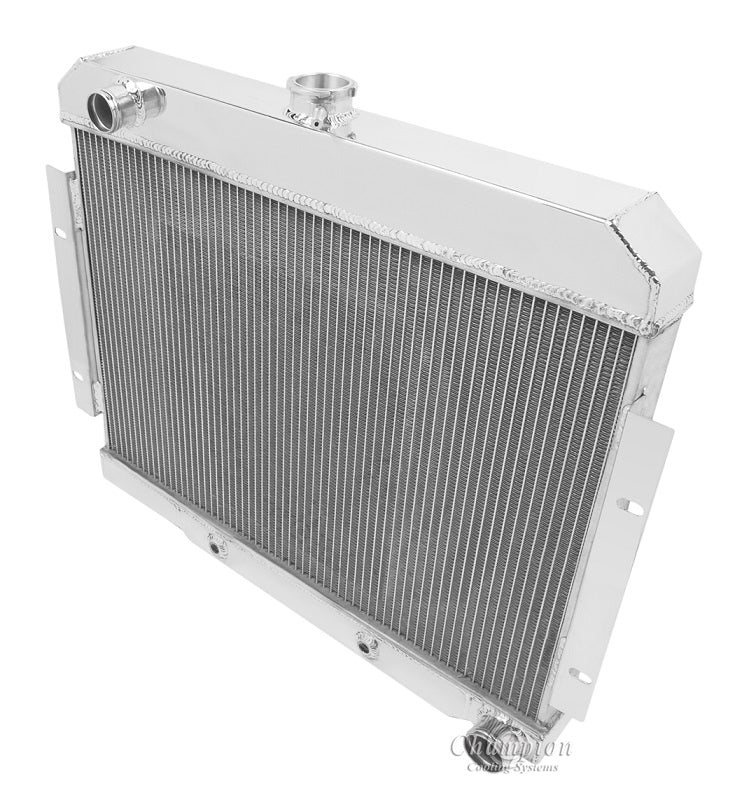

Champion All Aluminum Radiator Plus
Ledfoot Racing Aluminum Shroud & 16" Pro-Series Fan
Verify clearance for electric fan (3.5" thick fan)

4-Row Core; (Chevy Conversions) | Cools up to 650hp

Radiator Dimensions:
Total: 22" tall x 27" wide (with brackets)
Core: 16” tall x 24" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.63" thick
Total Thickness: 6.5"

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
