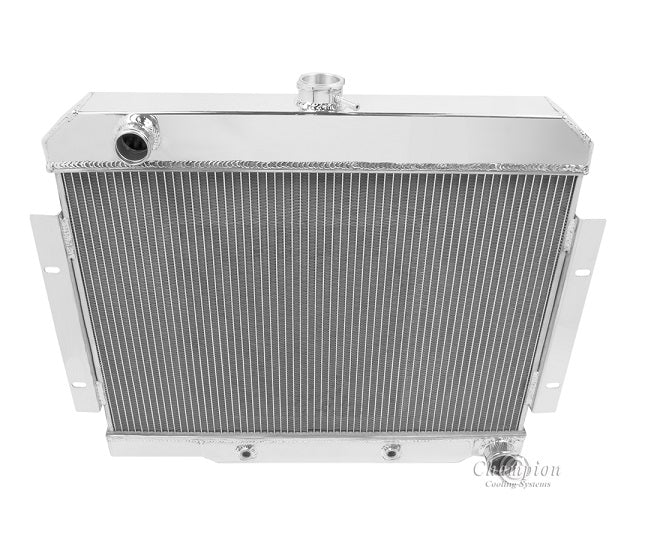

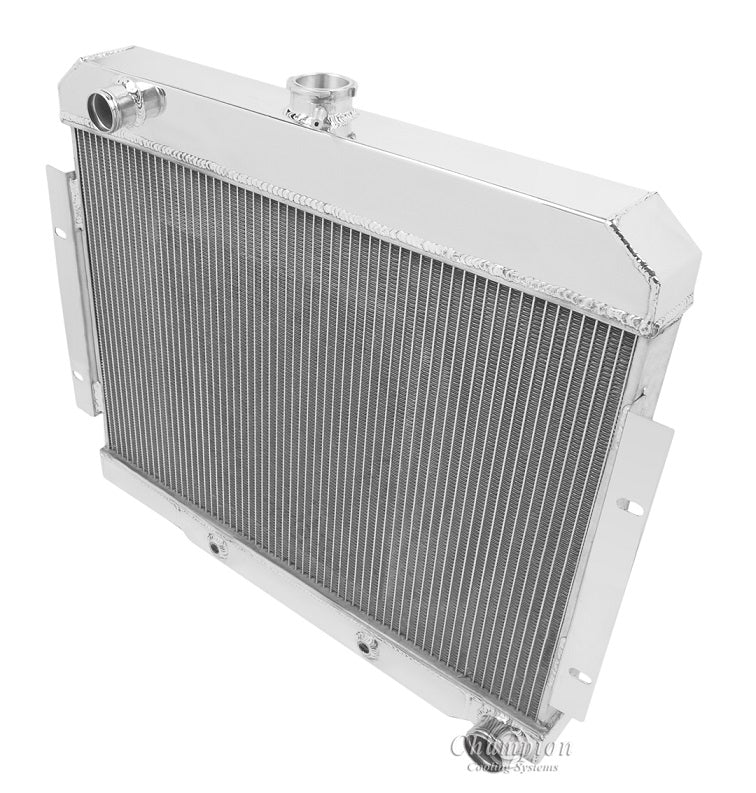

MC1919 4 Row

Champion All Aluminum Radiator
4-Row Core; (Chevy Conversions) | Cools up to 650hp

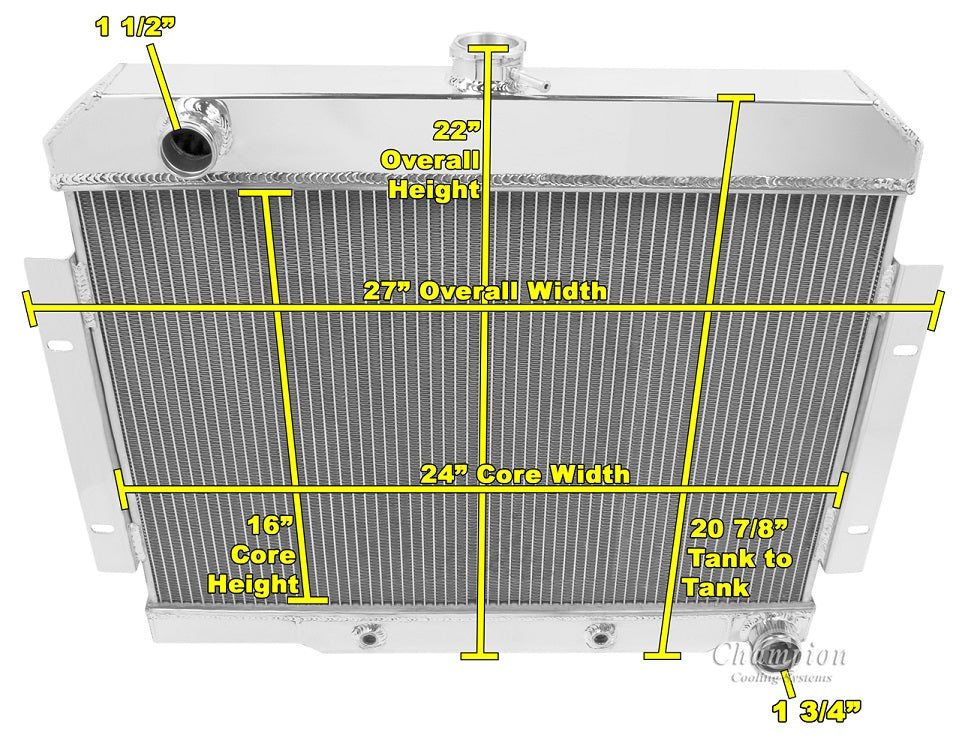

Radiator Dimensions:
Total: 22" tall x 27" wide (with brackets)
Core: 16” tall x 24" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Fan Shroud is also available (sold separately)

One 16" or two 11" Electric fans recommended for this core size
