Description

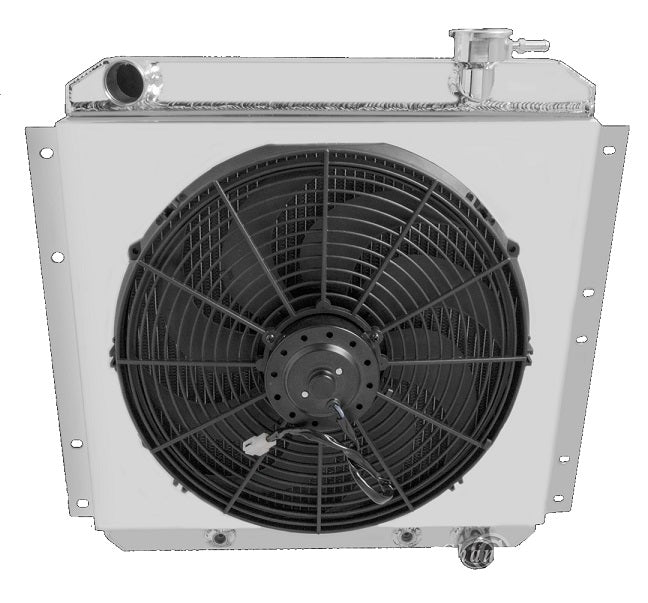

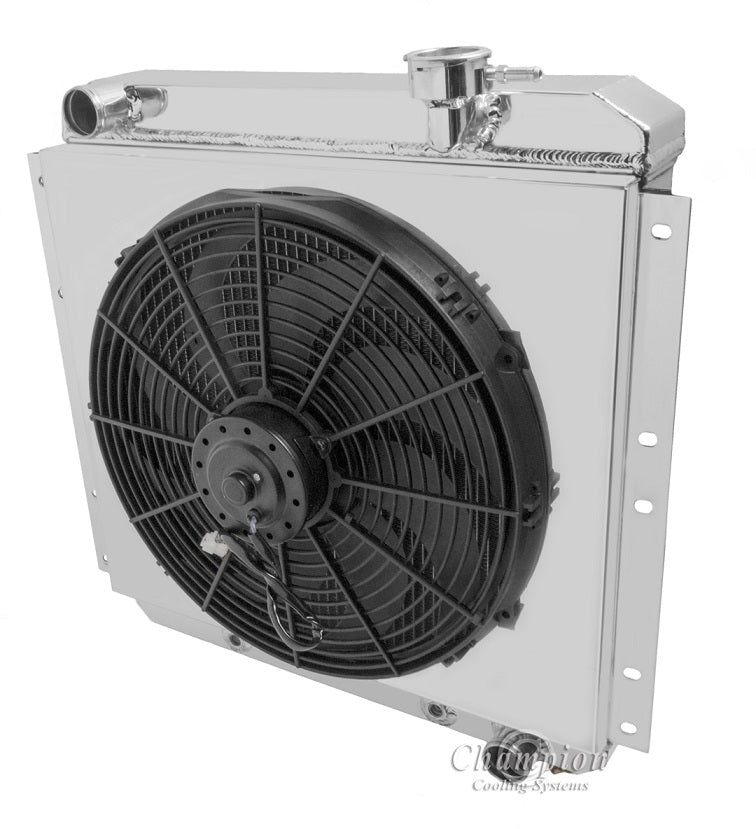

All Aluminum Champion Radiator PLUS
Aluminum Shroud and 16" Pro-Series Fan
4-Row Core | Cools up to 600hp | Polished Tanks
Due to these tanks being thicker, minor mods may be needed to fit the core support.

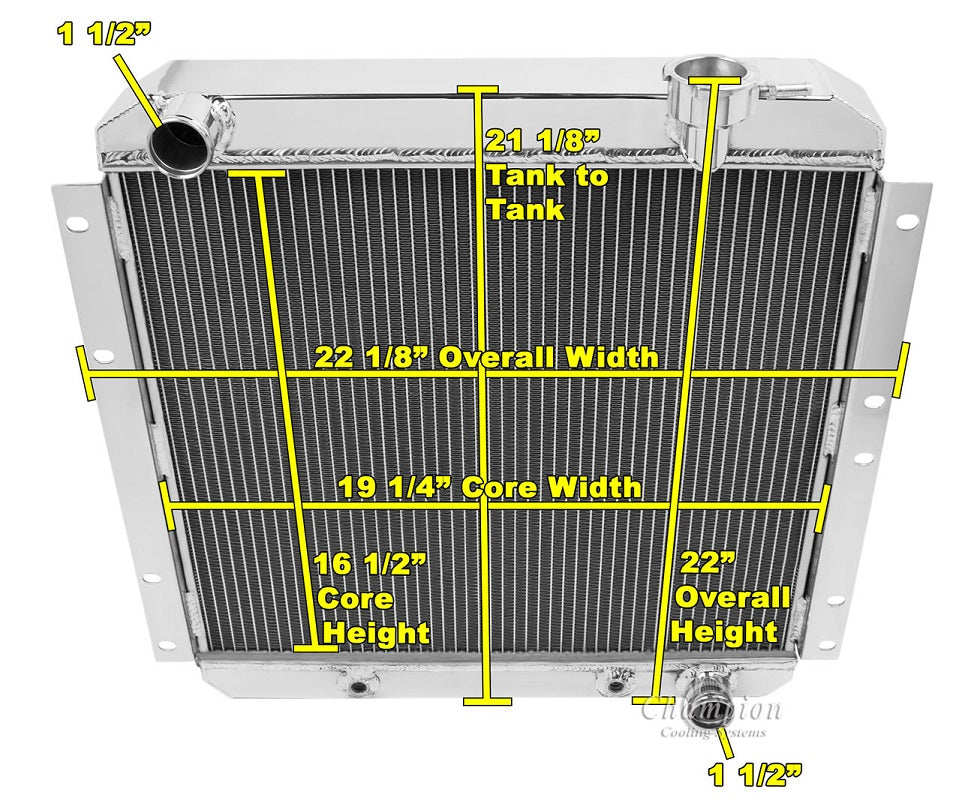

Radiator Dimensions:
Total: 22" tall x 22.13" wide
Core: 17.13" tall x 19.5" wide x 2.75" thick
Inlet: 1.5" drivers side
Outlet: 1.5" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick
Total Thickness: 6.5"
Bracket Mounted
(core support not included)
13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud and 16" Pro-Series Fan
4-Row Core | Cools up to 600hp | Polished Tanks
Due to these tanks being thicker, minor mods may be needed to fit the core support.
Radiator Dimensions:
Total: 22" tall x 22.13" wide
Core: 17.13" tall x 19.5" wide x 2.75" thick
Inlet: 1.5" drivers side
Outlet: 1.5" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick
Total Thickness: 6.5"
Bracket Mounted
(core support not included)
13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
