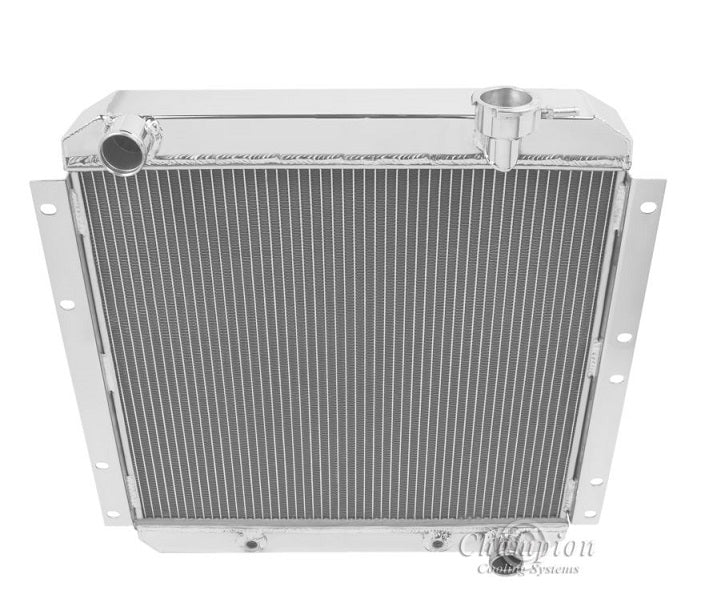

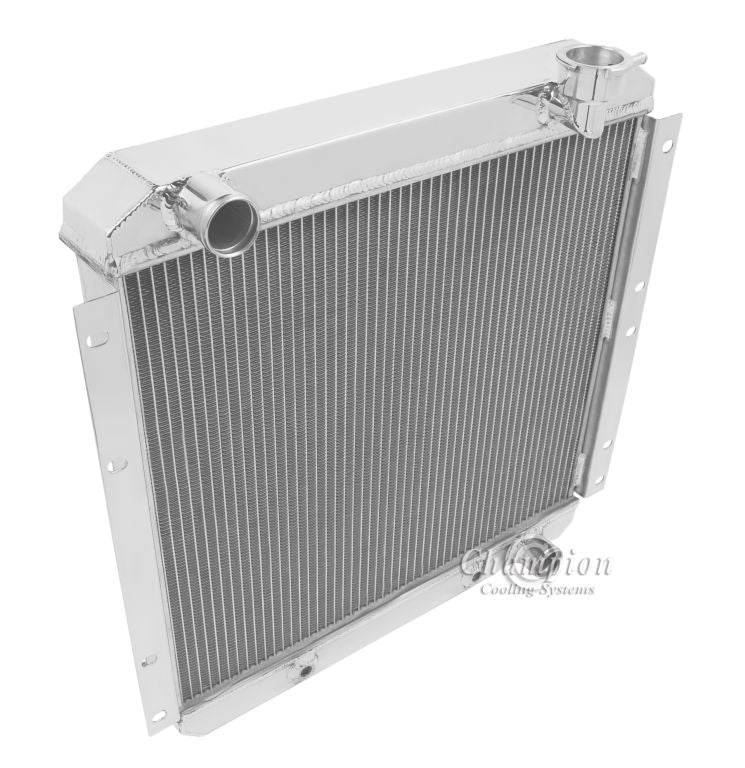

MC180 4 Row

All Aluminum Champion Radiator
4-Row Core | Cools up to 600hp | Polished Tanks
Due to these tanks being thicker, minor mods may be needed to fit the core support.

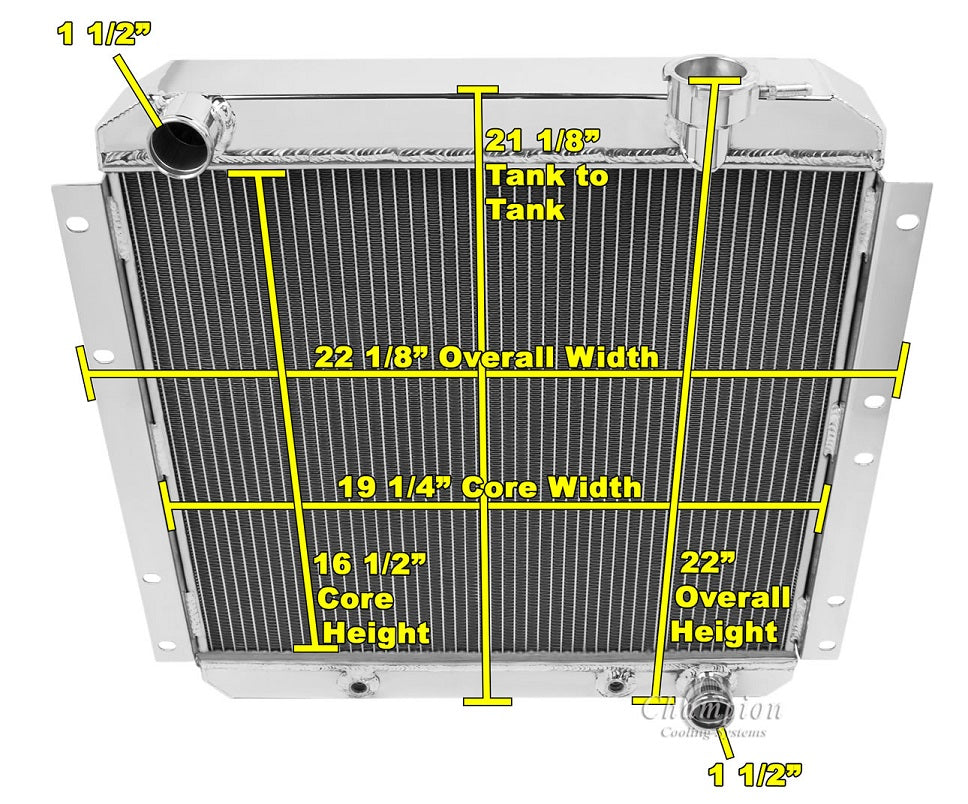

Radiator Dimensions
Total: 22" tall x 22.13" wide (with brackets)
Core: 16.5" tall x 19.25" wide x 2.75" deep
Inlet: 1.5" drivers side
Outlet: 1.5" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted
(Core support not included)

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud is also available (sold separately)

When using electric fans:
One 16" Electric fans recommended for this core size (sold seperately)
