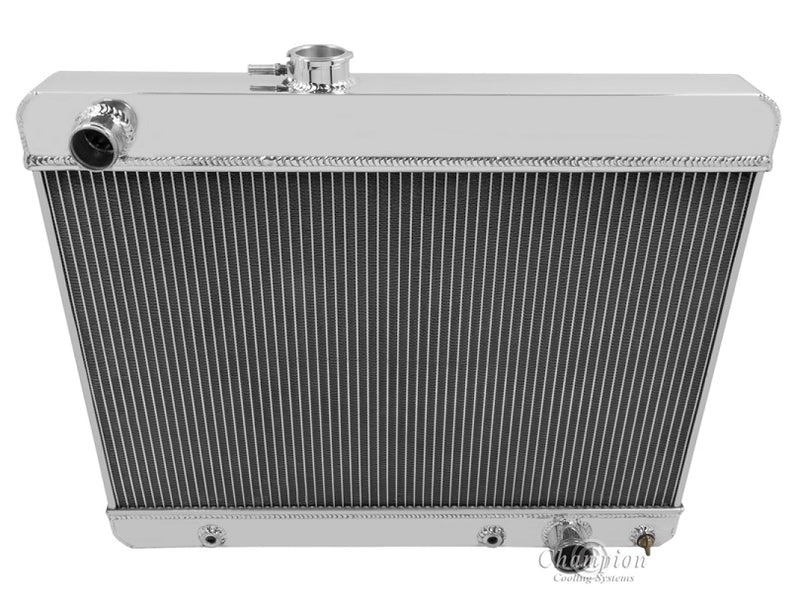

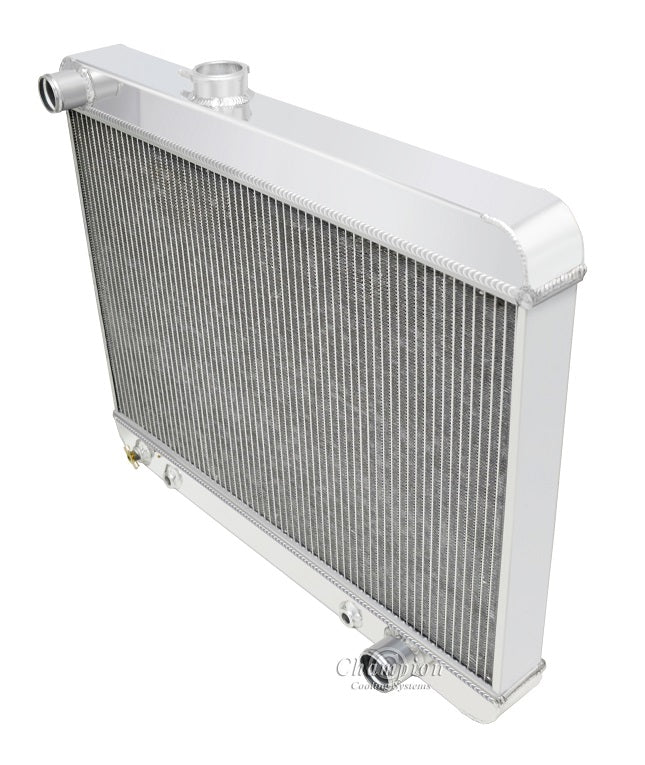

MC1680S 4 Row 20" Tall

Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp
Please verify you radiator height, we have 20", 20.5"
and 22.5" tank to tank heights. Call for Assistance.

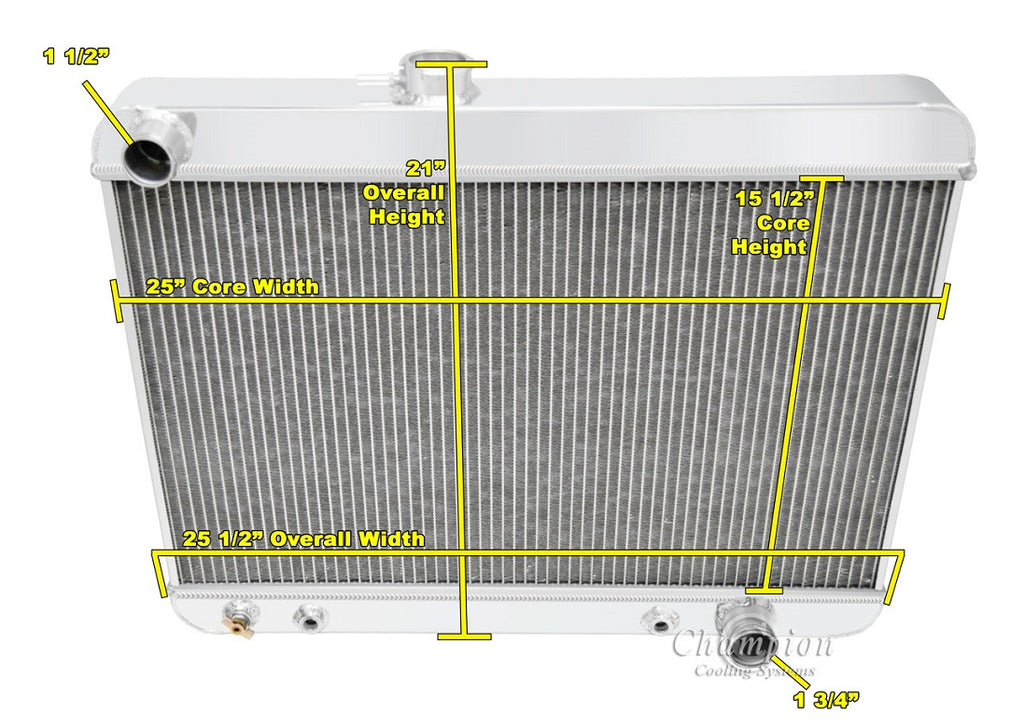

Radiator Dimensions:
Total: 20" tall 21.25" (with cap) x 25.5" wide
Core: 15" tall x 25" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2"-20 Straight Thread)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
