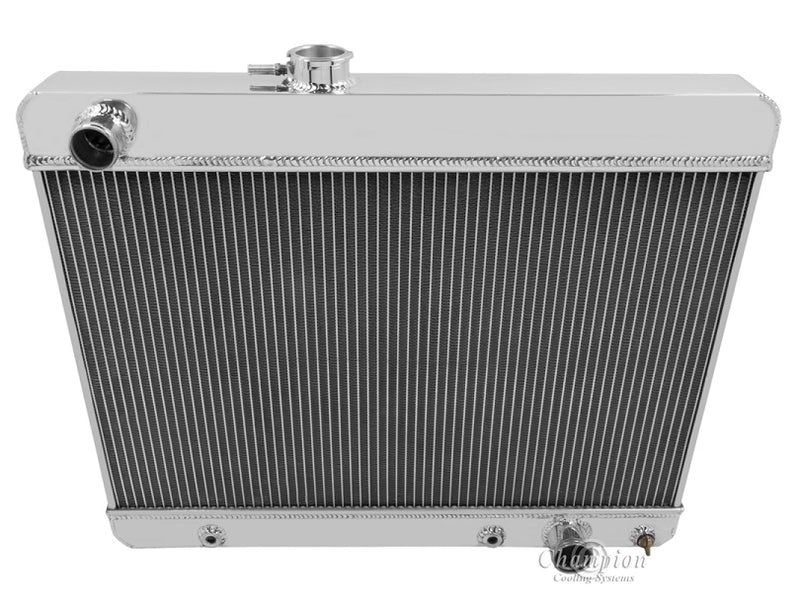

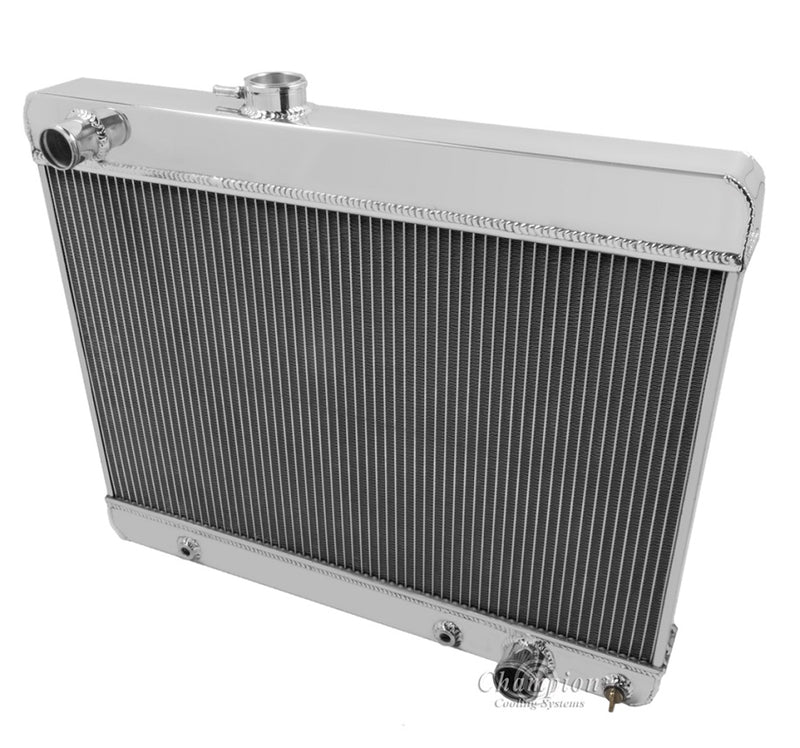

MC1680 4 Row 20.5" Tall

Champion All Aluminum Radiator
4-Row Core | Cools up to 800hp
Please verify you radiator height, we have 20", 20.5"
and 22.5" tank to tank heights. Call for Assistance.
4 Row Tanks are thicker than stock mounts can grab Mods needed

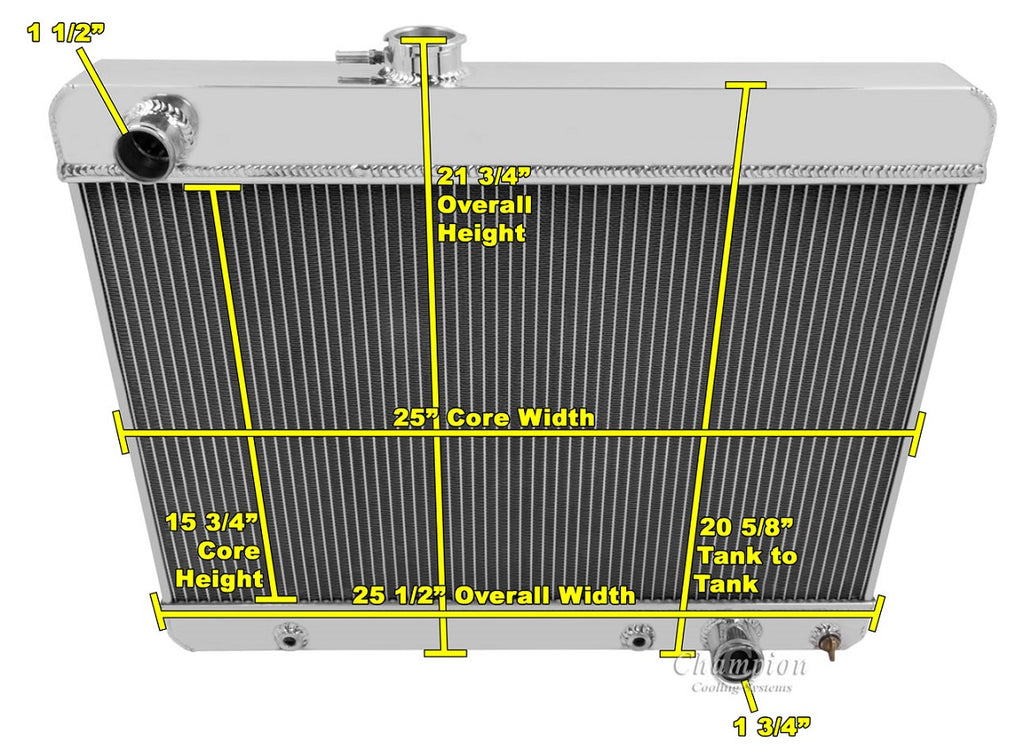

Radiator Dimensions:
Total: 20.5" tall 21.75" (with cap) x 25.5" wide
Core: 15.5" tall x 25" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: (top) 2.75" thick; (bottom) 2.38" thick
Tubes: 0.75" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
When using electric fans:
Two 12" Electric fans or one 16" fan recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:
