MC1661 4 Row

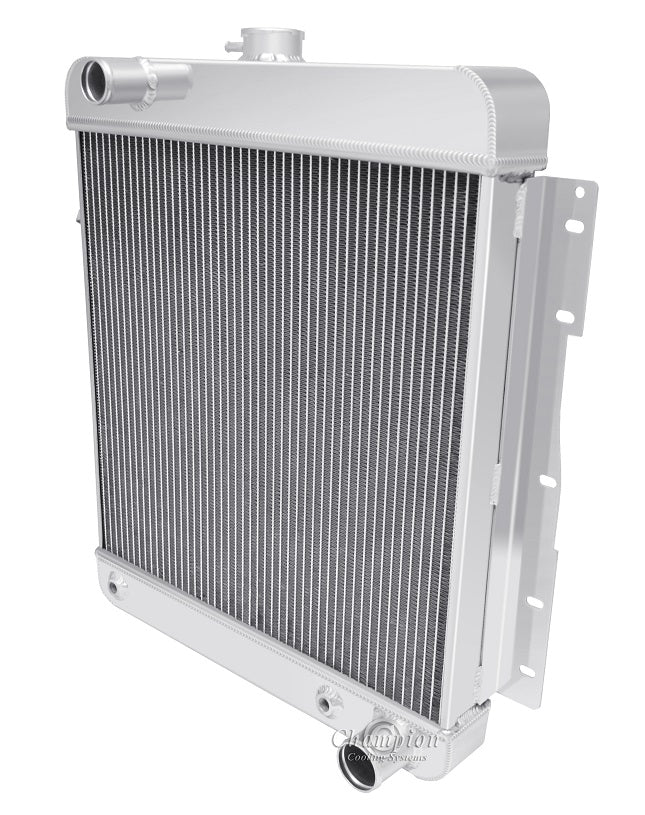

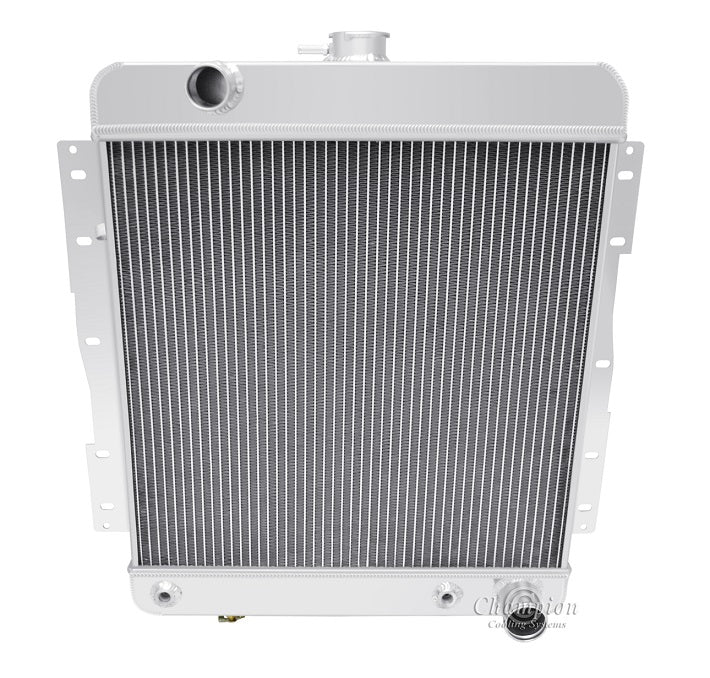

Champion All Aluminum Radiator

4-Row Core | Cools up to 750hp

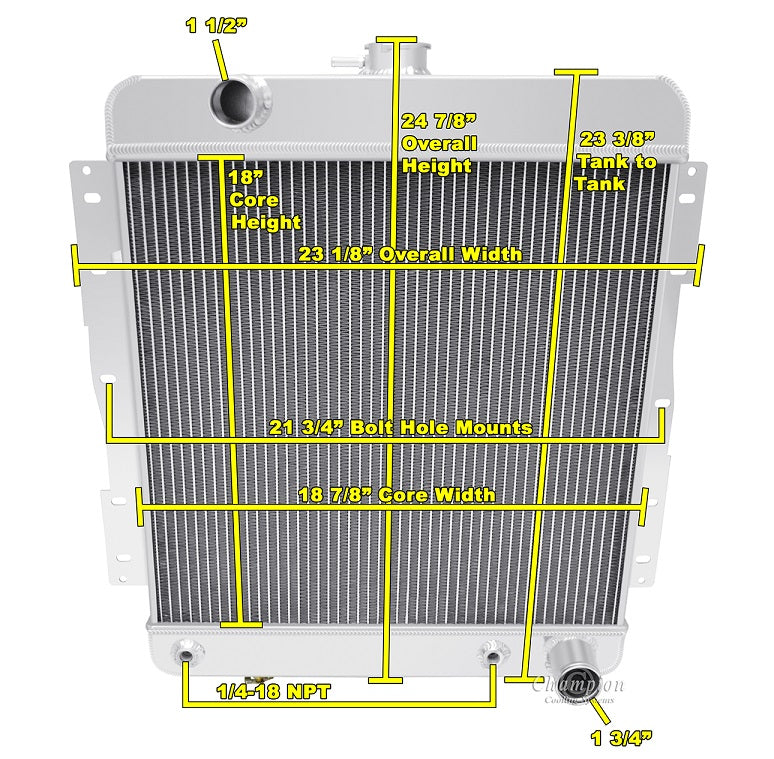

Radiator Dimensions:
Total: 23.75" tall (24.875" with cap) x 23.5" (including brackets)
Core: 18" tall x 18.875" wide x 2.75" thick
Inlet: 1.5" driver
Outlet: 1.75" passenger side
Tanks: Upper tank 3.13"thick
Lower tank 3.13 thick
Tubes: 0.63" thick

Bracket Mounted
Direct Fit Replacement


13lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:
