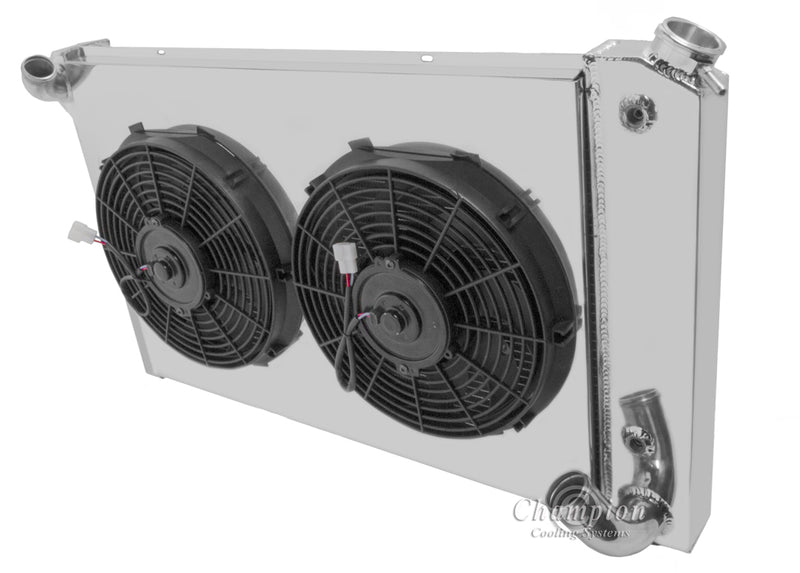

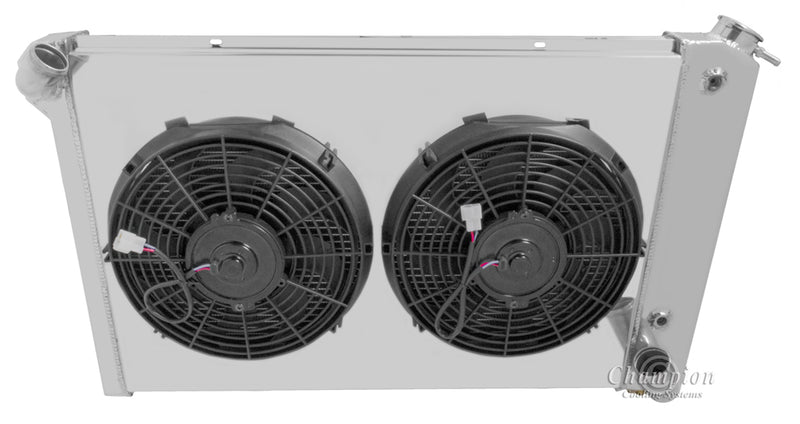

MC1655-1655FS12SP 4 Row Combo

Champion All Aluminum Radiator
Plus Shroud and (2) SPAL-1522 12" fans
Fans larger than shown in photo
4-Row Core | Cools up to 800hp
Note: Automatic Transmissions ONLY. If you need the
small radiator with the U shaped outlet refer to CC6372B
Note: Outlet will hit the oversized sway bar. Call for fix.

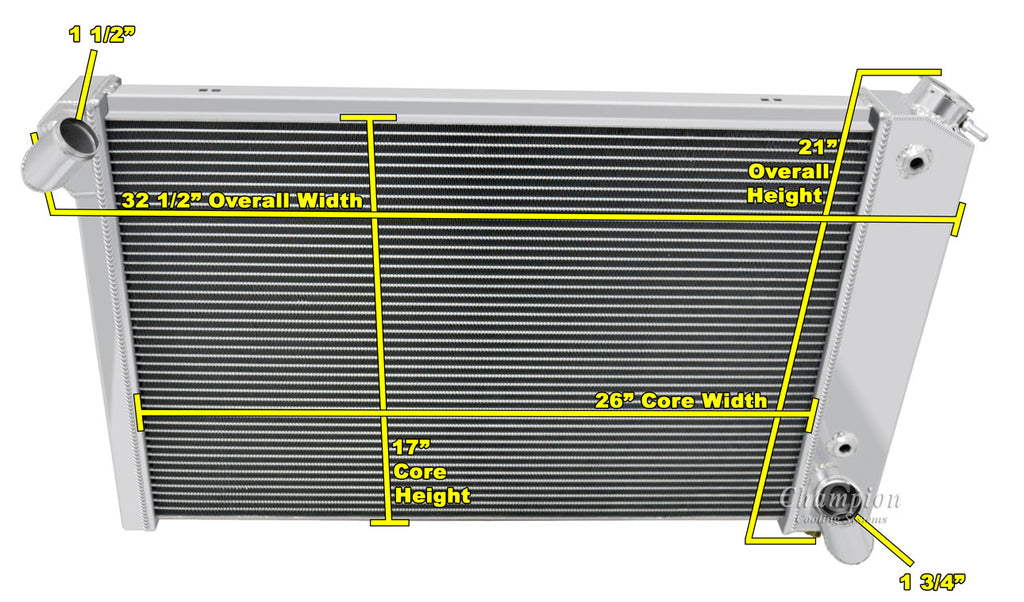

Radiator Dimensions:
Total: 18.5" tall (19.5" incl cap) x 31.63" wide
Core: 17" tall x 26" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.125" thick
Tubes: 0.63" thick
Total Thickness: 6.25"

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included: (1/2-20 Straight Thread, Inverted Flare)
