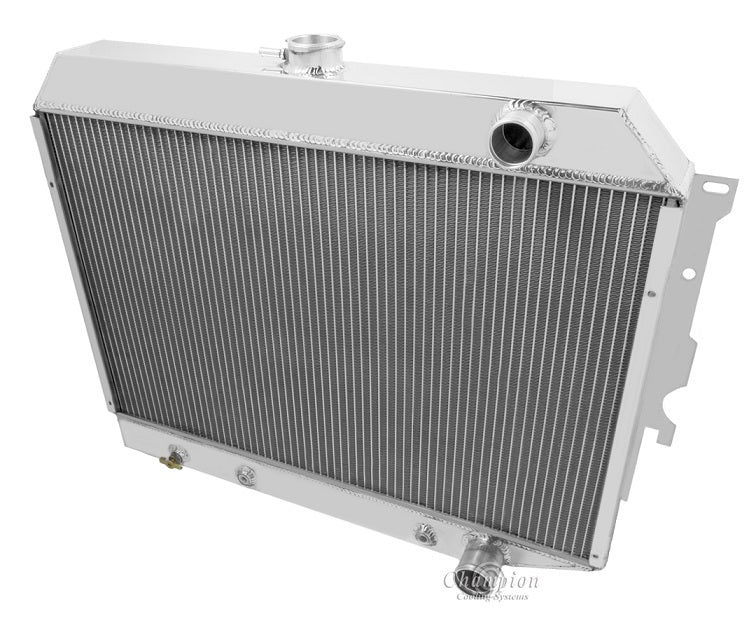

MC1643-1643FS12SP 4 Row Combo

All Aluminum Champion Radiator

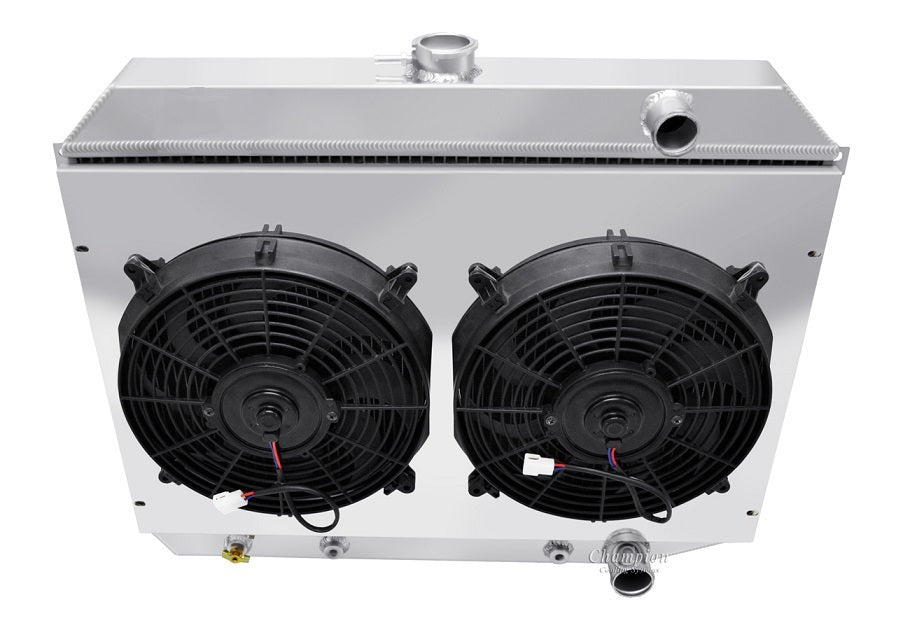

Ledfoot Racing Shroud & Two SPAL-1522 12" Fans
(1000 more CFM than Pro-Series fans)
4-Row Core | Cools up to 750hp

Radiator Dimensions:
Total: 21.25" tall (22.63" with cap) x 29" wide (with brackets)
Core: 16.25" tall x 26" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 3.25" thick
Tubes: 0.75" thick
Total Thickness: 6.83" (6" between fan motors)

Bracket Mounted

Radiator Cap included
Transmission Cooler included (1/8-27NPT)
