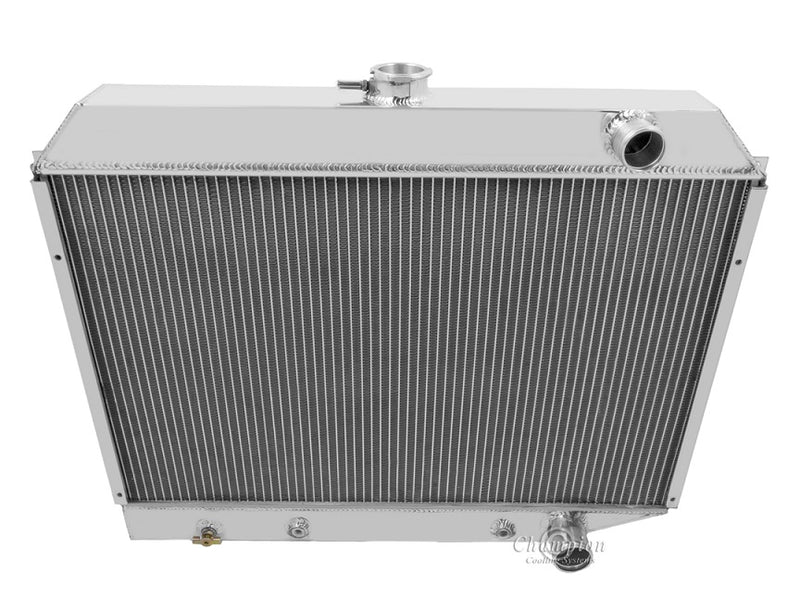

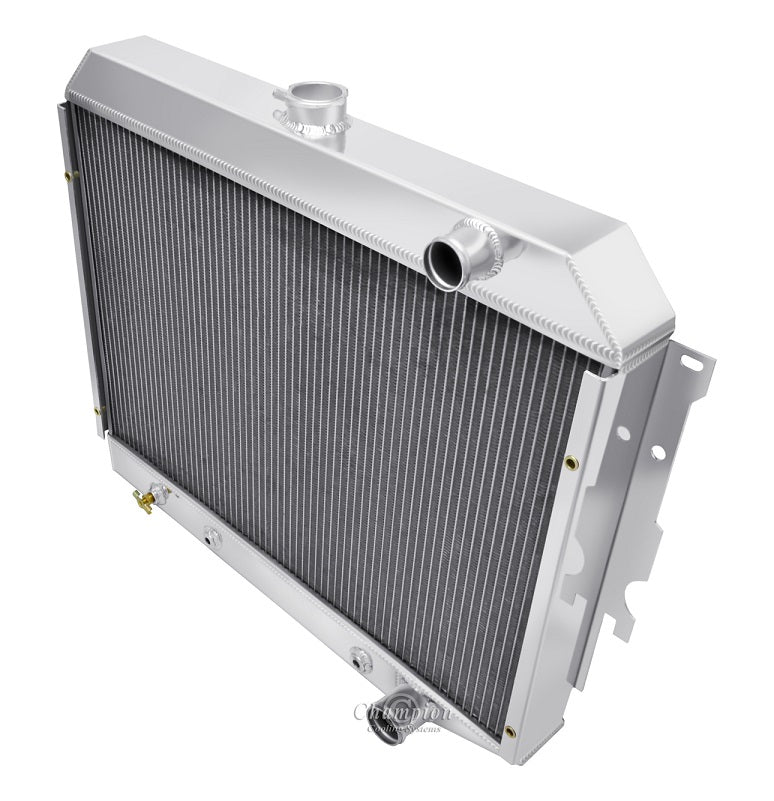

MC1643 4 Row Both Pass Outlets

All Aluminum Champion Radiator
4-Row Core | Cools up to 750hp

Radiator Dimensions:
Total: 21.25" tall (22.63" with cap) x 29" wide (with brackets)
Core: 16.25" tall x 26" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

Radiator Cap included
Transmission Cooler included (1/8-27NPT)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)

Aluminum Fan Shroud is also available (sold separately)
